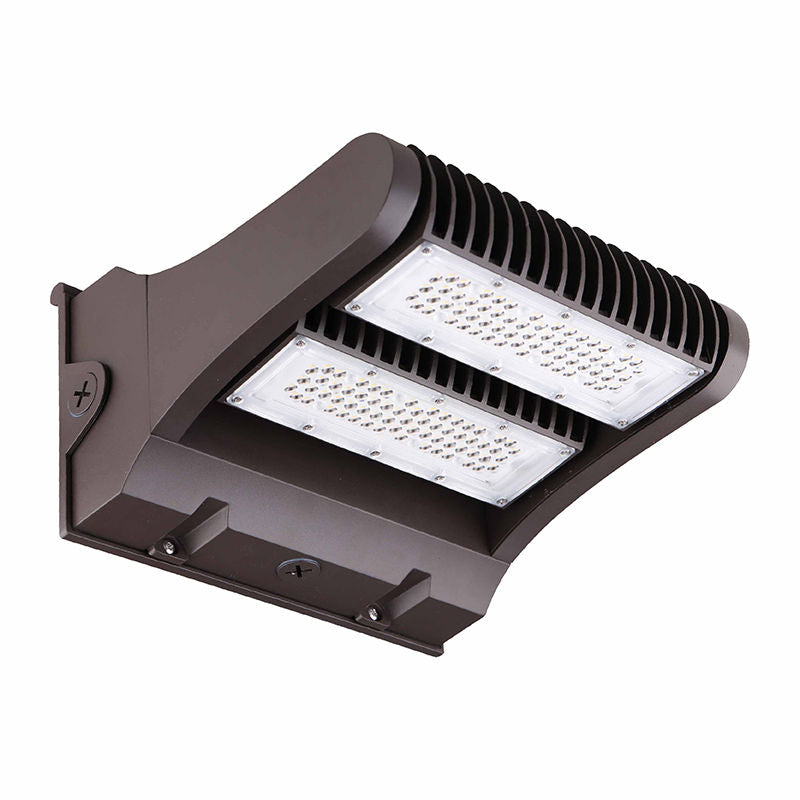

Westgate LW360-G2-SERIES 120W 4000K 2nd Gen LED Rotatable Wall Pack - Dark Bronze

WestgateSKU: LW360-120W-40K-G2

Price:
Sale price$228.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Die-cast Aluminium Housing with Powder Coat Finish (Dark Bronze or White)

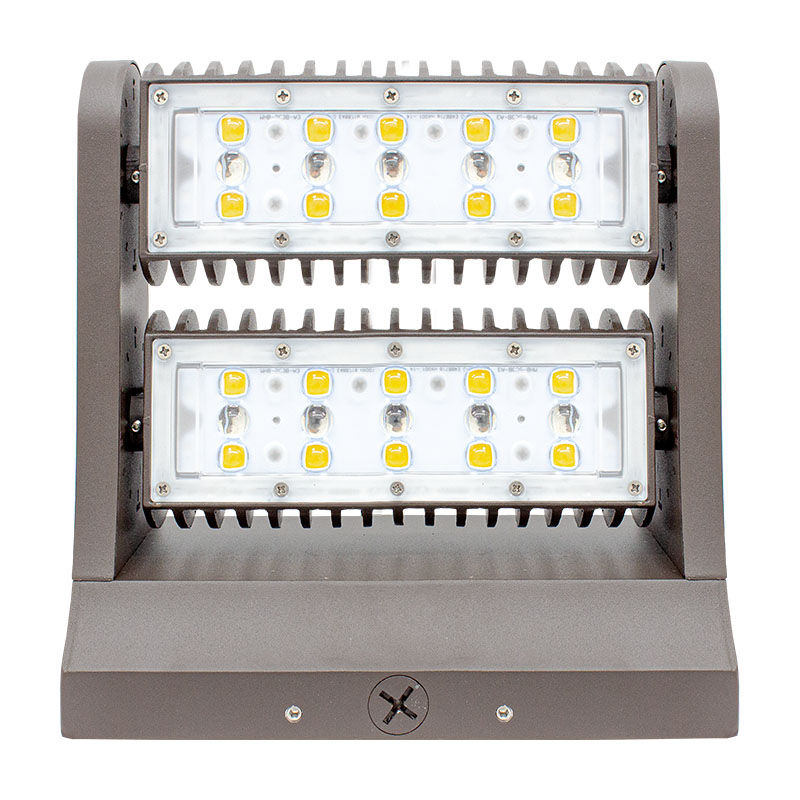

  • 360 Rotatable Heads with set screw

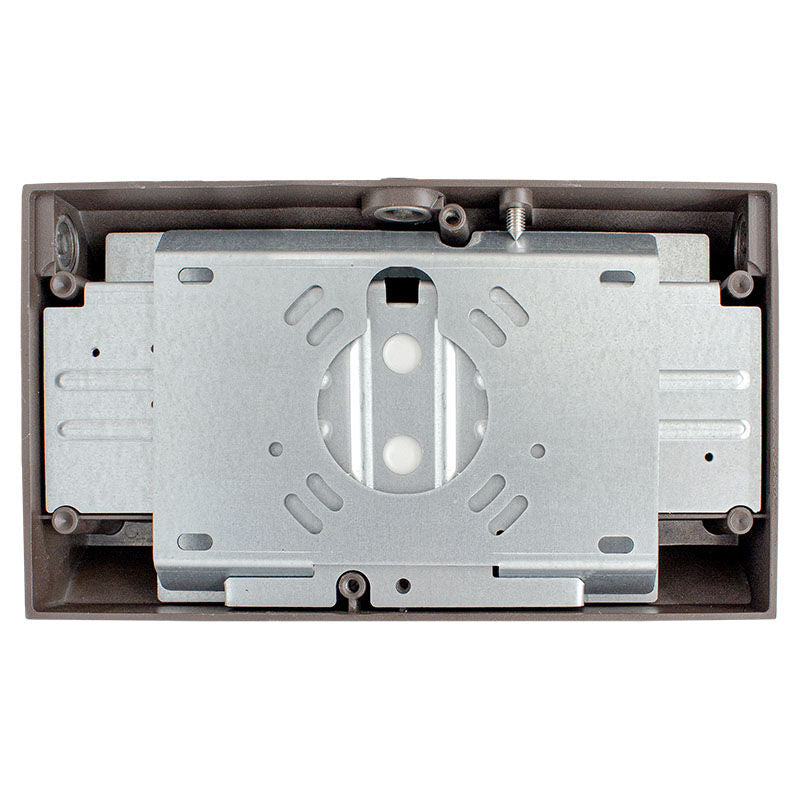

  • Three 1/2" Threaded Knockouts: 1 Bottom, 1 Each Side
  • TIR Optic Lens - Type II
  • Lumens: 3250LM, 5200LM, 7800LM, 8100LM, 15600LM
  • Wattage: 25W, 40W, 60W, 80W, 120W
  • Voltage: 120-277VAC 60Hz
  • Chip: Lumileds LEDs
  • Efficacy: 130LPW
  • Beam Angle: 60
  • Color Rendering Index: CRI ‰¥ 80
  • Power Factor: >0.95
  • Operating Temp: -40F to 104F
  • Lifespan: 70,000 hours
  • 7-year warranty
  • IP Rating: IP65, Wet Locations

Applications

  • Ideal for general site lighting, alleys, loading docks, doorways, pathways and parking areas.

Download PDF File

Catalog Page

Specification

Installation Instructions
