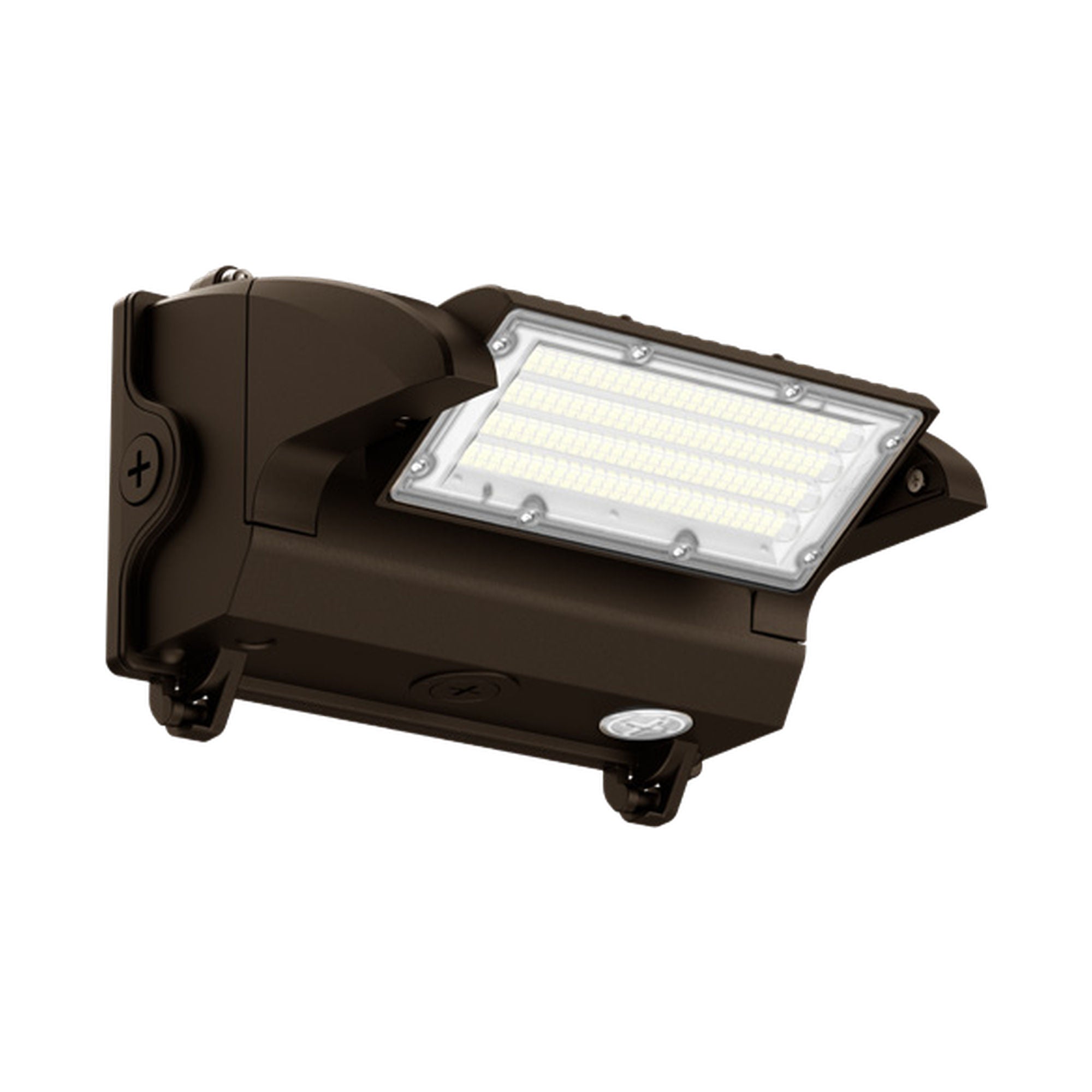

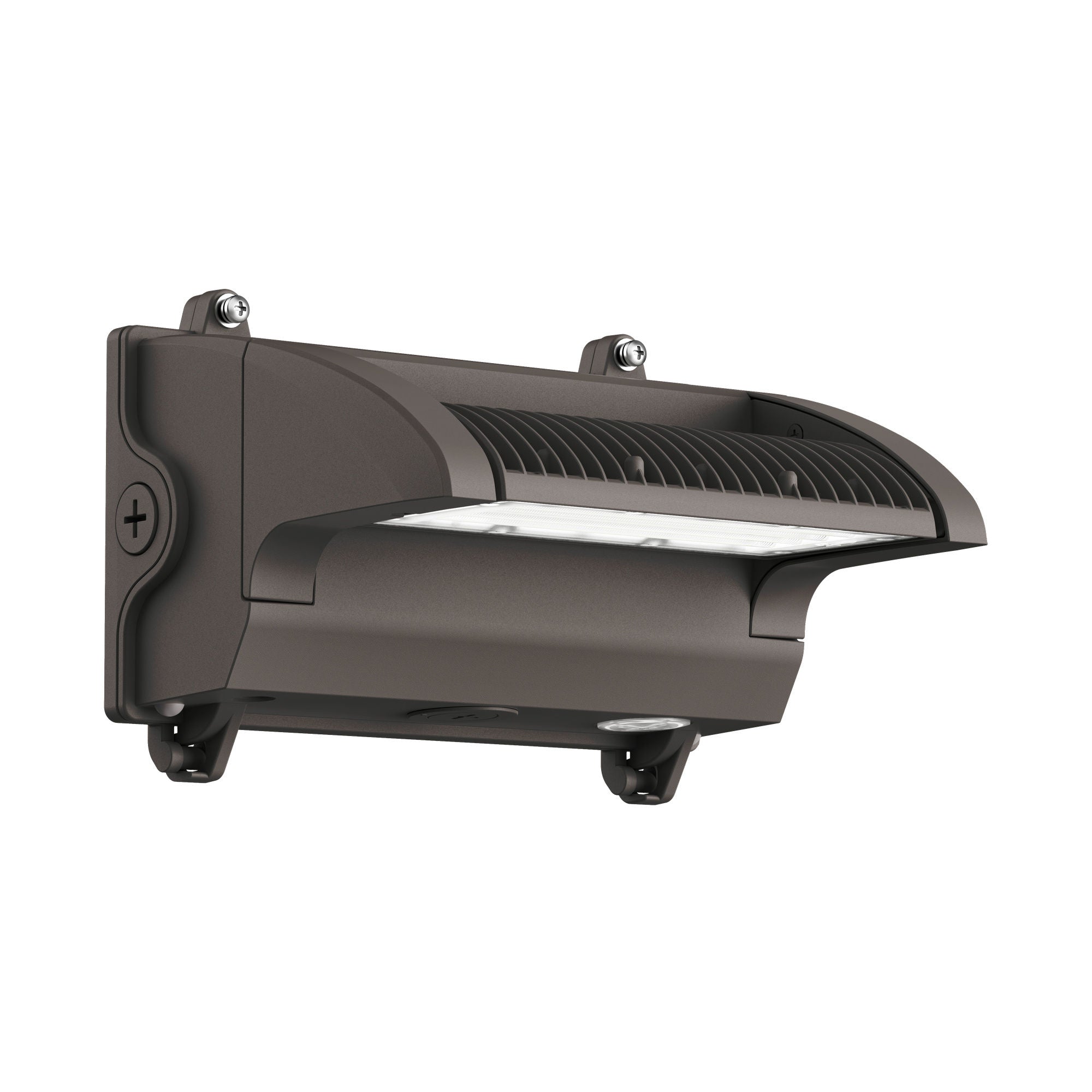

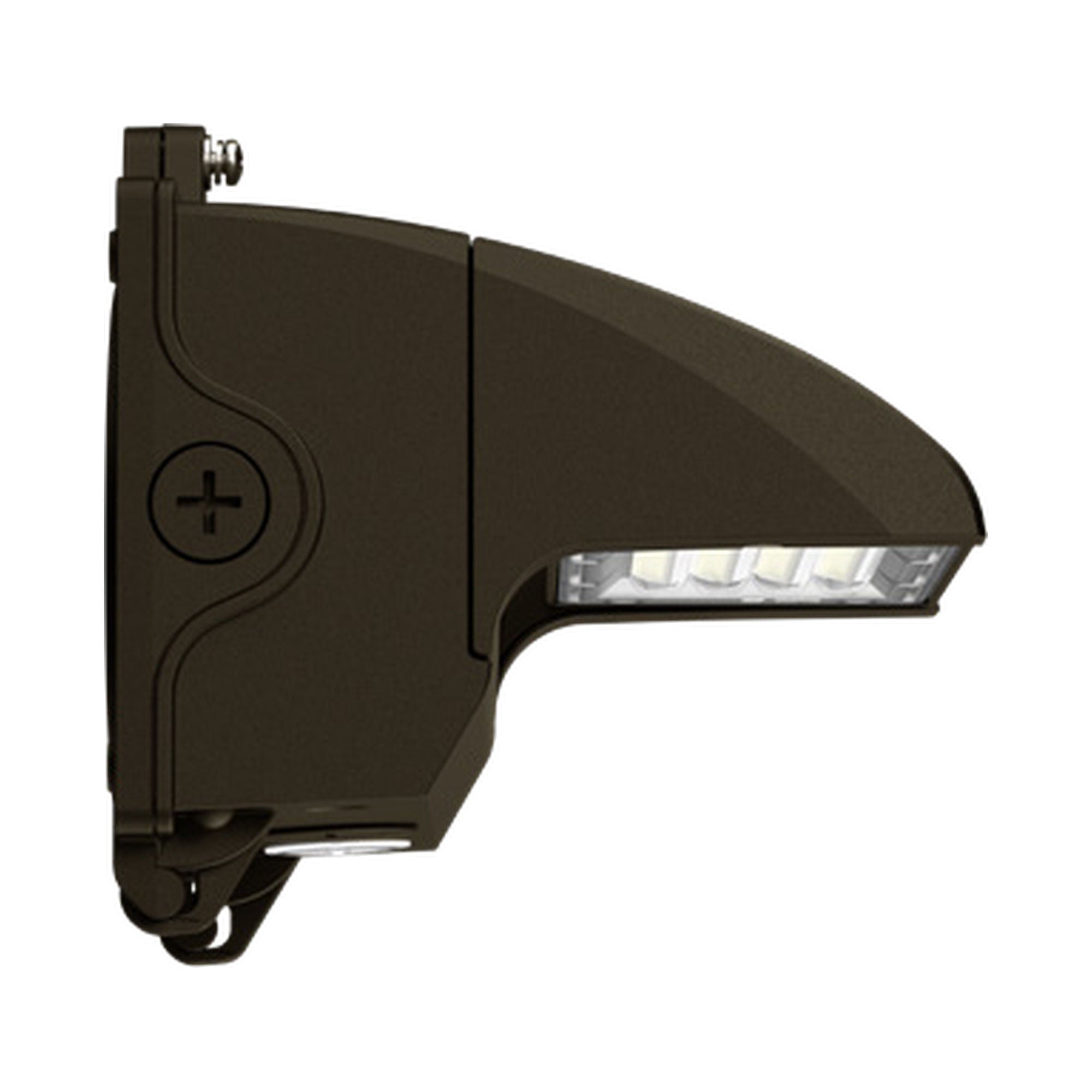

Details of the Westgate LW360-15-40W-MCTP-PSR 15-40W Rotatable LED Wall Pack Photocell Sensor-Ready 3CCT - Bronze

The LW360-15-40W-MCTP-PSR is the standard-output, single-lens member of the LW360 family from Westgate in the default bronze finish, sized for entryways, walkways, and building perimeters that need an aimable wall pack without high output. Its toolless adjustable head directs light where it is wanted, while field-selectable wattage and color temperature, an integrated dusk-to-dawn photocell, and sensor-ready wiring keep it flexible. The bronze finish suits most commercial exteriors. Choose this standard body for lower-output jobs; Westgate offers the high-output LW360-60 body, and black, silver, and white finishes.

Technical Specs

• Fixture type: adjustable-head LED wall pack, photocell and sensor ready

• Body: LW360-15 (standard output, single-lens)

• Input voltage: 120-277 VAC, 50/60 Hz

• Wattage: field-selectable 15W / 25W / 30W / 40W

• Dimension: w-6.3 in x d-9.4 in x h-6.7 in
• Dimming: 0-10V

• Power factor: >=0.90

• THD: <20%

• Lumen output: 2,250LM / 3,750LM / 4,500LM / 6,000LM

• Efficacy: up to 150 LM/W

• Color temperature: 3CCT selectable, 3000K / 4000K / 5000K

• CRI: 80

• LED: SMD2835

• Optic: Type III; adjustable optical assembly for directional illumination

• Lens: polycarbonate, single-lens design

• Photocell: integrated dusk-to-dawn with ON/OFF selector; factory default photocell
• ON, max wattage, 5000K

• Surge protection: 6kV line-to-neutral / 6kV line-to-ground

• Auxiliary output: Class 2 for compatible sensor controls

• Housing: die-cast aluminum, silicone-gasketed, with bottom drain openings

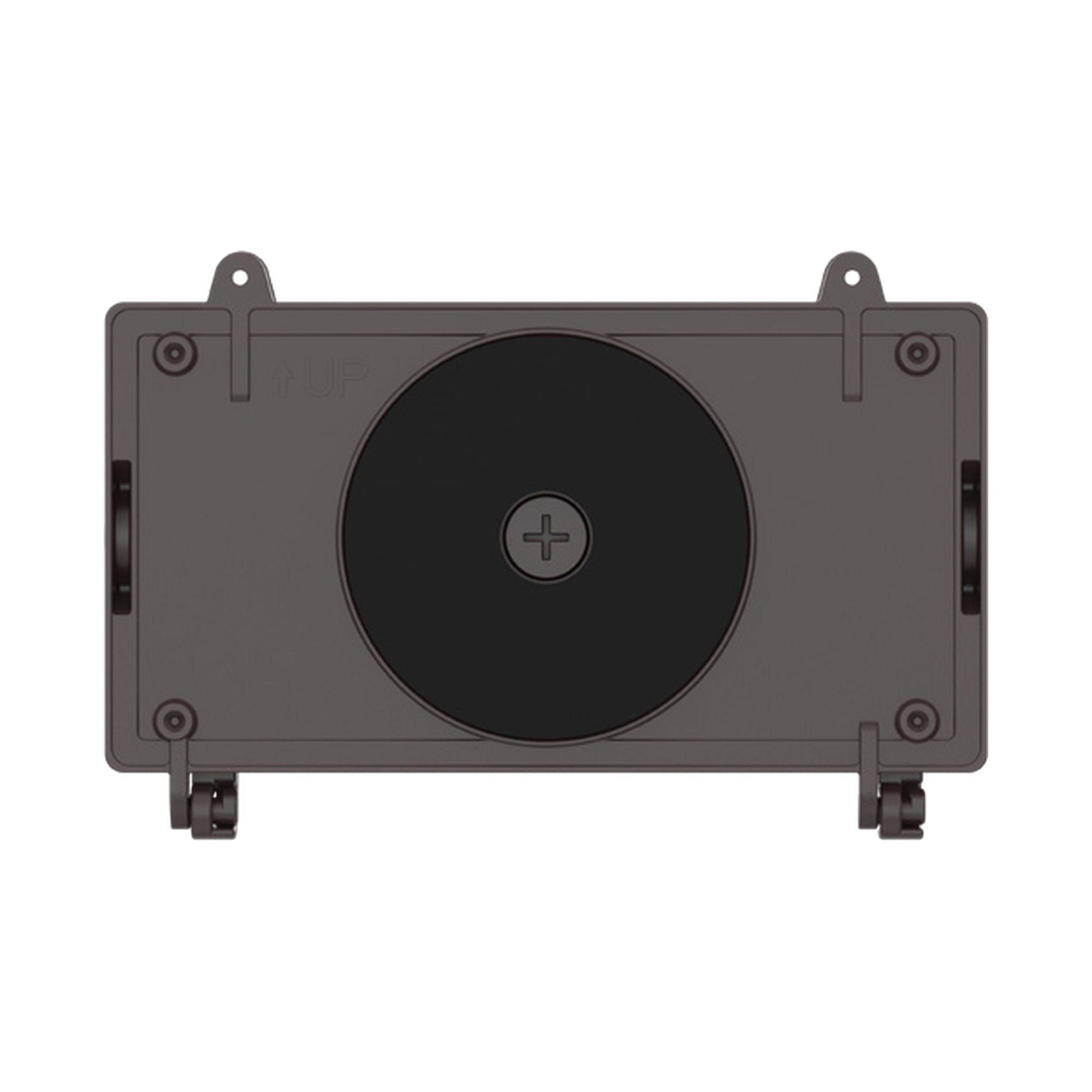

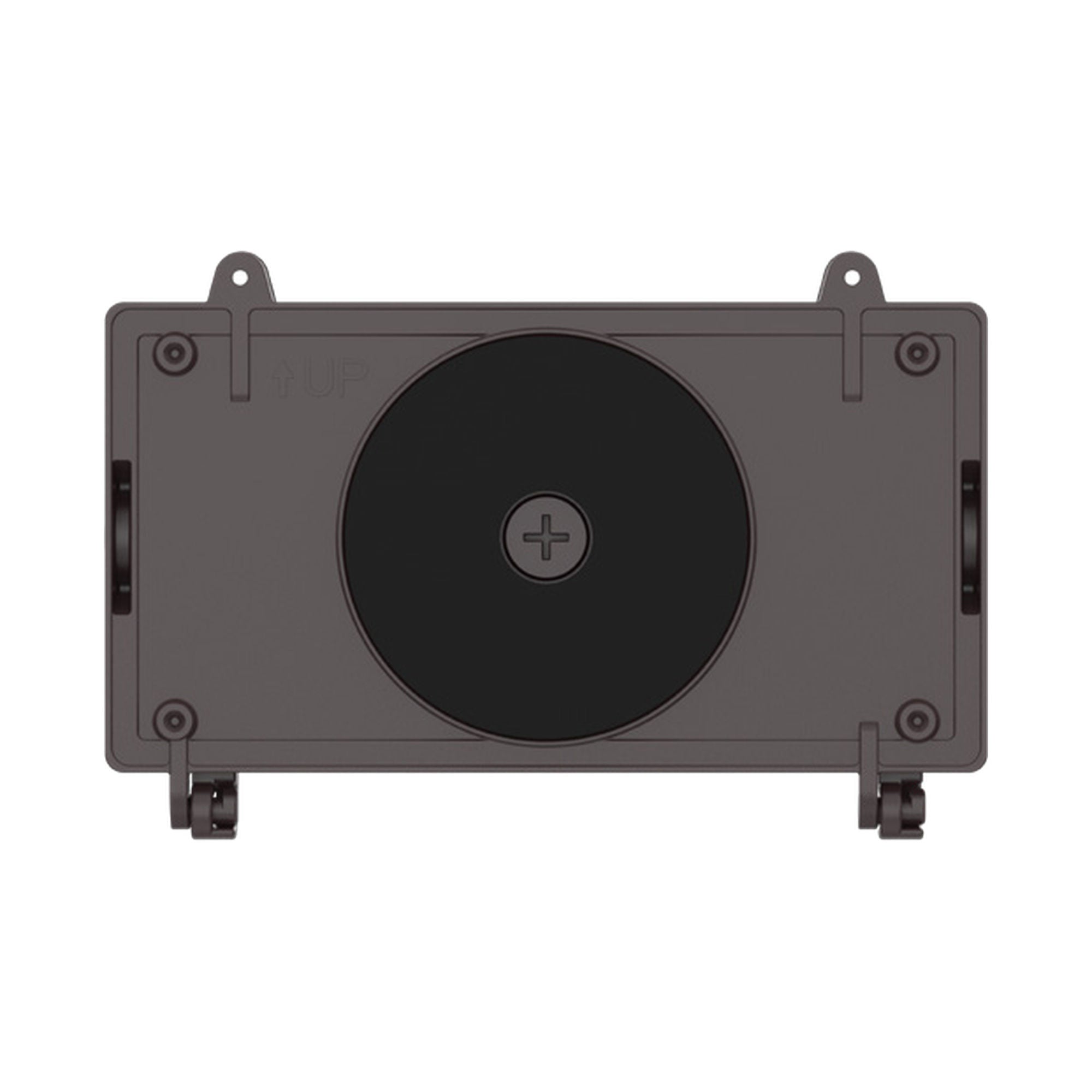

• Mounting: wall mount only; toolless adjustable head; adjustable head range -15-degree to 210-degree; four 1/2-inch knockouts
