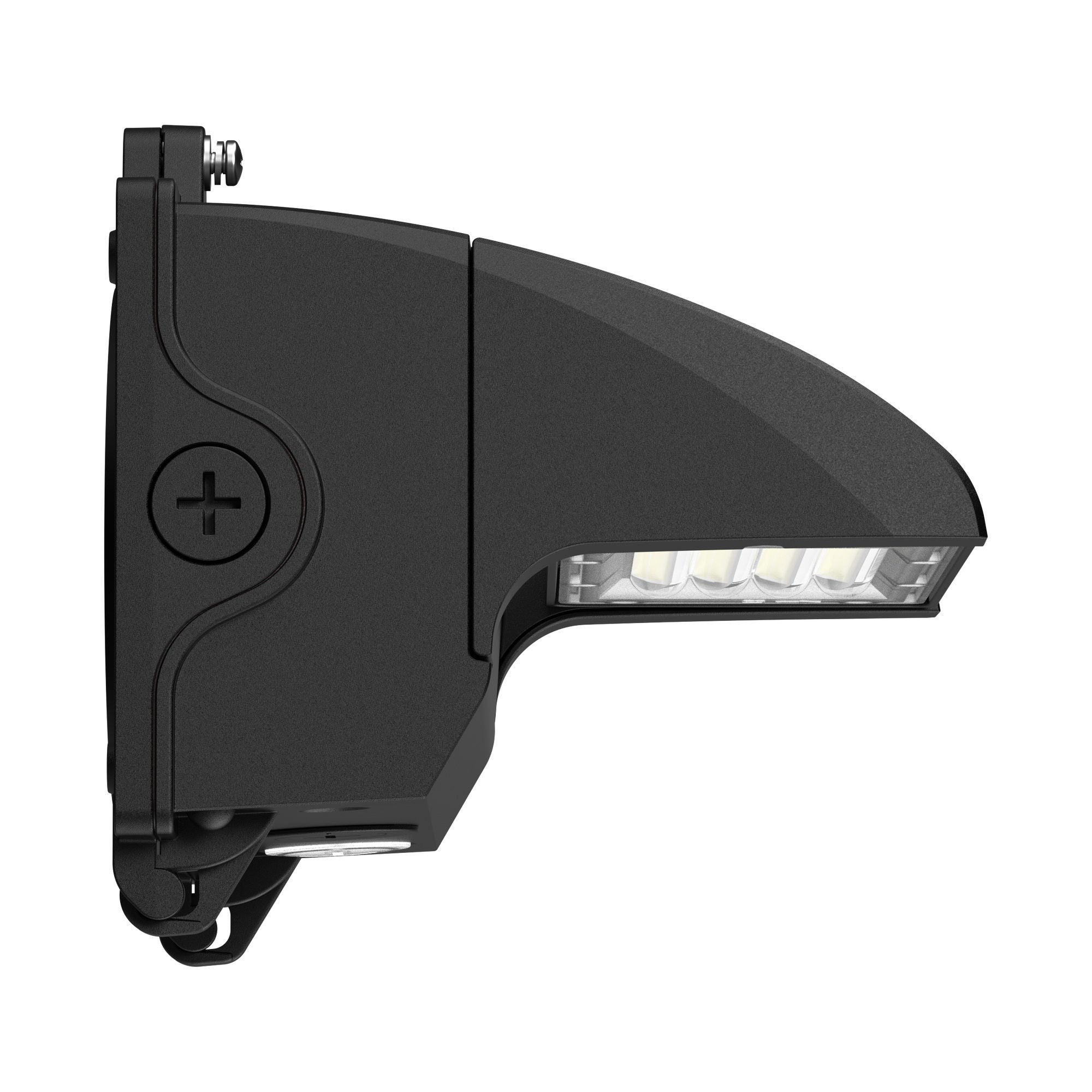

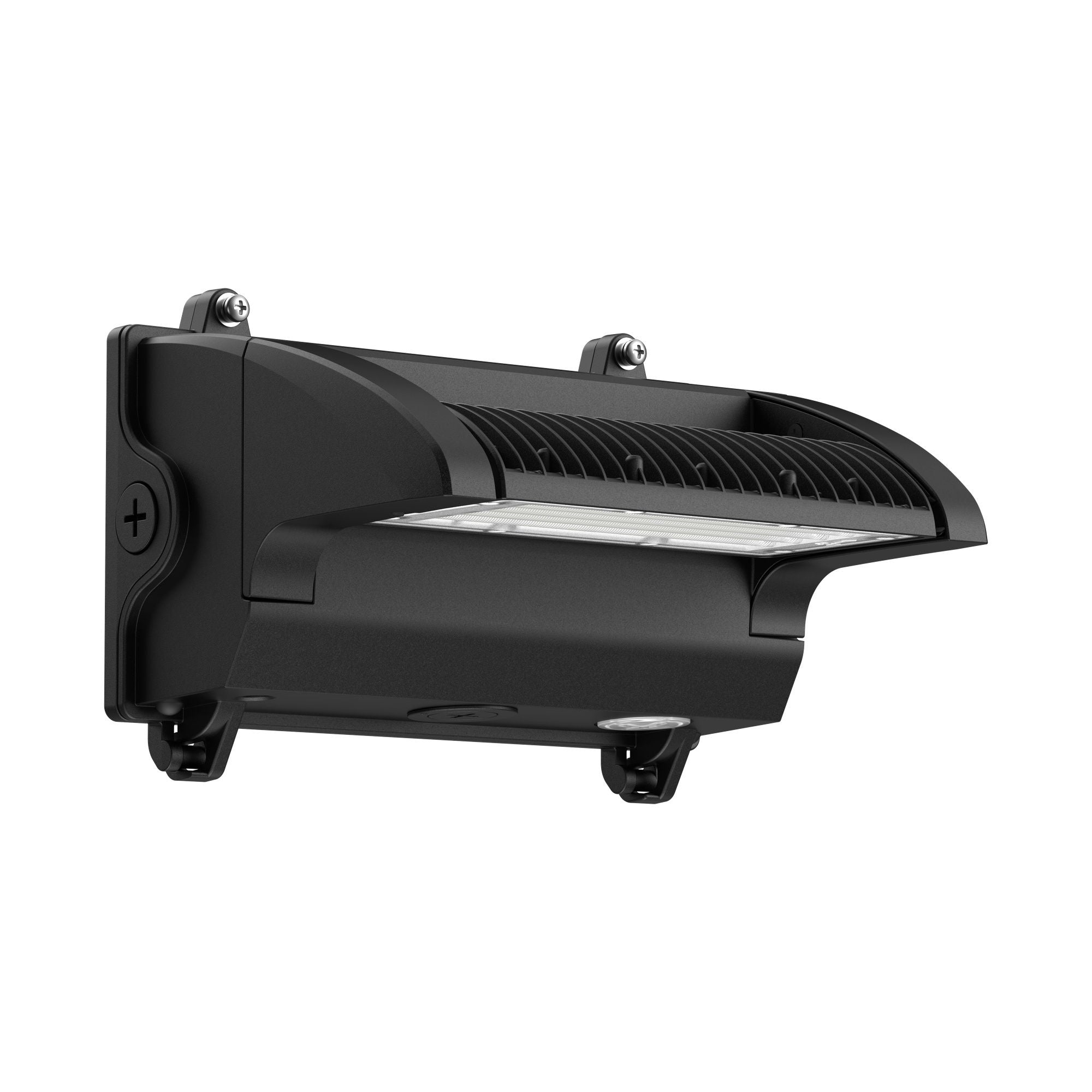

Details of the Westgate LW360-15-40W-MCTP-PSR 15-40W Rotatable LED Wall Pack Photocell Sensor-Ready 3CCT - Black

The LW360-15-40W-MCTP-PSR-BK is the standard-output, single-lens member of the LW360 family from Westgate in a black finish, ideal for modern facades and darker walls where the fixture should read as a crisp accent. Its toolless adjustable head aims light where needed, and field-selectable wattage and color temperature, an integrated dusk-to-dawn photocell, and sensor-ready wiring keep it flexible. Choose black on the standard body for lower-output modern installations; Westgate offers the high-output LW360-60 body, and bronze, silver, and white finishes.

Technical Specs

• Fixture type: adjustable-head LED wall pack, photocell and sensor ready

• Body: LW360-15 (standard output, single-lens)

• Input voltage: 120-277 VAC, 50/60 Hz

• Wattage: field-selectable 15W / 25W / 30W / 40W

• Dimension: w-6.3 in x d-9.4 in x h-6.7 in
• Dimming: 0-10V

• Power factor: >=0.90

• THD: <20%

• Lumen output: 2,250LM / 3,750LM / 4,500LM / 6,000LM

• Efficacy: up to 150 LM/W

• Color temperature: 3CCT selectable, 3000K / 4000K / 5000K

• CRI: 80

• LED: SMD2835

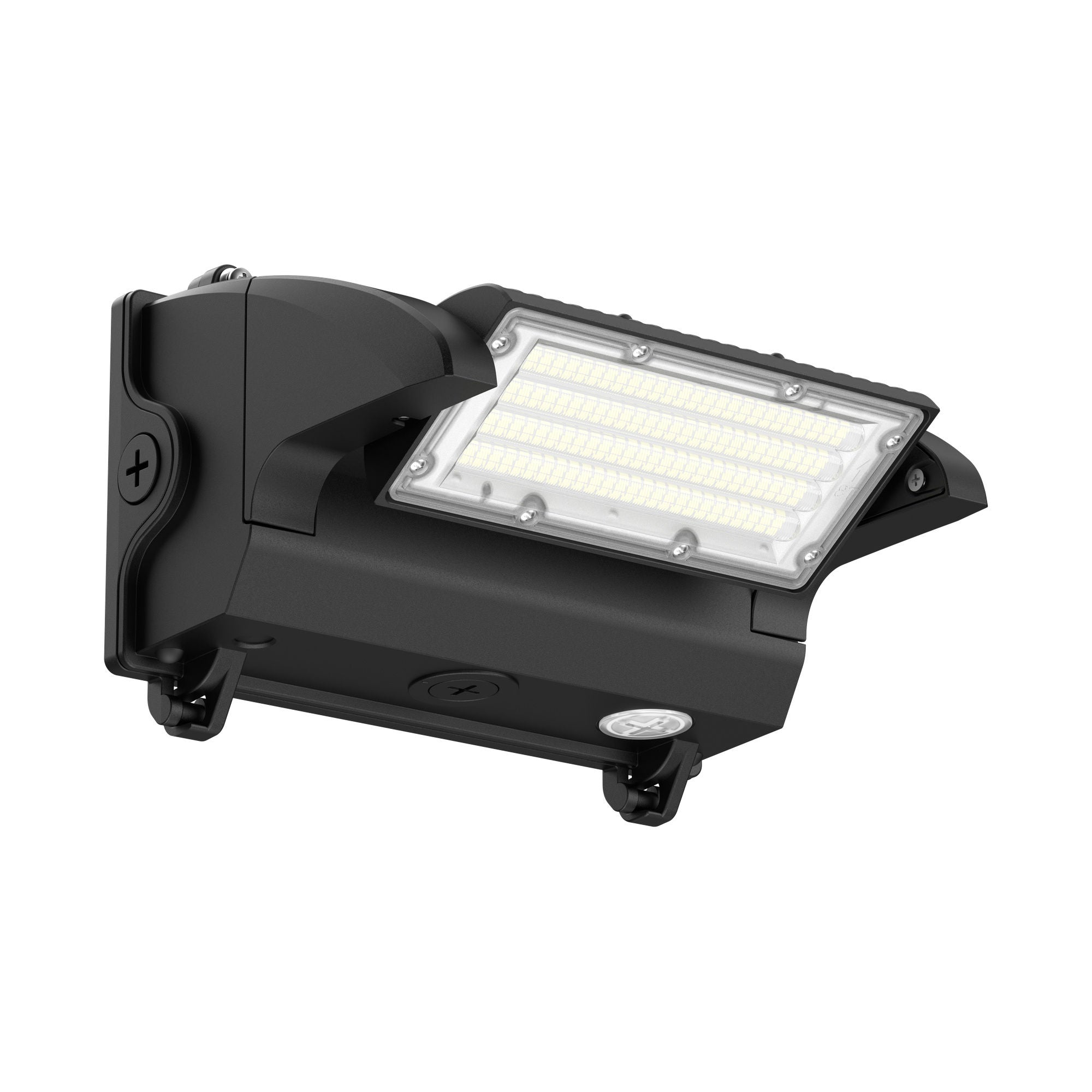

• Optic: Type III; adjustable optical assembly for directional illumination

• Lens: polycarbonate, single-lens design

• Photocell: integrated dusk-to-dawn with ON/OFF selector; factory default photocell
• ON, max wattage, 5000K

• Surge protection: 6kV line-to-neutral / 6kV line-to-ground

• Auxiliary output: Class 2 for compatible sensor controls

• Housing: die-cast aluminum, silicone-gasketed, with bottom drain openings

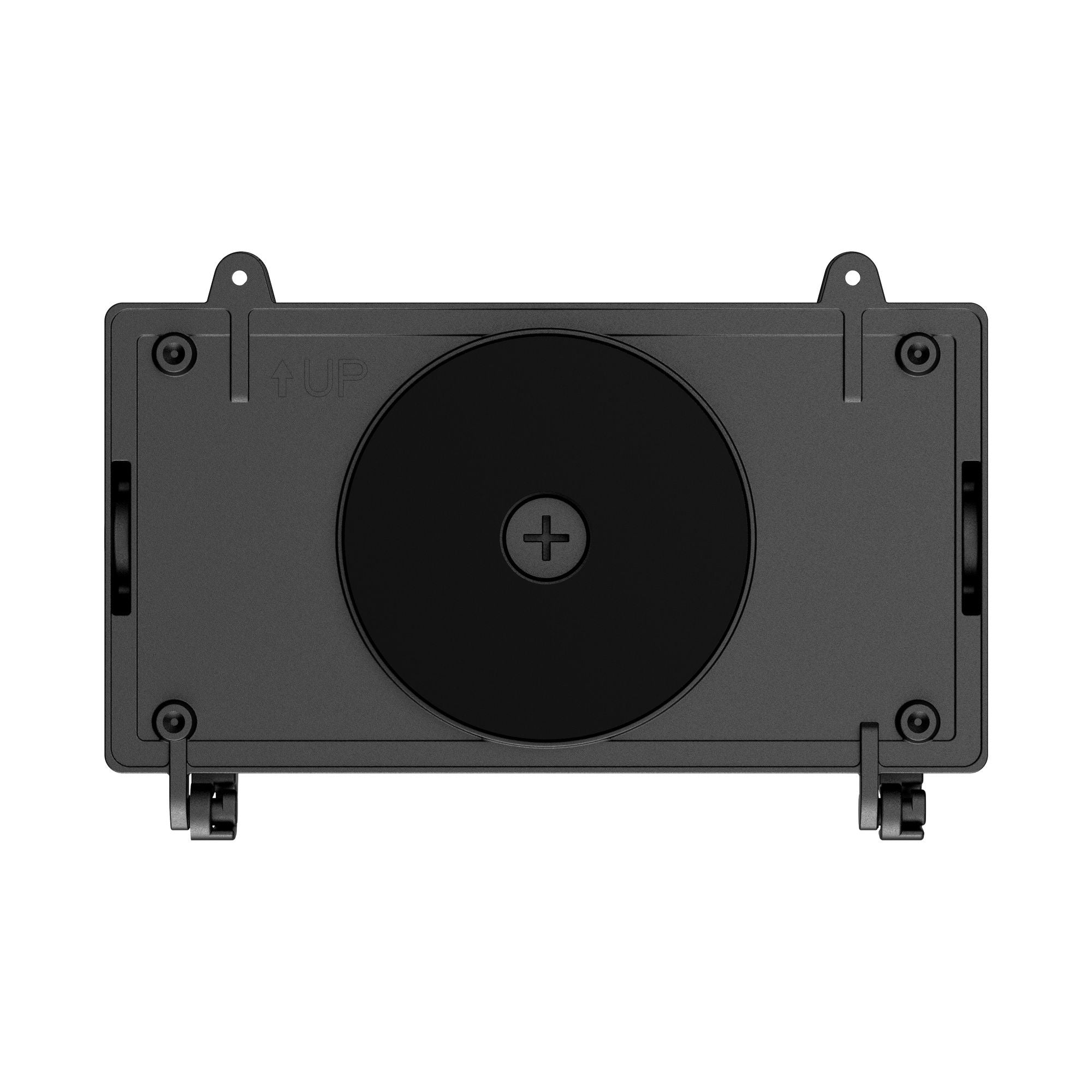

• Mounting: wall mount only; toolless adjustable head; adjustable head range -15-degree to 210-degree; four 1/2-inch knockouts
