Brand: Westgate | Product No: LVTE-8FT-65-110W-MCTP

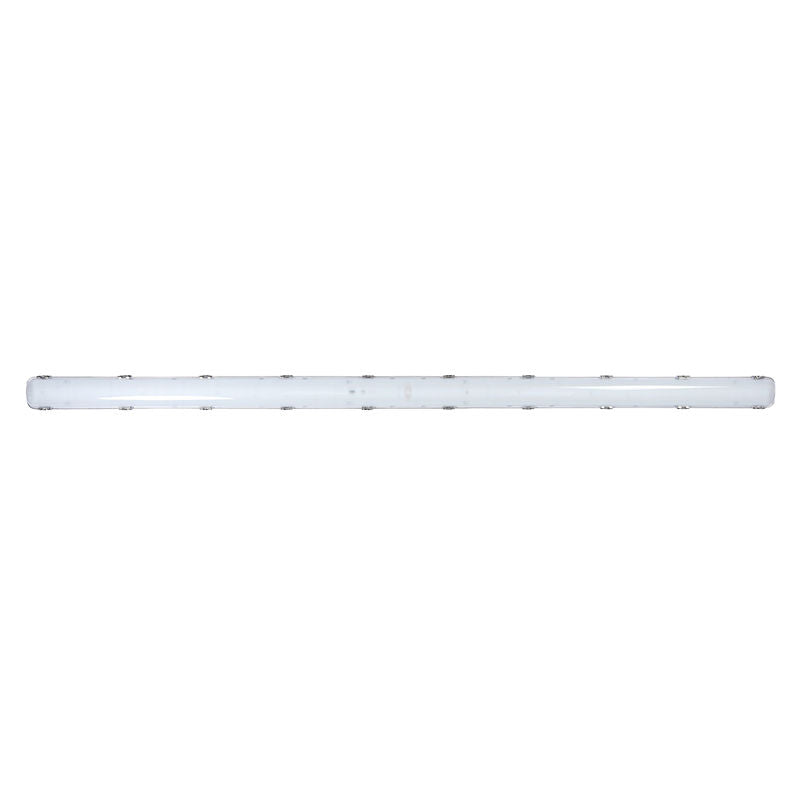

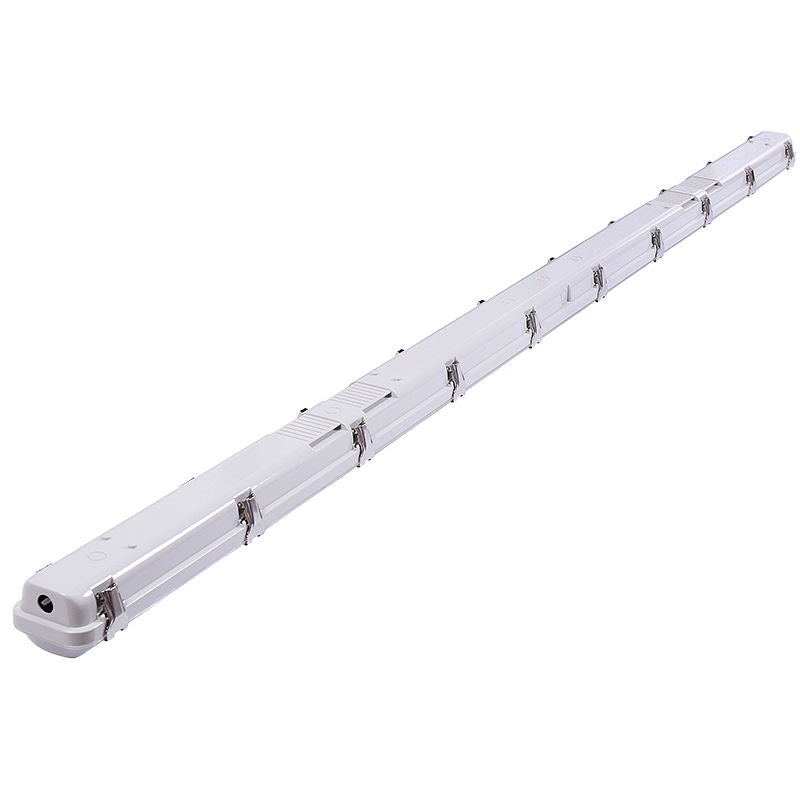

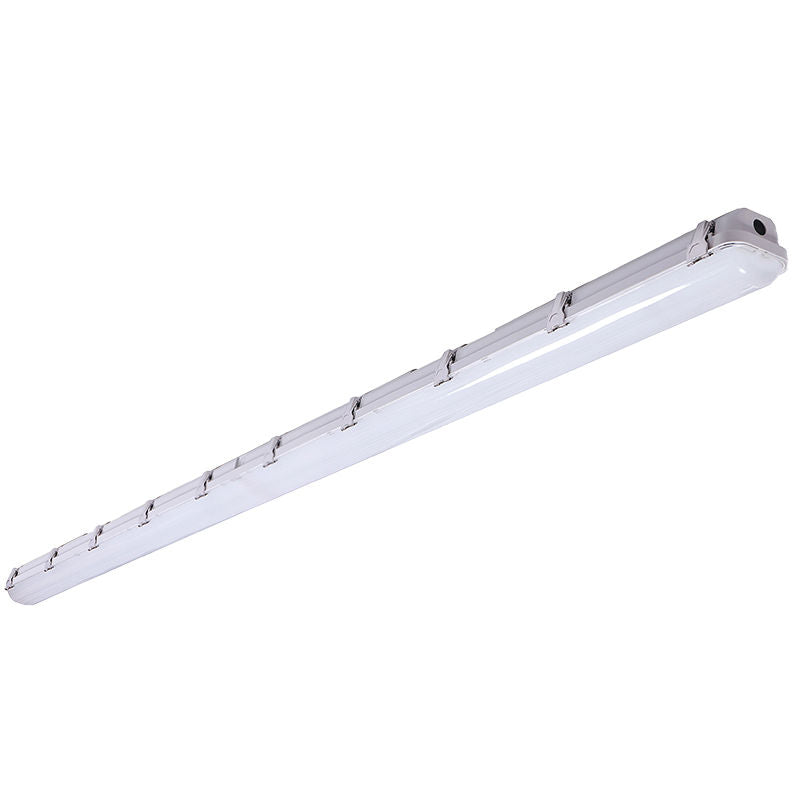

Westgate LVTE-8FT-65-110W-MCTP LED Linear Vapor Light - Grey
Couldn't load pickup availability
Pairs well with
Top-Rated Store • Read Reviews
Fast Shipping • Ships in 1–2 Business Days
30-Day Returns • See Terms
Secure Checkout • SSL Encrypted
Product details
Description
Technical Specs
- Voltage; 120-277VAC 50/60Hz
- Wattage: 15W-180W
- Power Factor: 0.9
- Efficacy: 150LM/W
- Grey Finish
- Housing: Polycarbonate
- Vandal-Proof Polycarbonate Lens
- 1/2" NPT Knockout on both ends. Liquid Tight Cord Connectors Incl.
- Polycarbonate Construction Highly Impacts Resistant
- UV-Stabilized Polycarbonate Diffuser Eliminates Glare
- Diffuser Crystals Enhance Even Light Distribution
- Stainless Steel Clips Evenly Seal The Luminaire
- Stainless Steel Clamp
- Operating Temp: -25.6F to 104F
- Suitable for Wet Locations
- IP Rating: IP66
- Dimmable: 0~10V Dimming
- LED SMD Type: 2835
- Total Lumens: 2100LM-16500LM Max.
- Multi-CCT Power (Selectable Switch Inside Fixture)
- Color Temperatures: 3500K/4000K/5000K
- Color Rendering Index: CRI 80
Applications
- Ideal for offices, retail stores, showrooms, and residential applications. Uniquely suited for areas where accessing the fixture is challenging
- Suitable for restaurants, bakeries, food facilities, gyms, pool areas, and any application where NSF certified fixtures or high-end architectural designer grade fixtures are required
- NSF/ANSI 2:2015 Food Equipment: Splash Zone: Equipment surfaces that are subject to splash and food spillage during operation of the equipment other than those in a direct contact food-zone
