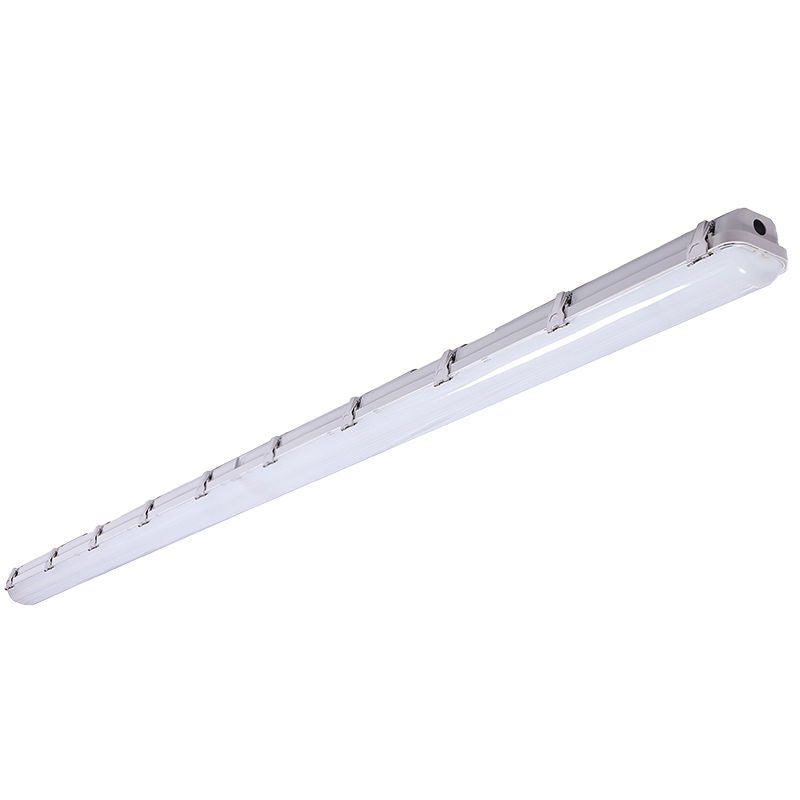

Westgate LVTE - 8FT - 45 - 65W - MCTP - EM - SEN Linear Vapor - Tight Fixtures with Sensor & Emergency Backup, 45W/55W/65W, 35K/40K/50K - White - Sonic Electric
  • Brand: Westgate
  • Product No: LVTE-8FT-45-65W-MCTP-EM-SEN

Westgate LVTE-8FT-45-65W-MCTP-EM-SEN Linear Vapor-Tight Fixtures with Sensor & Emergency Backup, 45W/55W/65W, 35K/40K/50K - White

$334.74

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

Fast & Reliable Shipping

Orders processed in 1–2 business days.

Hassle-Free Returns

30-day returns on eligible items. Read Terms

Knowledgeable Support

Get expert help via chat, email or phone.

Top-Rated Store

Trusted by 20,000+ customers. Read Reviews

Product Details

Description

Technical Specs

  • Voltage: 120-277VAC 50/60Hz
  • Wattage: 45W/55W/65W
  • Power Factor: 0.9
  • Efficacy: 140LM/W
  • Grey Finish
  • Housing: Polycarbonate
  • Vandal-Proof Polycarbonate Lens
  • 1/2� NPT knockout on both ends. Liquid Tight Cord Connectors Incl.
  • Polycarbonate Construction Highly Impacts Resistant
  • UV-Stabilized Polycarbonate Diffuser Eliminates Glare
  • Diffuser Crystals Enhance Even Light Distribution
  • Stainless Steel Clips Evenly Seal The Luminaire
  • Stainless Steel Clamp
  • Operating Temp:-25.6F to 104F
  • Suitable For Wet Locations
  • IP Rating: IP66
  • Detection Range: 17Ft. / 360
  • Mounting Height: 25Ft. Max.
  • DIP Settings switch on The Sensor
  • Optional Remote Control (WEC-3RC)
  • Output Power: 9W
  • Output Voltage: 48V
  • Li-Ion Battery / 90 Minutes Emergency Operation
  • Test Button Installed on The Side of The Fixture
  • Dimmable: 0~10V Dimming
  • LED SMD Type: 2835
  • Total Lumens: 9100LM Max.
  • Multi-CCT Power(Selectable Switch Inside Fixture)
  • Colo

Applications

  • Ideal for offices, retail stores, showrooms, and residential applications. Uniquely suited for areas where accessing the fixture is challenging
  • Suitable for restaurants, bakeries, food facilities, gyms, pool areas, and any application where NSF certified fixtures or high-end architectural designer grade fixtures are required.
  • NSF/ANSI 2:2015 Food Equipment: Splash Zone: Equipment surfaces that are subject to splash and food spillage during operation of the equipment other than those in a direct contact food-zone

Download PDF File

Specification

Installation Instructions
