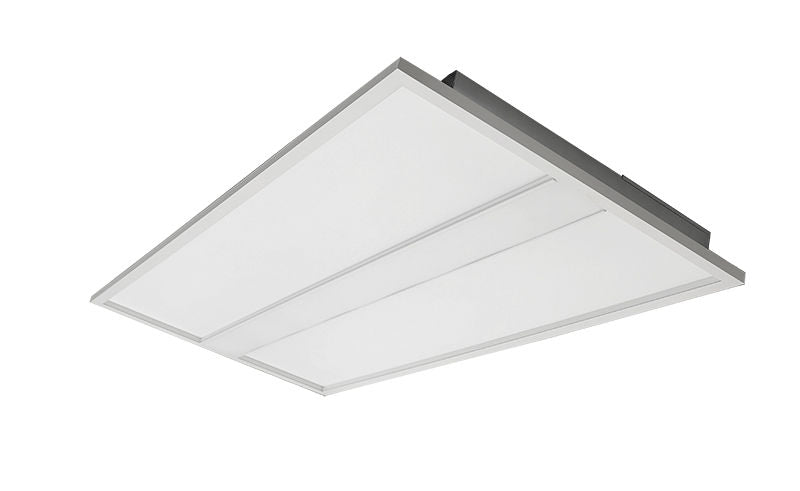

Westgate LTRB-2X4-MCTP LED Multi Power & CCT Back-Lit Troffer - White

WestgateSKU: LTRB-2X4-MCTP

Price:
Sale price$ 127.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • NO PARTIAL PACKS QTY: 4PCS MASTER CARTON
  • Voltage: AC120V-277V 50/60Hz
  • Power Factor: >0.90
  • Wattage: 20W-50W
  • Efficacy: 110-130LPW
  • Fixture Operating Voltage: 36VDC
  • Rated Input Current (mA): 420/337/253/168mA
  • Total Harmonic Distortion: ≤20%
  • White Finish
  • Earthquake Hooks and Suspension Hooks pre-installed
  • External driver mounted on top
  • Operating Temperature: -68ºF~104ºF
  • IP Rating: IP20 (Indoor use only)
  • Rated Life: 50,000 hrs
  • Dimmable: 0~10V Dimming
  • Total Lumens: 2200LM-5500LM
  • Color Temperatures: 3500K/4000K/5000K
  • Multi CCT & Multi Power (Selectable switch on the back of fixture)
  • Color Rendering Index: CRI ≥ 80
  • 5-Year Warranty
  • Beam Angle: 110°

Applications

  • It is ideal for hotels, offices, retail outlets, restaurants, parking garages, storage rooms, conference rooms, education facilities and more.
