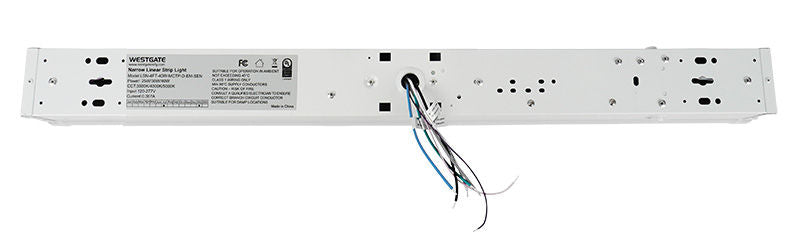

Westgate LSN-8FT-80W-MCTP-D-EM-SEN Builder 8ft Narrow Strip Light With EM & Sensor - White
Westgate LSN-8FT-80W-MCTP-D-EM-SEN Builder 8ft Narrow Strip Light With EM & Sensor - White
Westgate LSN-8FT-80W-MCTP-D-EM-SEN Builder 8ft Narrow Strip Light With EM & Sensor - White
  • Brand: Westgate
  • Part #: LSN-8FT-80W-MCTP-D-EM-SEN

Westgate LSN-8FT-80W-MCTP-D-EM-SEN Builder 8ft Narrow Strip Light With EM & Sensor - White

Sale price$163.74Regular price $260.78

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

Fast & Reliable Shipping

Orders processed in 1–2 business days.

Hassle-Free Returns

30-day returns on eligible items. Read Terms

Knowledgeable Support

Get expert help via chat, email or phone.

Top-Rated Store

Trusted by 20,000+ customers. Read Reviews

Product Details

Description

Technical Specs

  • Voltage: 120-277VAC 60Hz
  • Wattage: 80W
  • Power Factor: 0.99
  • Efficacy: 130 LPW
  • White Finish
  • Bi-Level Microwave Motion Sensor Inside the Fixture Under the Lens
  • Lens: Polycarbonate Frosted Lens, Shatter Resistant
  • Translucent Lens Caps Illuminate with the Light
  • Integrated Lens LED Module for Easy Installation Maintenance
  • Ceiling Mount or Suspended Mount
  • Junction Box Cover Kit Included, it Sitd on Any 3" or 4" Round Junction Boxes
  • Operating Temperature: -4F -122F
  • Housing: Cold-rolled Steel
  • Lens: Polycarbonate Frosted Lens
  • IP20, Indoor Use Only
  • 5-Year Warranty Sensor Spec:
  • Detection Range: 17Ft. / 360
  • Mounting Height: 25 ft. Max.
  • DIP Settings switch on the sensor
  • Optional Remote Control (WEC-3RC) Emergency Battey Backup Spec:
  • Output Power: 9W
  • Output Voltage: 48V
  • Li-Ion Battery/90 Minutes Emergency Operation
  • Test Button Installed on the side of the fixture Lighting:
  • MCTP: Multi Color Temperature Power (Selecctable
    Switch Inside Fixture)

Applications

  • LED Strip Light is a cost-effective, energy-efficient lighting fixture for surface mount applications such as corridors, stairwells, public rooms, schools, hospitals, utility areas, etc.
  • Ideal for applications requiring fixtures with motion sensors or battery backup, see factory-installed options below
  • Ideal for residential, commercial, and industrial light
  • Steady performance and long lifetime

Download PDF File

Catalog Page

Specification

Installation Instructions
