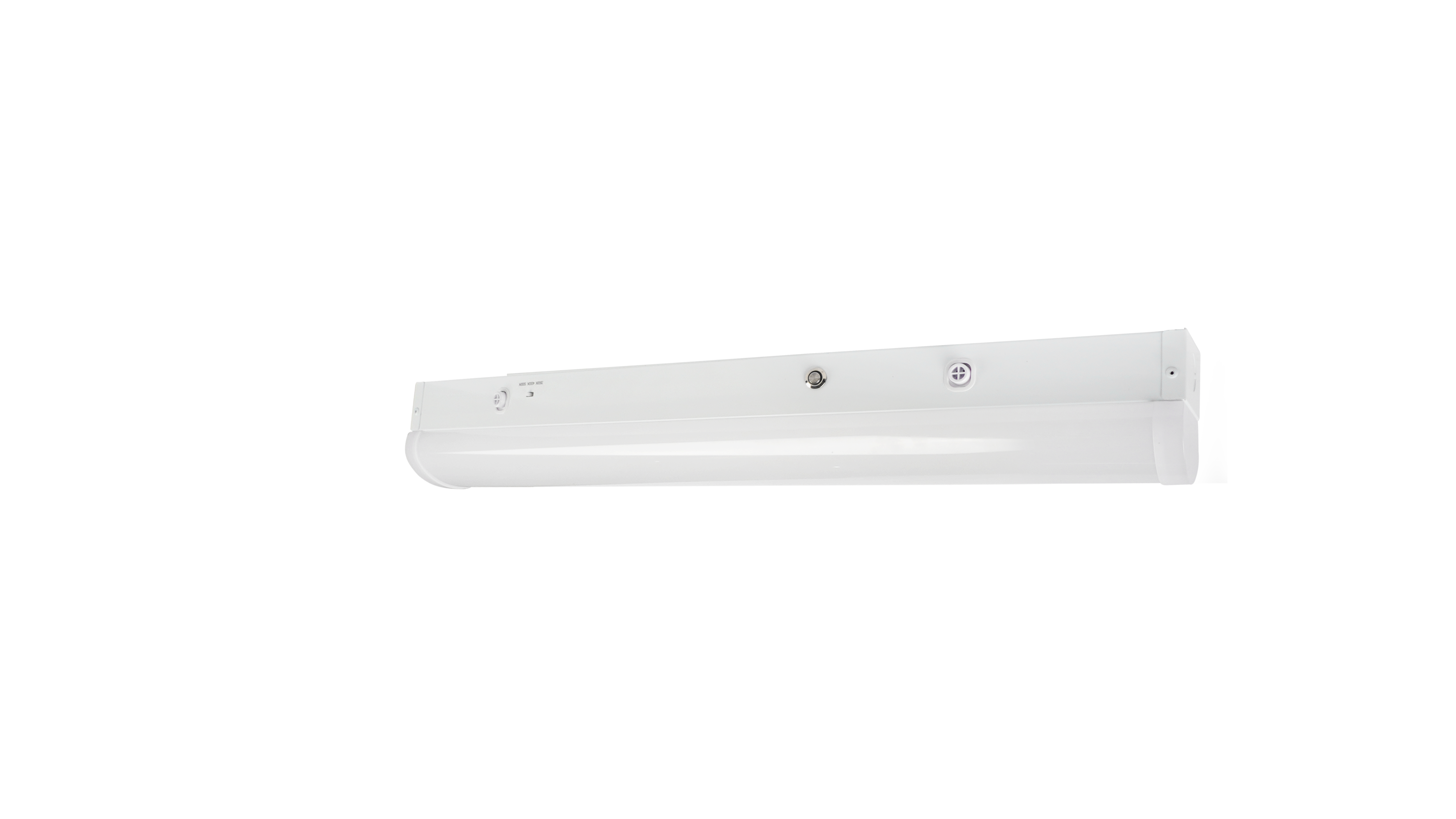

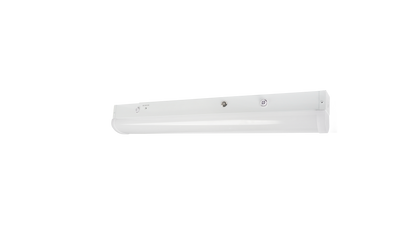

Westgate LSN-2FT-20W-MCT-D-EM-SEN Builder 2ft Narrow Strip Light With EM & Sensor - White

WestgateSKU: LSN-2FT-20W-MCT-D-EM-SEN

Price:
Sale price$128.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Voltage: 120-277VAC 60Hz
  • Wattage: 20W
  • Power Factor: >0.99
  • Efficacy: 130 LPW
  • White Finish
  • Bi-Level Microwave Motion Sensor Inside the Fixture Under the Lens
  • Lens: Polycarbonate Frosted Lens, Shatter Resistant
  • Translucent Lens Caps Illuminate with the Light
  • Integrated Lens & LED Module for Easy Installation & Maintenance
  • Ceiling Mount or Suspended Mount
  • Junction Box Cover Kit Included, it Sits on any 3" or 4" Round Junction Boxes
  • Operating Temperature: -4ºF -122ºF
  • Housing: Cold-rolled Steel
  • Lens: Polycarbonate Frosted Lens
  • IP20, Indoor Use Only
  • 5-Year Warranty Sensor Spec:
  • Detection Range: 17Ft./360
  • Mounting Height: 25 ft. Max.
  • DIP Settings Switch on the Sensor
  • Optional Remote Control (WEC-3RC) Emergency Battery Backup Spec:
  • Output Power: 9W
  • Output Voltage: 48V
  • Li-Ion Battery/ >90 Minutes Emergency Operation
  • Test Button Installed on the Side of the Fixture Lighting:
  • Dimmable: 0~10V Dimming
  • Total Lumens: 2

Applications

  • LED Strip Light is a cost-effective, energy-efficient lighting fixture for surface mount applications such as corridors, stairwells, public rooms, schools, hospitals, utility areas, etc.
  • Ideal for applications requiring fixtures with motion sensors or battery backup, see factory-installed options below
  • Ideal for residential, commercial, and industrial light
  • Steady performance and long lifetime

Download PDF File

Catalog Page

Specification

Installation Instructions
