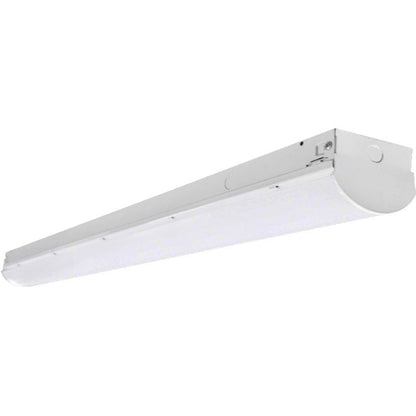

Westgate LSL-4FT-40W-MCT-D-EM-SEN LED Strip Light - White

WestgateSKU: LSL-4FT-40W-MCT-D-EM-SEN

Price:
Sale price$195.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Voltage: 120-277VAC 60Hz
  • Wattage: 40W
  • Power Factor: >0.99
  • Efficacy: 105 LPW
  • White Finish
  • Bi-Level Microwave Motion Sensor Inside the Fixture Under The Lens.
  • Lens: Polycarbonate Frosted Lens, Shatter Resistant
  • Translucent Lens Caps Illuminate With The Light.
  • Integrated Lens & LED Module for Easy Installation & Maintenance.
  • Ceiling Mount or Suspended Mount
  • Junction Box Cover Kit Included, It Sits on Any 3€� or 4€� Round Junction Boxes
  • Operating Temperature: -4ºF -122ºF
  • Housing: Cold-rolled Steel
  • Lens: Polycarbonate Frosted Lens
  • IP44 Suitable For Damp Location
  • 5-Year Warranty
  • Detection Range: 17Ft. / 360
  • Mounting Height: 25 ft. Max.
  • DIP Settings switch on The Sensor
  • Optional Remote Control (WEC-3RC)
  • Output Power: 9W
  • Output Voltage: 48V
  • Li-Ion Battery: >90 Minutes Emergency Operation
  • Test Button Installed on The Side of The Fixture
  • MCT: Multi Color Temperature (Selectable Switch Inside Fixture)
  • Dimmable: 0~10V Dim

Applications

  • LED Strip Light is a cost-effective, energy-efficient lighting fixture for surface mount applications such as corridors, stairwells, public rooms, schools, hospitals utility areas, etc.
  • Ideal for applications requiring fixtures with motion sensors or battery backup, see factory-installed options below
  • Ideal for residential, commercial, and industrial lighting. Steady performance and long lifetime.

Download PDF File

Catalog Page

Specification

Installation Instructions
