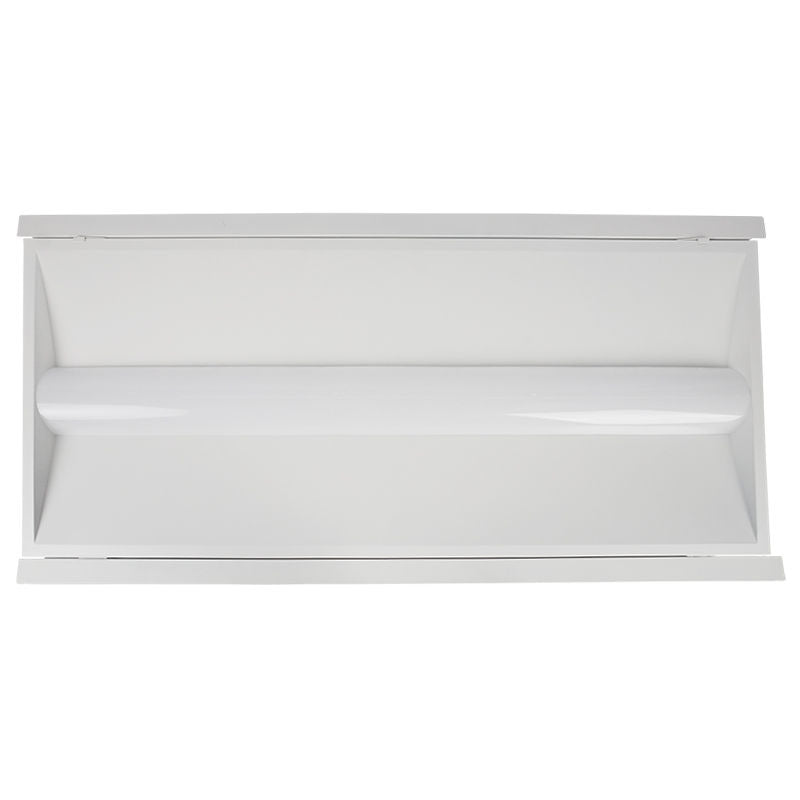

Westgate LRT-HL-2X4-MCTP Premium High-Lumen Retrofit Troffer Light - White

WestgateSKU: LRT-HL-2X4-MCTP

Price:
Sale price$97.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Voltage: 120-277VAC 50/60Hz
  • Wattage: 30W/40W/50W
  • Power Factor: >0.97
  • Efficacy:125 LPW
  • White Finish
  • Galvanized Steel Construction

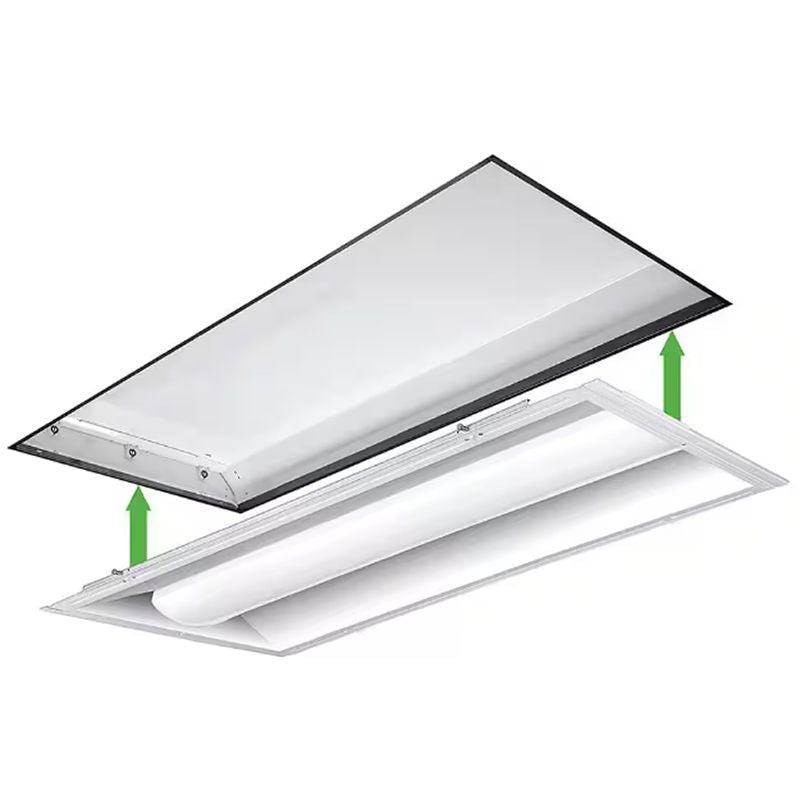

  • Integrated Securement Tabs for Securement to Existing Troffer Housing.
  • Minimum Depth of only 3€� Necessary To Allow Proper Clearance And Installation
  • Retrofit Kit Is Powder Coated After Fabrication With High Quality, Durable Finish To Ensure No Unfinished Edges And Avoid Future Potential Of Corrosion.
  • Components Fit Together Easily Without The Need For Tools During Installation. in addition the light module Can Be Removed From Below The Ceiling For Continent Maintenance And Upgrades
  • Operating Temperature: -4F ~ 122F
  • 5-Year Warranty
  • Multi CCT & Power (Selectable Switch On Back Of Fixture)
  • Dimmable: 0~10V Dimming
  • LED Type: SMD 2835
  • Total Lumens: 3750LM/5000LM/6250LM
  • Color Rendering Index: CRI ‰¥ 80
  • Color Temperatures: 3500K/4000K/5000K
  • Rated Life: 50,000 Hours

  Applications

  • Elevate your lighting experience with the Westgate LED Retrofit Troffer €“ a perfect blend of innovation, efficiency, and reliability. Designed to seamlessly fit into existing troffer installations, this retrofit solution transforms traditional lighting systems into energy efficient, cost-effective lighting with minimal effort.

Download PDF File

Catalog Page

Specification

Installation Instructions
