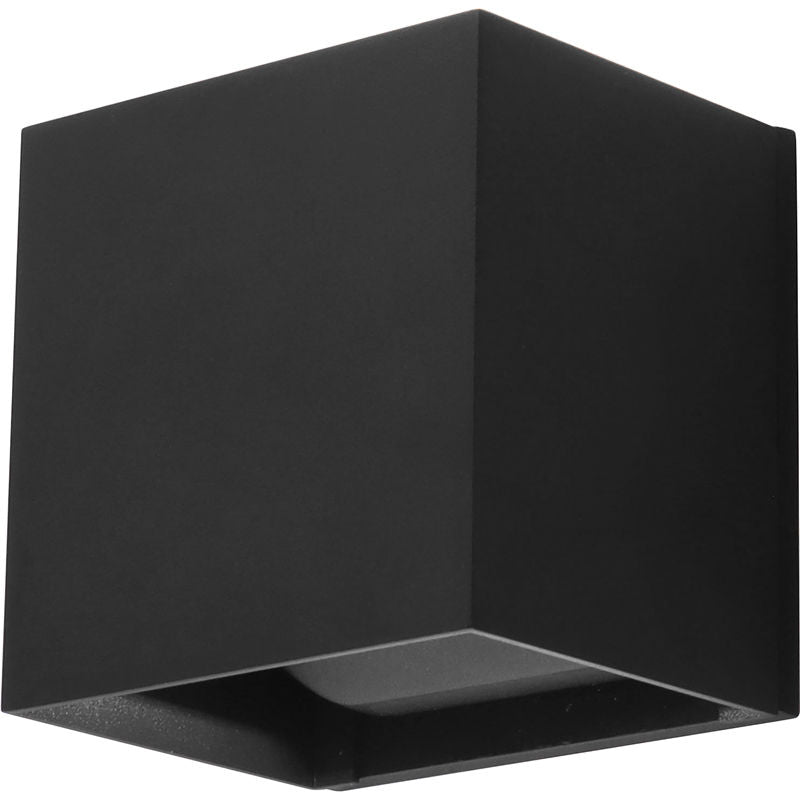

Westgate LRS-Q-MCT5-SERIES 15W Wall Cube with Adj Beam Angle Up/Down Light - Black

Technical Specs

• Voltage: 120V AC 60Hz
• Wattage: 15W
• Power Factor: 0.90
• Efficacy: 53 LPW
• Aluminum Housing and Steel Back and Bronze Plate
• Adjustable Beam Angles - 10 to 100 Up/Down
• Beam Angle Guidance Chart Included for ensuring consistent lighting across multiple units for a uniform and visually appealing lighting experience.
• Operating Temperature: -22F to 104F
• 7-Year Warranty
• Suitable For Wet Locations
• Multi CCT Switch is Inside Fixture
• Total Lumens: 800LM
• Color Temperatures: 2700K/3000K/3500K/4000K/5000K
• Color Rendering Index: CRI 80
• Adjustable Beam Angles - 10 to 100 Up/Down
• Rated life: 70,000 Hrs.

Applications

• The Westgate Wall Cube with Adjustable Beam Angle is a stylish, energy-efficient fixture offering customizable up/down lighting for indoor and outdoor use, enhancing spaces with elegant and effective illumination.

Download PDF File

Specification

Installation Instructions
