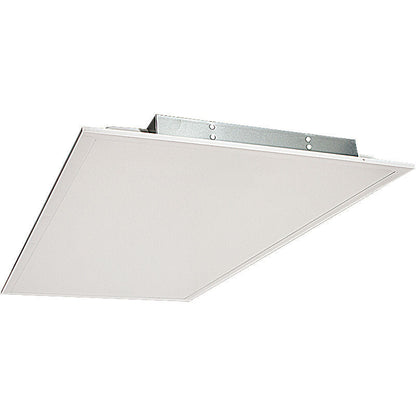

Westgate LPNG-2X4-6KLM-27K-D LED Backlit Panel Light - White

WestgateSKU: LPNG-2X4-6KLM-27K-D

Price:
Sale price$91.74

Shipping calculated at checkout

Stock:
In stock

Description

Technical Specs

  • White Finish
  • Soft and wide light-emitting
  • Multicolor temperature & multi-power (selectable switch on the back of fixture) or 0~10V Dimming
  • No flickering, humming or RF interference
  • No infrared rays, ultraviolet radiation or thermal effect
  • Surge Protector: 1KV, 2.5KV
  • Earthquake hooks and suspension hooks pre-installed
  • External driver mounted on top
  • Lumens: 2200/2600/3300/3800/4000/4400/4800/5500/6000/6600/7000/7200
  • Wattage: 20W/30W/40W/50W/60W/70W
  • Voltage: 120-277V, 50/60Hz AC
  • Fixture Operating Voltage: 36VDC
  • Rated Input Current (mA): 168/253/337/420
  • Efficacy: 90/105/110/116/120/127/130
  • Beam Angle: 110
  • Power Factor: >0.90
  • Operating Temperature: -68F ~ 104F
  • Total Harmonic Distortion: 20%
  • Color Rendering Index: CRI ‰¥ 80
  • Color Temp: 3500K/4000K/5000K
  • Lifespan: 50,000 hours
  • 5-year warranty

  Applications

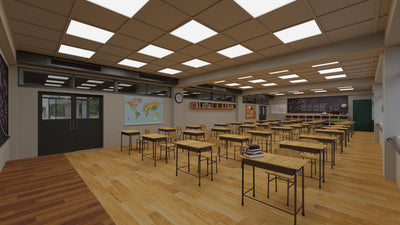

  • Ideal for hotels, offices, retail outlets, restaurants, parking garages, storage rooms, conference rooms, education facilities and more.

Download PDF File

Catalog Page

Specification

Installation Instructions
