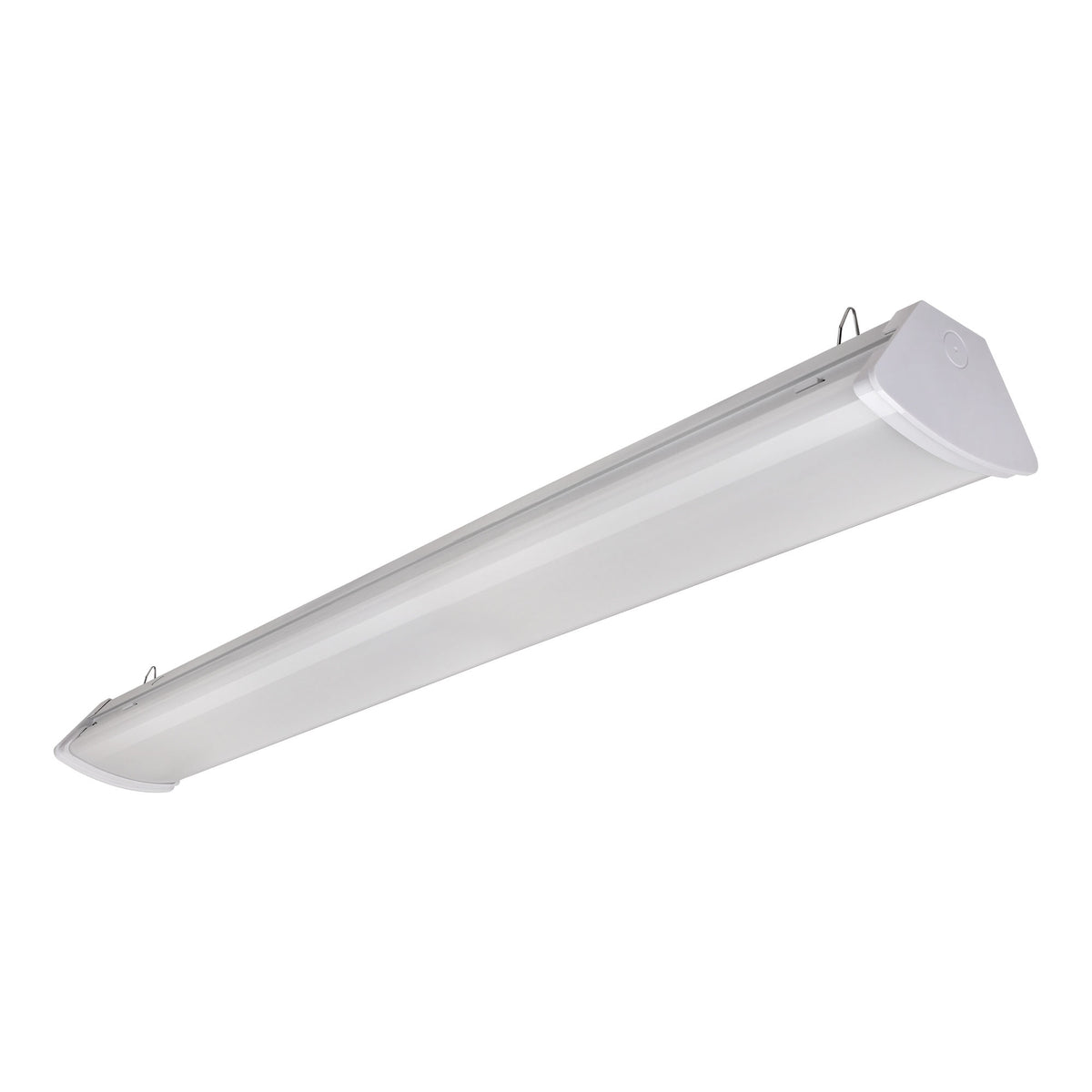

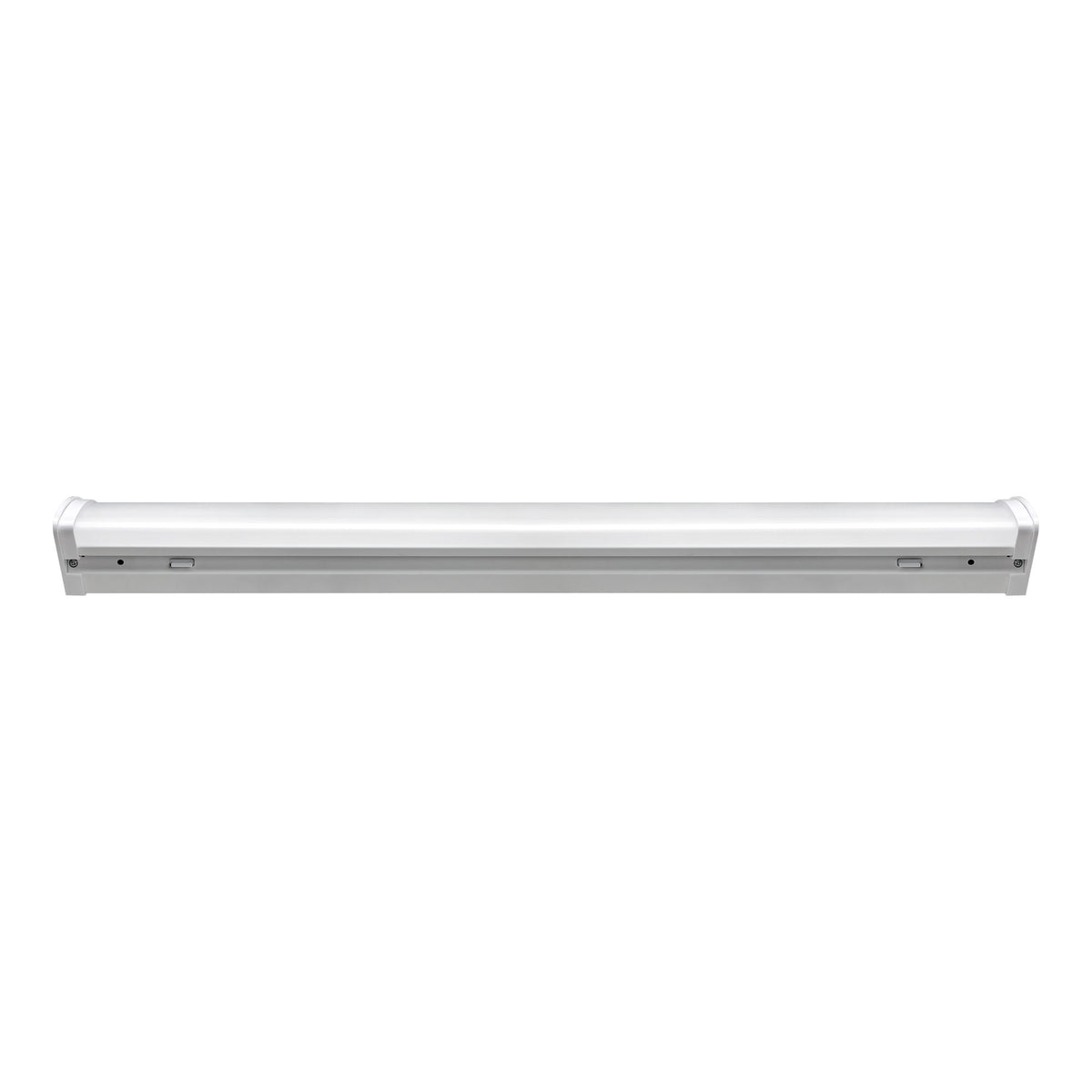

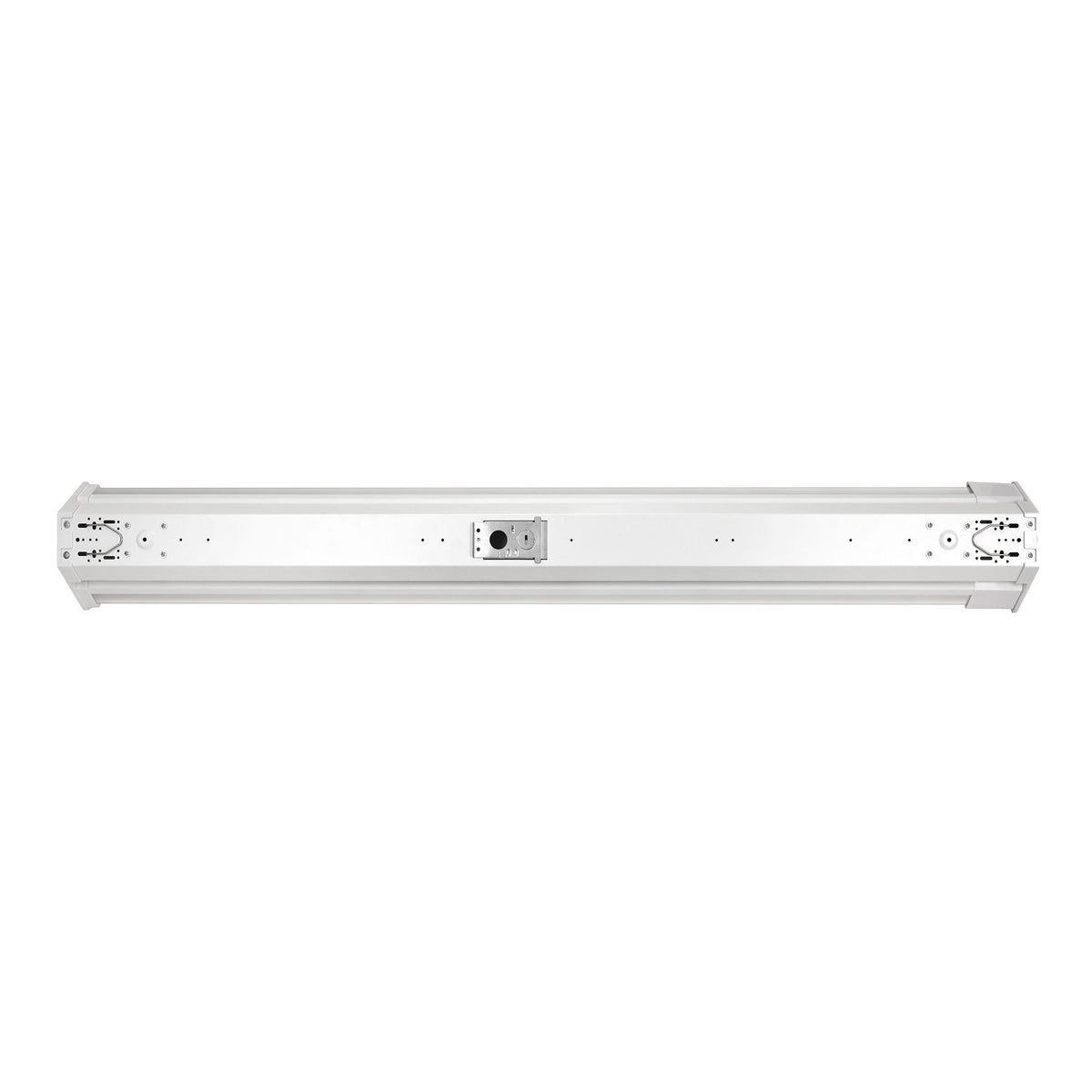

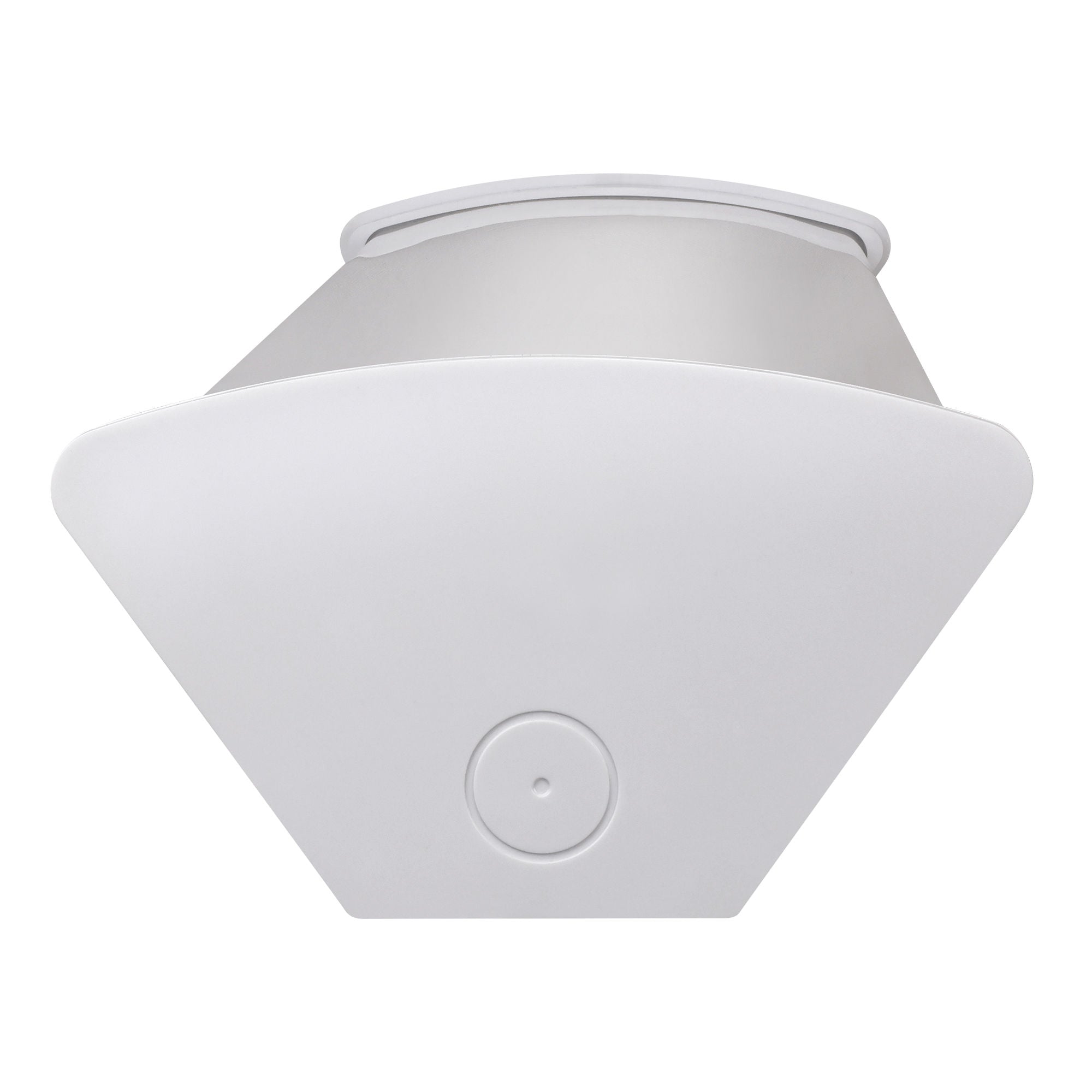

Details of the Westgate LLB-4FT-60W-MCTP-D 4FT Linear Low Bay LED Light, 40W/50W/60W Selectable Wattage, 3500K/4000K/5000K Selectable CCT - White

The Westgate LLB-4FT-60W-MCTP-D 4FT Linear Low Bay LED Light is a versatile and energy-efficient lighting solution designed for warehouses, retail spaces, corridors, supermarkets, gyms, and other commercial low bay applications. With field-selectable wattage of 40W, 50W, or 60W and selectable color temperatures of 3500K, 4000K, or 5000K, this fixture provides flexible illumination for different environments and project requirements. It delivers up to 9,000 lumens with an efficacy of 150 LM/W while supporting 0-10V dimming for convenient lighting control. The durable 22-gauge metal housing, smooth PMMA cover lens, matte white finish, and integrated lens and LED board design provide reliable performance and a clean appearance. The fixture also includes a V-hook and supports suspension mounting for flexible installation.

Key Features

• 4FT linear low bay LED design
• Selectable wattage: 40W / 50W / 60W
• Selectable CCT: 3500K / 4000K / 5000K
• Up to 9,000 lumens of light output
• High efficacy of 150 LM/W
• 0-10V dimming capability
• 120-277VAC input voltage

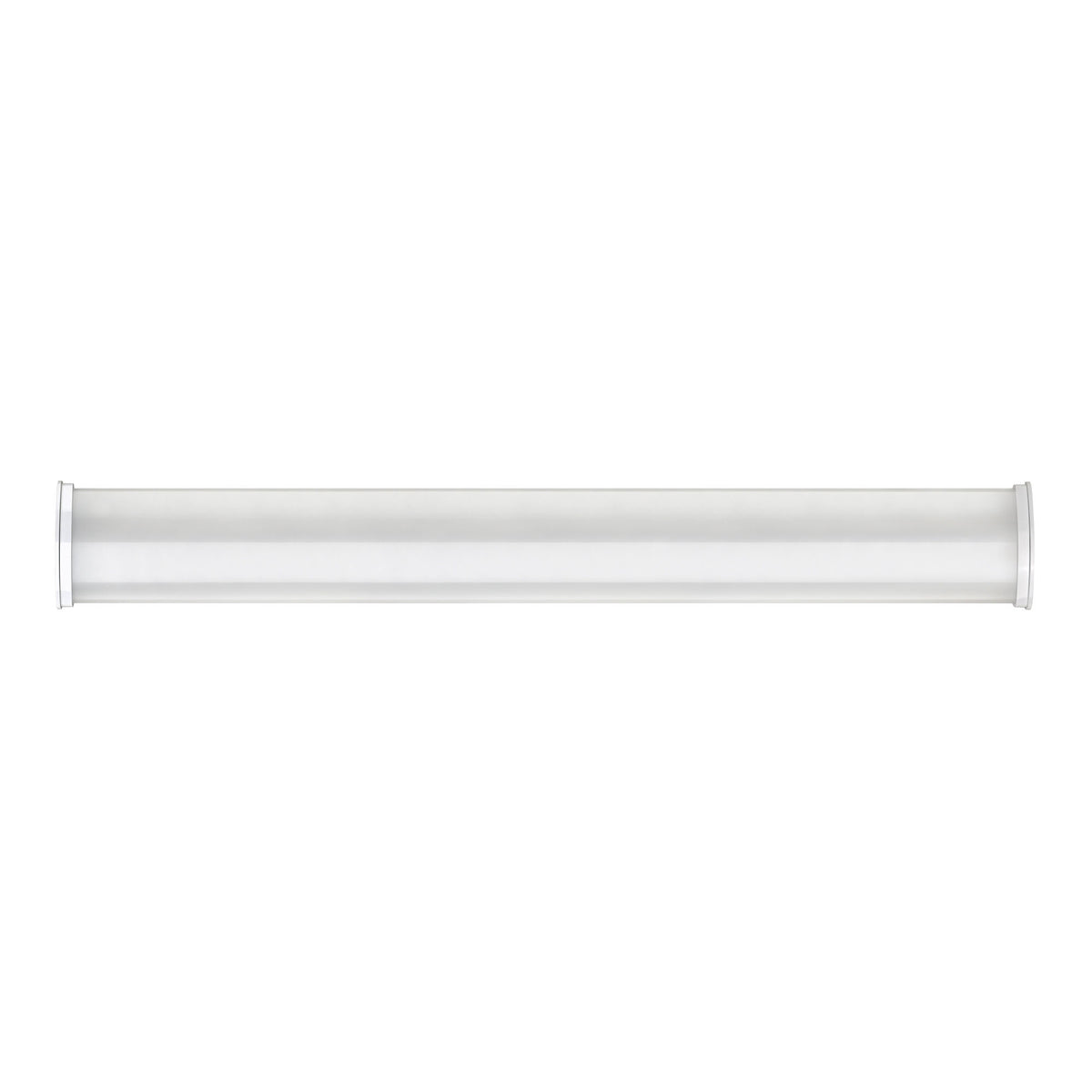

• Smooth PMMA cover lens for uniform light distribution
• Durable 22-gauge metal housing
• Matte white painted finish
• Integrated lens and LED board design
• 110° beam angle
• DC 12V auxiliary output
• Suspension mounting option
• V-hook included
• 50,000-hour rated lifespan
• DLC Premium qualified
• UL Listed
• 5-year warranty
• Optional LLB-4FT-REFL reflector accessory available

Technical Specifications

• Input Voltage: 120-277VAC
• Selectable Wattage: 40W / 50W / 60W
• Selectable Color Temperature: 3500K / 4000K / 5000K
• Lumen Output: 6,000LM / 7,500LM / 9,000LM
• Efficacy: 150 LM/W
• Dimming: 0-10V
• CRI: >80
• Beam Angle: 110°
• Auxiliary Output: DC 12V
• Lifespan: 50,000 hours
• Housing: 22-gauge metal
• Lens: Smooth PMMA cover lens
• Finish: Matte White
• Mounting: Suspension mount; V-hook included
• BUG Rating: B3-U4-G3
• Certifications: DLC Premium, UL Listed
• Warranty: 5 Years

Dimensions

• Length: 48.0 inches
• Width: 6.2 inches
• Height: 3.6 inches
• Overall Dimensions: 48.0" L x 6.2" W x 3.6" H

Applications

• Warehouses
• Retail spaces
• Corridors
• Supermarkets
• Gyms
• Commercial buildings
• Industrial facilities
• General low bay applications

Download PDF File

Specification

Installation Guide
