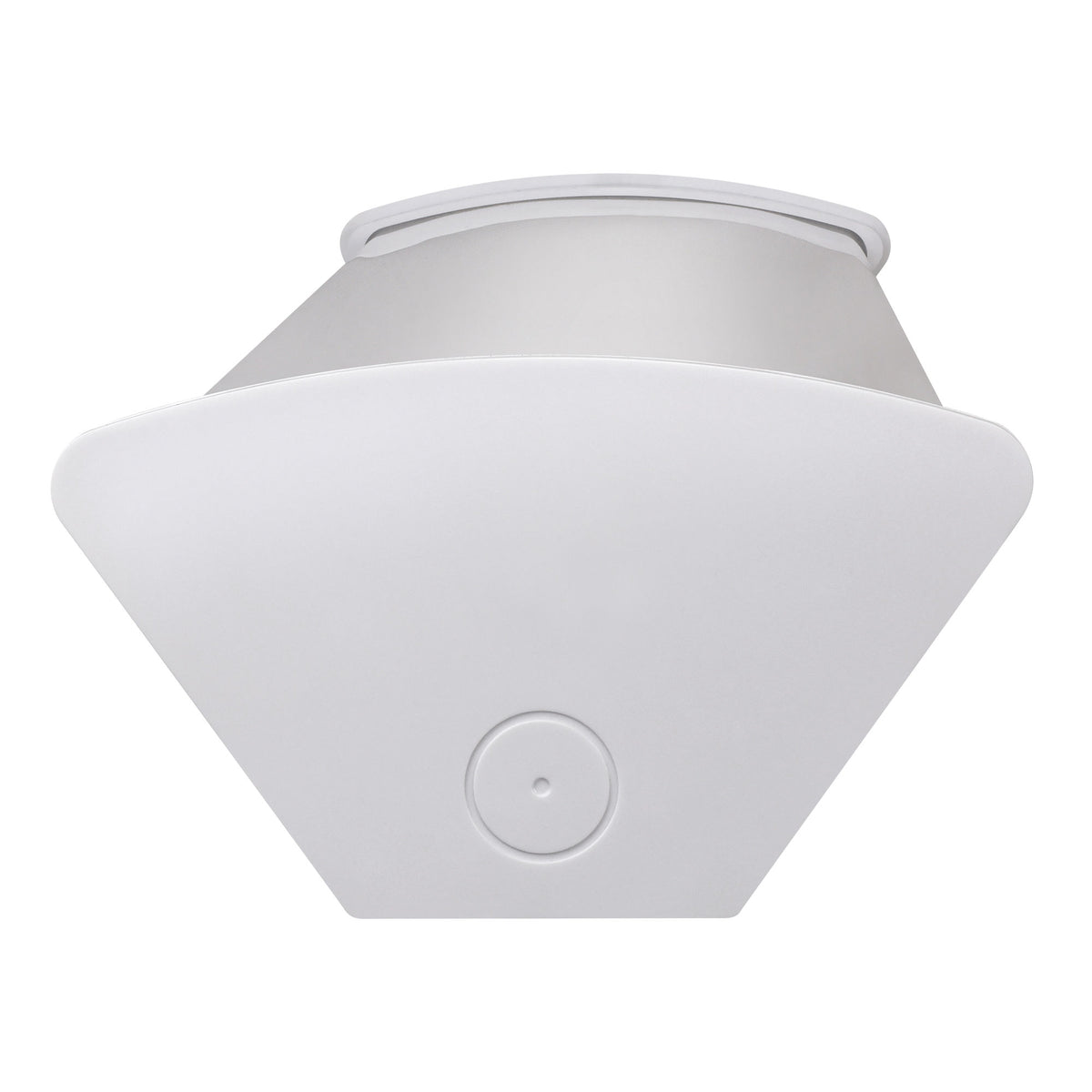

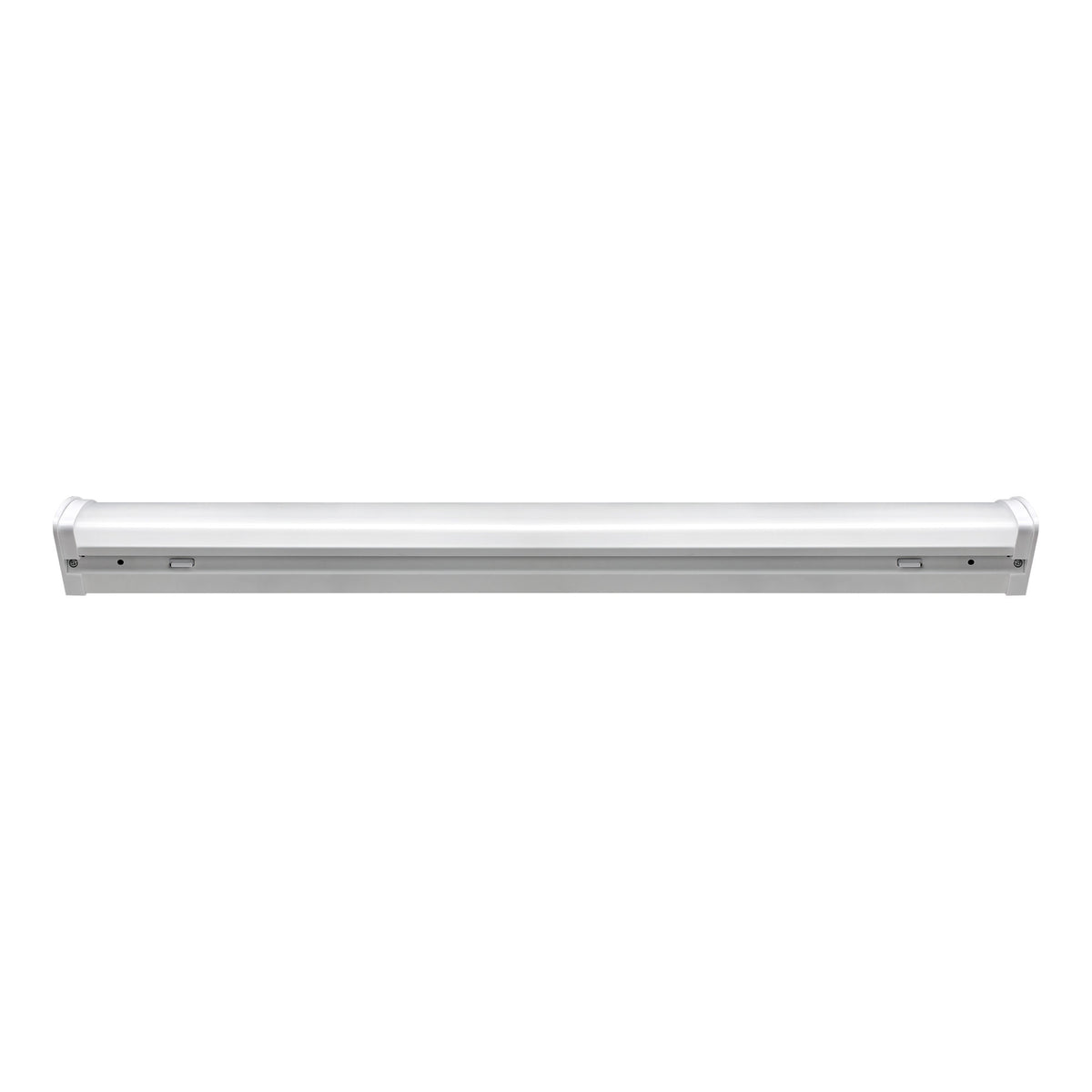

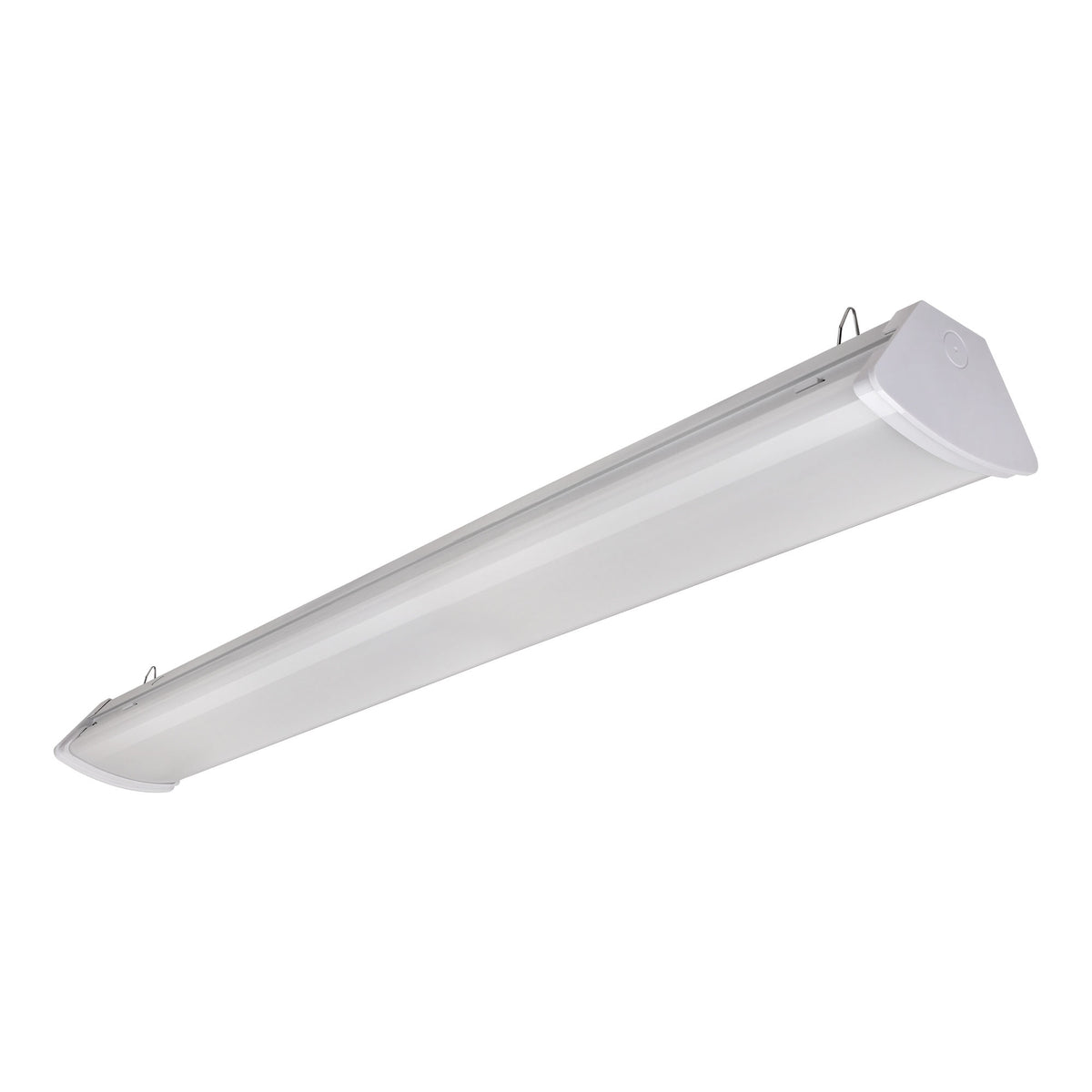

Details of the Westgate LLB-4FT-40W-MCTP-D 4FT Linear Low Bay LED Light, 20W/30W/40W Selectable Wattage, 3500K/4000K/5000K Selectable CCT - White

The Westgate LLB-4FT-40W-MCTP-D 4FT Linear Low Bay LED Light is a versatile and energy-efficient lighting solution designed for warehouses, retail spaces, workshops, storage facilities, gyms, and other commercial applications. With field-selectable wattage of 20W, 30W, or 40W and selectable color temperatures of 3500K, 4000K, or 5000K, this linear low bay provides flexible illumination for different project requirements. Delivering up to 6,000 lumens with an efficacy of 150 LM/W, it provides bright and efficient lighting while helping reduce energy consumption. The durable 22-gauge metal housing, smooth PMMA cover lens, matte white finish, and integrated lens and LED board design provide reliable performance and a clean, professional appearance. The fixture supports 0-10V dimming, includes a V-hook for convenient installation, and offers a suspension mounting option for added flexibility.

Key Features

• 4FT linear low bay LED design for commercial and industrial applications
• Selectable wattage: 20W / 30W / 40W
• Selectable CCT: 3500K / 4000K / 5000K
• Up to 6,000 lumens of light output
• High efficacy of up to 150 LM/W
• 0-10V dimming capability
• 120-277VAC input voltage

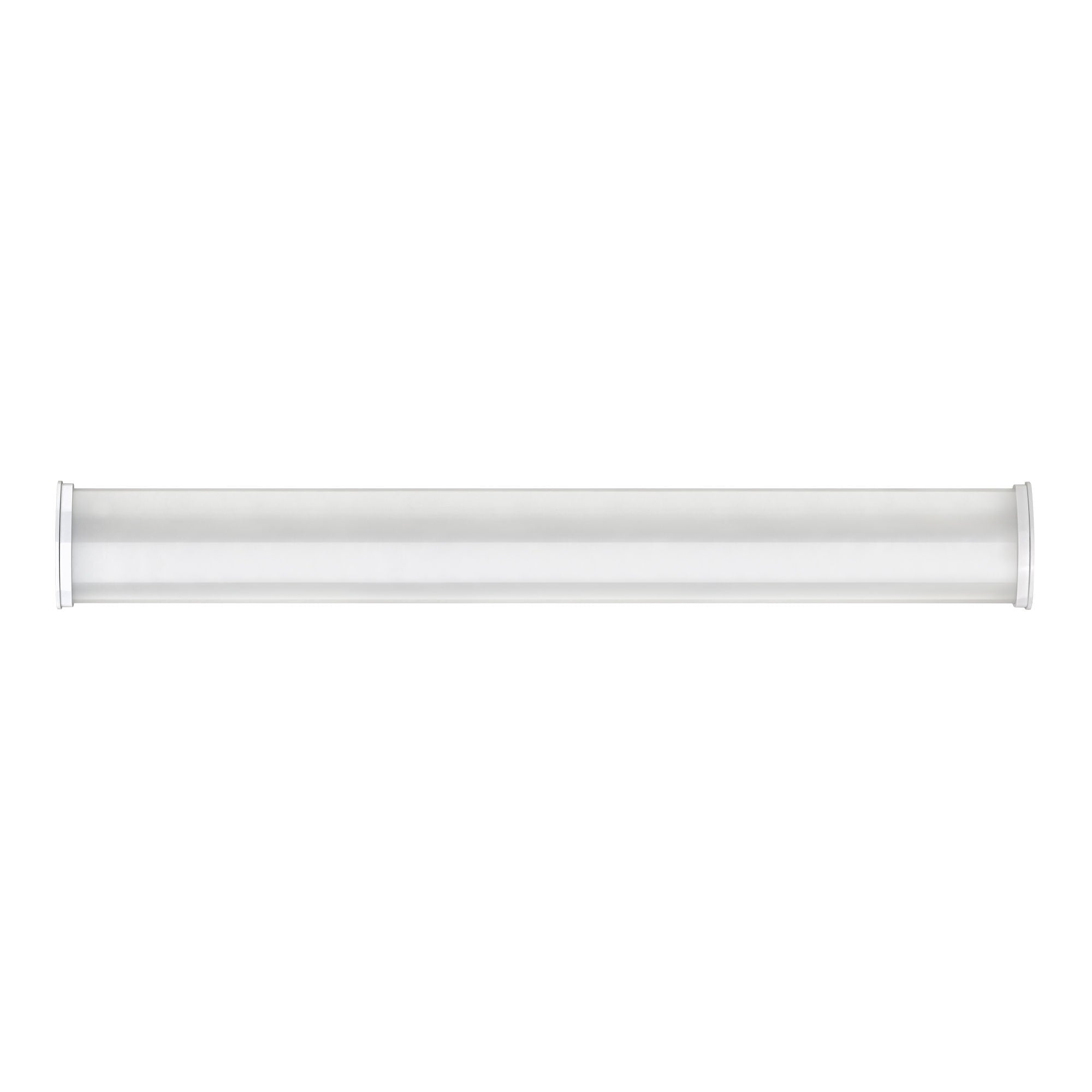

• Smooth PMMA cover lens for uniform light distribution
• Durable 22-gauge metal housing
• Matte white painted finish
• Integrated lens and LED board design
• 110° beam angle
• V-hook included for installation
• Suspension mounting option
• 12V DC auxiliary output
• 50,000-hour rated lifespan
• DLC Premium qualified
• UL Listed
• 5-year warranty
• Optional reflector accessory available: LLB-4FT-REFL

Technical Specifications

• Input Voltage: 120-277VAC
• Selectable Wattage: 20W / 30W / 40W
• Selectable Color Temperature: 3500K / 4000K / 5000K
• Lumen Output: 3,000LM / 4,500LM / 6,000LM
• Efficacy: 150 LM/W
• Dimming: 0-10V
• CRI: >80
• Beam Angle: 110°
• Auxiliary Output: DC 12V
• Lifespan: 50,000 hours
• Housing: 22-gauge metal
• Lens: Smooth PMMA cover lens
• Finish: Matte White

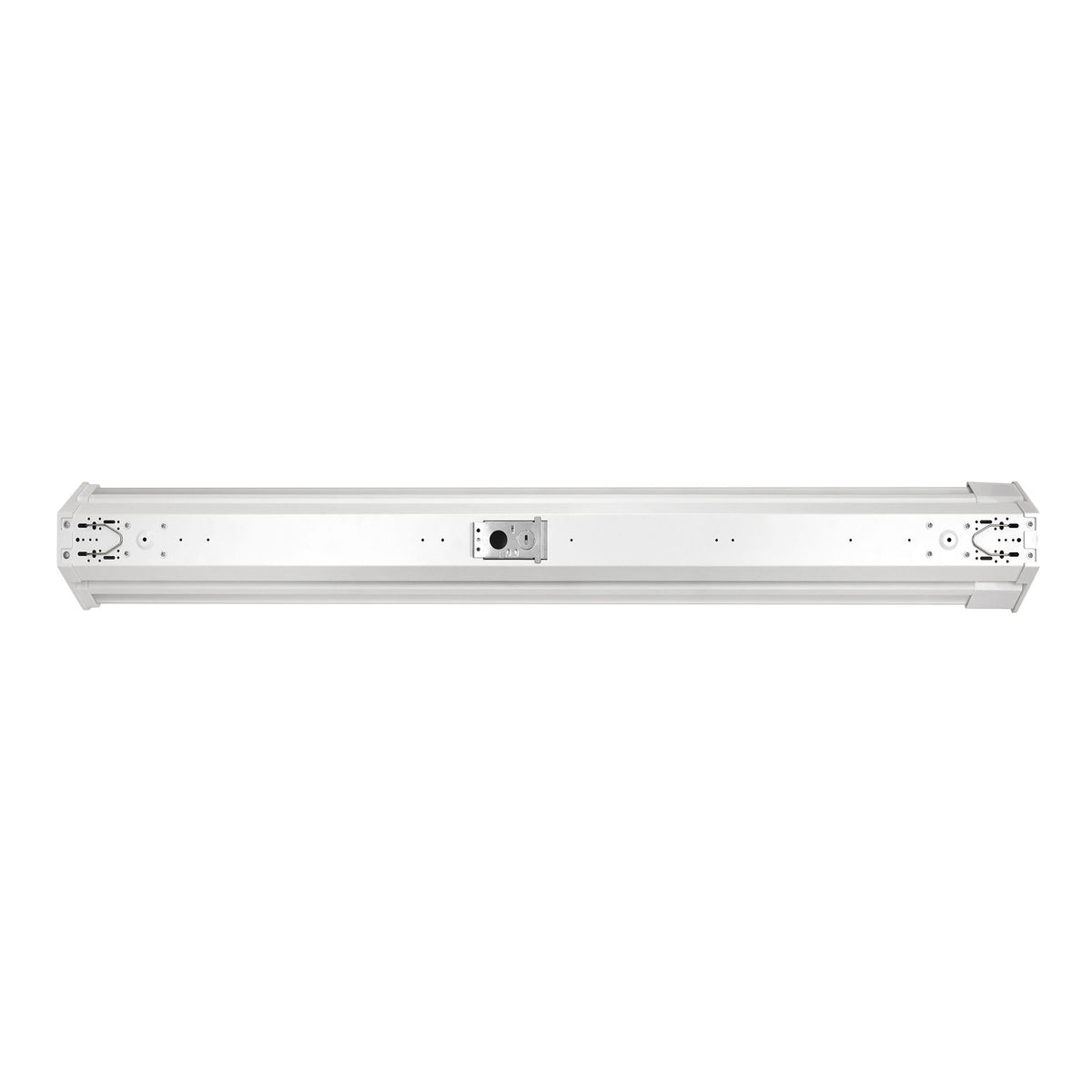

• Mounting: Suspension mount; V-hook included
• BUG Rating: B3-U4-G3
• Certifications: DLC Premium, UL Listed
• Warranty: 5 Years

Dimensions

• Length: 48.0 inches
• Width: 6.2 inches
• Height: 3.6 inches
• Overall Dimensions: 48.0" L x 6.2" W x 3.6" H

Applications

• Warehouses
• Retail stores
• Workshops
• Storage facilities
• Gyms and recreational facilities
• Commercial spaces
• Industrial facilities
• Moderate-height ceiling applications
