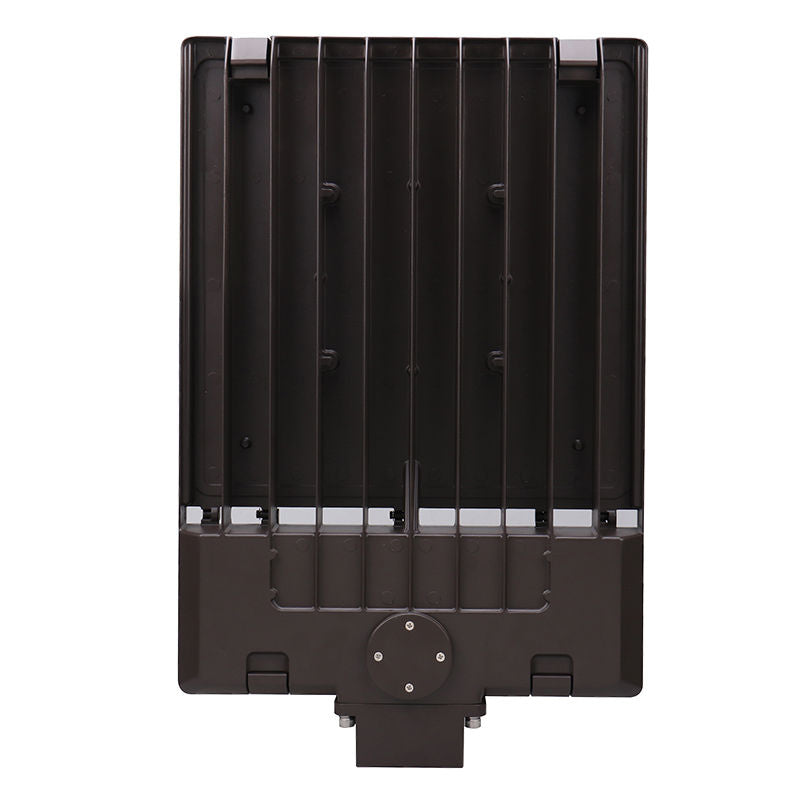

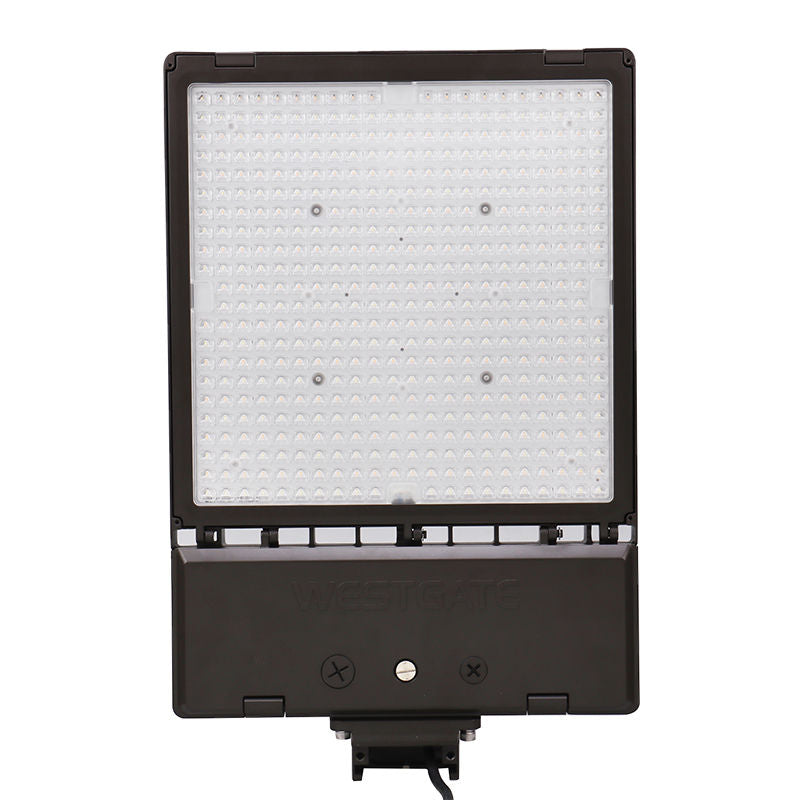

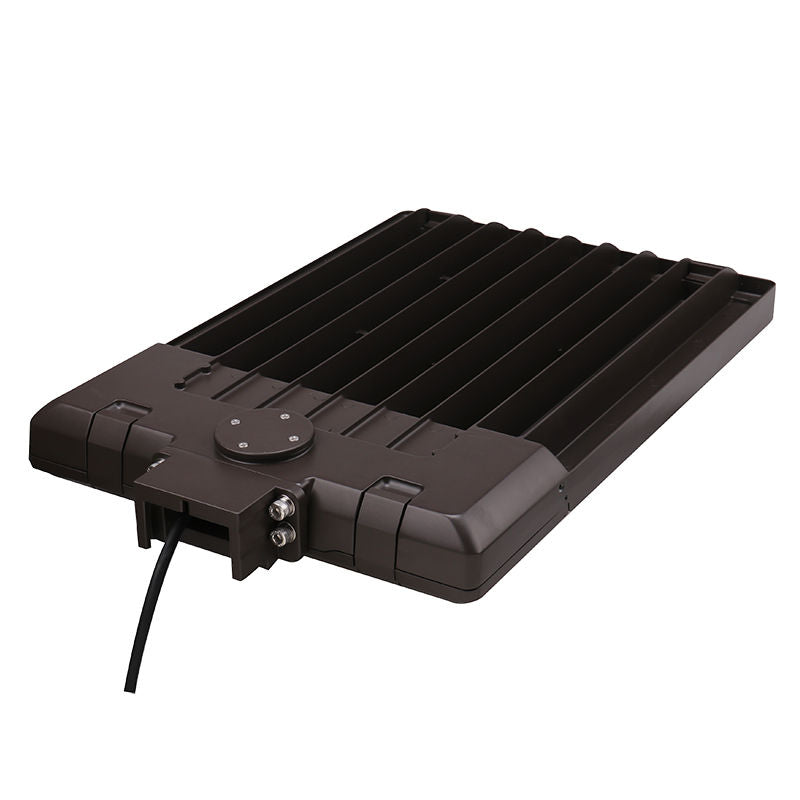

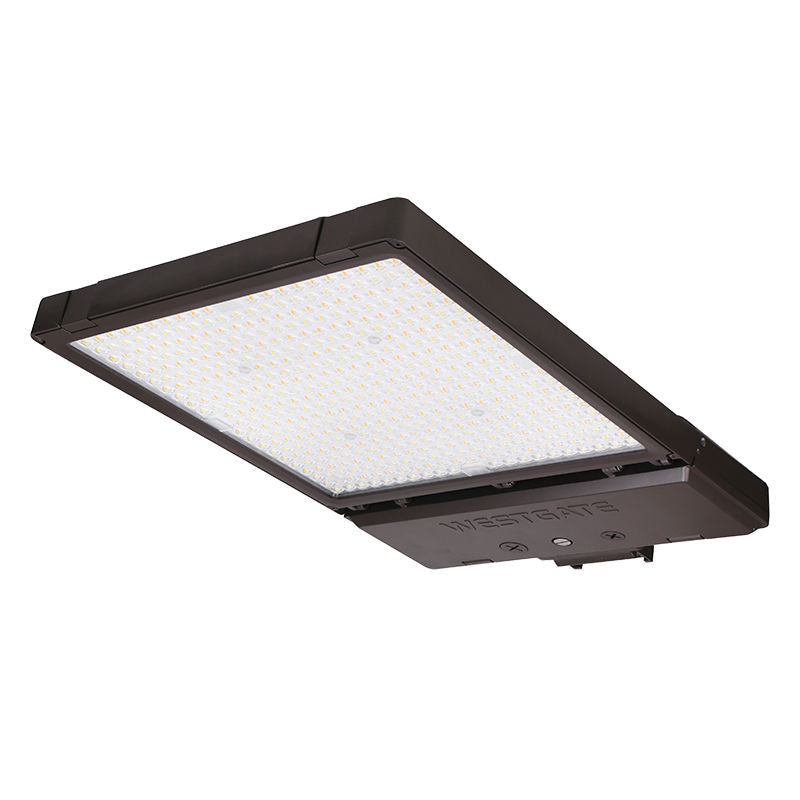

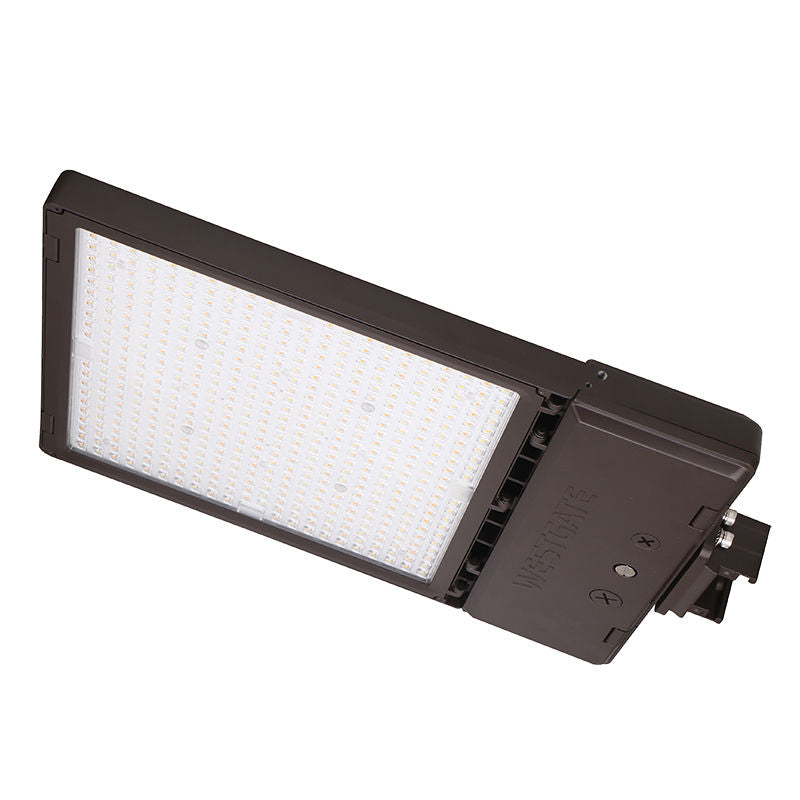

Westgate LFXMAX-XL-200-300W-MCTP-PSR-480V Maximum Feature Area/Flood Light, Sensor & Photocell Ready - Dark Bronze

WestgateSKU: LFXMAX-XL-200-300W-MCTP-PSR-480V

Price:
Sale price$376.74

Shipping calculated at checkout

Stock:
In stock

Description

Technical Specs

  • Voltage: 120~277V AC/480V AC/50~60 Hz
  • Wattage: 70W/100W/150W/200W/250W/300W
  • Power Factor: >0.9
  • Efficacy: 145 LPW
  • With Snap-on & Bolt Mounting Options for One-Person Installations. Select a Mounting Option (Sold Separately)
  • Cord Type: 6' SJTW 18/3 AWG cable
  • Die-cast Aluminum Housing with Powder Coat Finish (Dark Bronze)
  • 10KV Lightning Surge Protection
  • Effective Projected Areas (EPA's) are: Front = 0.38 ft. ², Side = 0.30 ft ², Face = 1.05 ft ²
  • Operating Temperature: -40F to 104F
  • IP Rating: IP65, Suitable for Wet Locations
  • 7-Year Warranty
  • Dimming: 0~10V Dimmable
  • Optic Lens Type: III
  • Total Lumens: 21400LM/43500LM Max.
  • Color Temperature: 3000K/4000K/5000K
  • Color Rendering Index: ‰¥ 80
  • Beam Angle: 155x75 Type III
  • 70,000 Hours Rated Life

Applications

  • Ideal for general site lighting, alleys, loading docks, doorway, pathways and parking areas.
  • Replace existing HID flood lights/ wall packs
