Westgate | Product Number: LFX-XS-15W-30K-TR

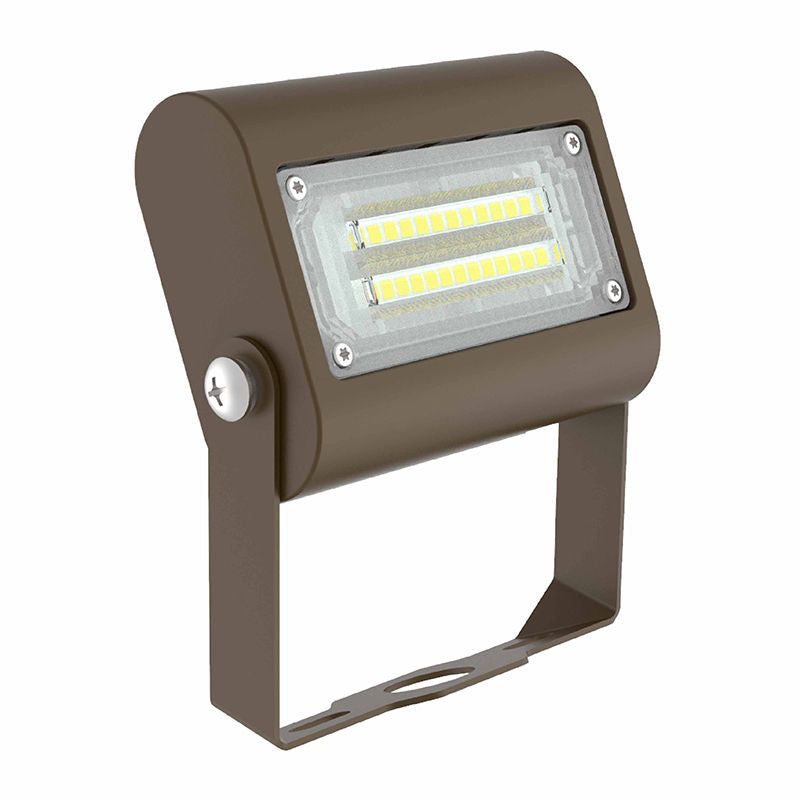

Westgate LFX-XS-15W-30K-TR LED X-Gen. Extra Small Flood Light with U Bracket - Dark Bronze
Pickup available at Sonic Distribution Center
Usually ready in 2-4 days30-day returns Read terms & conditions
Top rated store Read 5-star reviews
Orders ship within 2 business days
Safe & secure checkout
Product details
Description
Technical Specs
- Voltage: 120~277V AC/50~60 Hz
- Wattage: 15W
- Power Factor: 0.9
- Efficacy: 130 LPW
- Die-cast Aluminum Housing with Powder Coat Finish (Dark Bronze and White Finish)
- Solid State Lighting Technology for Long Life, No Maintenance Needed and High-Efficiency
- High Conductive Aluminum LED Board
- 270 Adjustable Yoke Mount
- IP Rating: IP65
- Operating Temperature: -40F to 104F
- Suitable for Wet Locations
- Dimming: 0~10V Dimmable
- Optic Lens Type: III
- Cord Type: 13€šš½ #18 AWG Stranded Wires
- Total Lumens: 1950LM
- Color Temperature: 3000K/4000K/5000K
- Color Rendering Index: 82
- Beam Angle: 120X 90
Applications
- Ideal for general site lighting, alleys, loading docks, doorway, pathways, and parking areas.
- Replace existing HID flood lights/wall packs.
Download PDF File
Specification
Installation Instructions
