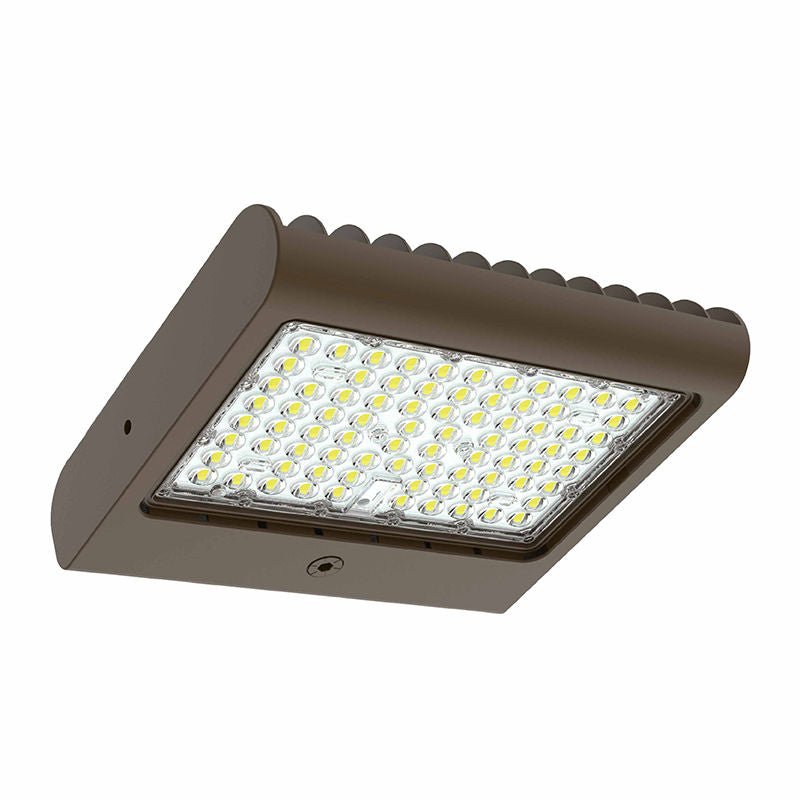

Westgate LFX - LG - 50 - 150W - 40K - SC Spec Series Power - Adjustable Flood/Area Lights, 50W/80W/100W/150W, 40K - Dark Bronze - Sonic Electric
  • Brand: Westgate
  • Part #: LFX-LG-50-150W-40K-SC

Westgate LFX-LG-50-150W-40K-SC Spec Series Power-Adjustable Flood/Area Lights, 50W/80W/100W/150W, 40K - Dark Bronze

$168.74

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

Fast & Reliable Shipping

Orders processed in 1–2 business days.

Hassle-Free Returns

30-day returns on eligible items. Read Terms

Knowledgeable Support

Get expert help via chat, email or phone.

Top-Rated Store

Trusted by 20,000+ customers. Read Reviews

Product Details

Description

Technical Specs

  • Voltage: 120~277V AC/50~60 Hz
  • Wattage: 50W/80W/100W/150W
  • Power Factor: 0.9
  • Efficacy: 140 LPW
  • With Snap-on Bolt Mounting Options for One- Person Installations. Select a Mounting Option (Sold Separately)
  • NEMA Twist-Lock Shorting Cap Included. Photocell Sold Separately
  • LED: Lumileds Luxeon 2835 High Flux LED
  • Die-cast Aluminum Housing with Powder Coat Finish (Dark Bronze)
  • IP Rating: IP65
  • 10KV Lightning Surge Protection
  • Effective Projected Areas (EPAž¢s) are: Front = 0.38 ft ², Side = 0.30 ft ², Face = 1.05 ft ²
  • Operating Temperature: -40F to 104F
  • Suitable for Wet Locations
  • Dimming: 0~10V dimmable
  • Optic Lens Type: III
  • Cord Type: 6ž¢ SJTW 18/3 AWG cable
  • Total Lumens: 21000LM Max.
  • Color Temperature: 3000K
  • Color Rendering Index: %82
  • Beam Angle: 120X 90

Applications

  • Ideal for general site lighting, alleys, loading docks, doorway, pathway, and parking areas.
  • Replace existing HID flood lights/ wall packs

Download PDF File

Specification

Installation Instructions
