Brand: Westgate | Product No: LF4MAX-SM-15-35W-MCTPB-KN-P-BK

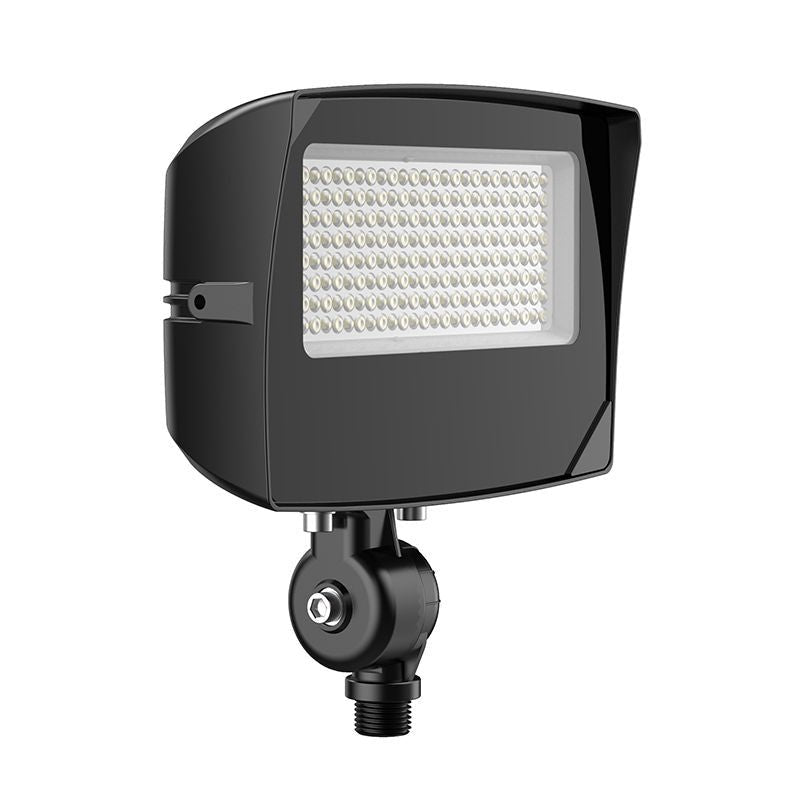

Westgate LF4MAX-SM-15-35W-MCTPB-KN-P-BK Small Maximum-Feature Round-Back Flood Light with Knuckle, 15W/25W/35W, 30K/40K/50K - Black
Pickup available at Sonic Distribution Center
Usually ready in 24 hoursPairs well with
Top-Rated Store • Read Reviews
Fast Shipping • Ships in 1–2 Business Days
30-Day Returns • See Terms
Secure Checkout • SSL Encrypted
Product details
Description
Technical Specs
- Voltage: 120~277VAC/50~60 Hz
- Wattage: 15W/25W/35W
- Power Factor: 0.9
- Efficacy: 140LPW
- Housing: Die-cast Aluminum Housing with Powder Coat Finish
- 90 Adjustable 1/2� Knuckle Mount
- Photocell Included (With Disconnect Switch)
- 6KV Lightning Surge Protection
- Cord Type: 1.5ž¢ SJTW 18/3 AWG Cable
- Operating Temperature: -40F to 104F
- Suitable for Wet Locations
- Effective projected areas (EPAž¢s) are: Front = 0.38 square feet Side = 0.30 square feet Face = 1.05 square feet
- IP Rating: IP65
- 7-Year Warranty
- Dimming: 0~10V Dimmable
- Multi-CCT Multi-Power - The Switches are on the Bottom of the Fixture
- Total Lumens: 4900LM
- Color Temperature: 3000K/4000K/5000K
- Color Rendering Index: %70
- Adjustable Beam Angle: 135x125/120x120/90x90
- 70,000 Hours Rated Life
Applications
- Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
- Replace existing HID flood lights/ wall packs
