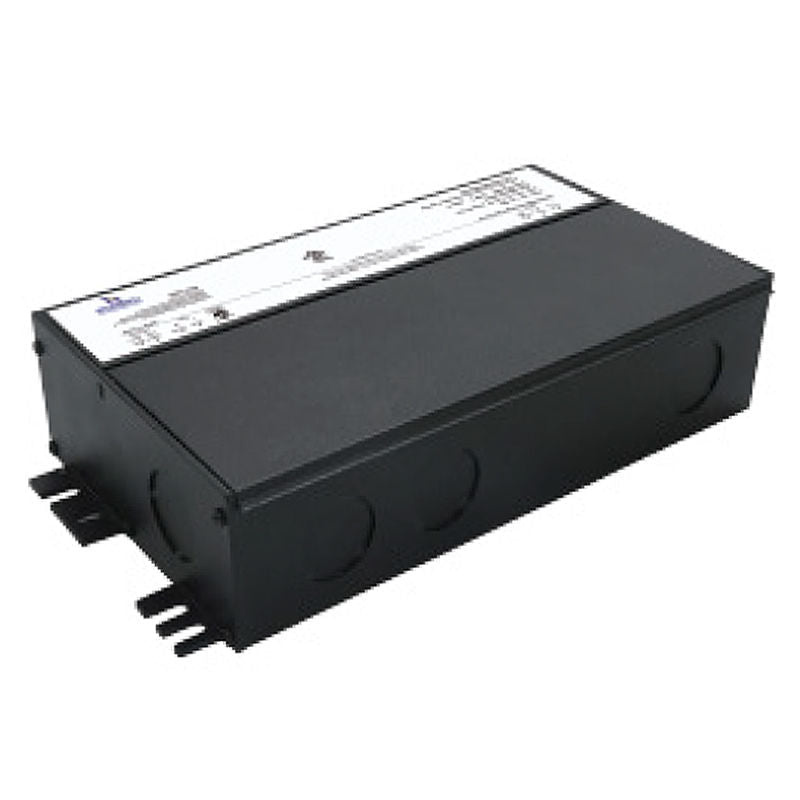

Westgate LEDDR-24V-60W-UNIV 5-IN-1 Dimmable Electronic LED Driver with Junction Box, 60W

Brand: Westgate
Part #: LEDDR-24V-60W-UNIV

Westgate LEDDR-24V-60W-UNIV 5-IN-1 Dimmable Electronic LED Driver with Junction Box, 60W

$129.93

Product variants

Share:

Share

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

Westgate LEDDR-24V-60W-UNIV 5-IN-1 Dimmable Electronic LED Driver with Junction Box, 60W

$129.93

In Stock

Ships in 1-3 Business Days

Authorized Brand Dealer

Secure Checkout

Product Details

Description

Technical Specs

Voltage: 120-277V
Output Voltage: 24V DC
Output Voltage Range: 18-25V
Output Current: 2.5A Max
Output Power: 60W
Output Ripple Noise: %600mV
Input Voltage Range: 100V AC - 277V AC
Input Frequency Range: 50-60HZ
Input Current: 0.62A@120VAC
Surge Current (Cold Start): 20A, 50%, 1.6ms @120Vac
Power Efficiency: 87% @ 220V AC
PF: 0.95
Leakage Current: 0.75mA
Short-Circuit Protection: Hiccup Mode, and Automatic Recovery
Over-Voltage Protection: Shut Down the Output When Non-Load Voltage is %28V, and Automatic Recovery
Working Temperature: -22F to 140F
Working Humidity: 20%-90%RH
Approved Environments Location: Suitable for Dry, Damp, and Wet locations
Storage Temperature: -40F to 176F
Storage Humidity: 10% - 95%RH
Vibration: 10~500Hz, 1.0mm, 15 minutes(for X,Y, Z Each Axis)
Tcase: 194F

Applications

A 5-in-1 dimmable electronic LED driver with a junction box is a versatile power supply device used for LED lighting systems. It typically offers multiple dimming options, such as TRIAC, 0-10V, MLV, ELV, and PWM dimming, allowing flexibility in controlling the brightness of LED lights. These drivers are often designed to provide constant voltage output, ensuring stable and efficient operation of LED fixtures. Additionally, they may feature a junction box for easier installation and wiring connections.

Download PDF File
