Product details

Description

Technical Specs

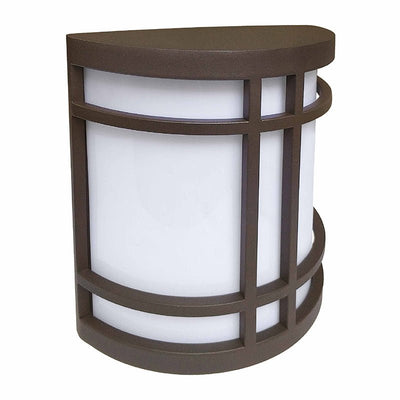

  • Aluminum Housing and Steel Back Plate (Oil-Rubbed Bronze Finish)
  • Multi CCT (Selectable switch on the LED Board)
  • Lens: Acrylic PC Lens
  • Lumens: 1200LM
  • Wattage: 12W
  • Voltage: 120V AC 50/60Hz
  • Efficacy: 100LPW
  • Beam Angle: 120
  • Power Factor: 0.90
  • Maximum Ambient Temperature: 50 ~ 113F
  • Total Harmonic Distortion: 20%
  • Color Rendering Index: CRI 80
  • Color Temp: 2700K/3000K/3500K/4000K/5000K
  • Lifespan: 70,000 hours
  • IP Rating: IP42, Wet Location
  • 7-year warranty

Applications

  • LED outdoor wall light with aluminium housing powder-coated finish, acrylic diffuser; ideal for general site lighting, residential buildings, doorways, pathways and parking areas.

    Download PDF File

    Catalog Page

    Specification

    Installation Instructions
