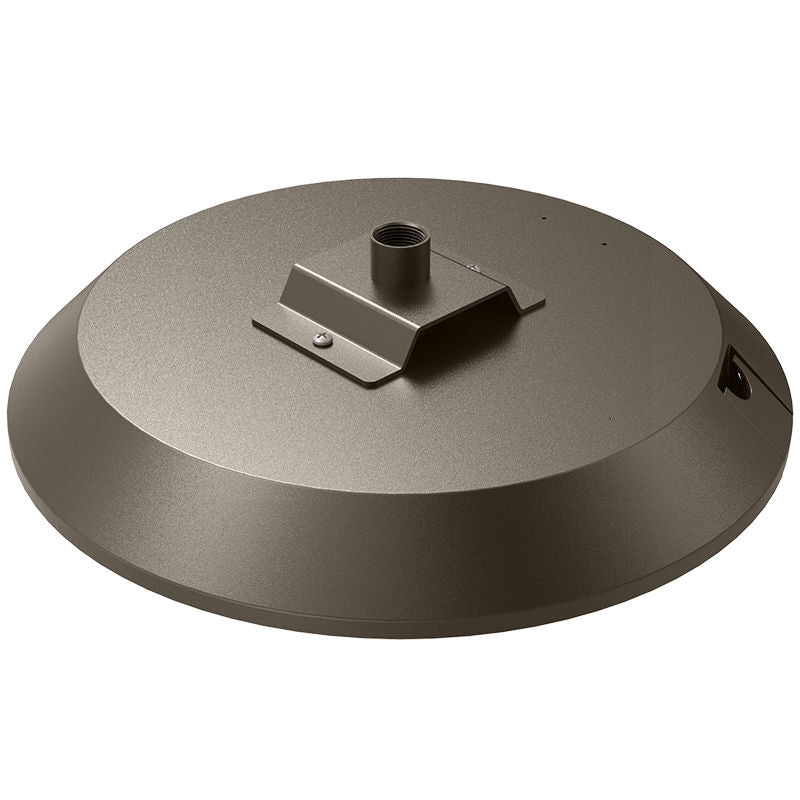

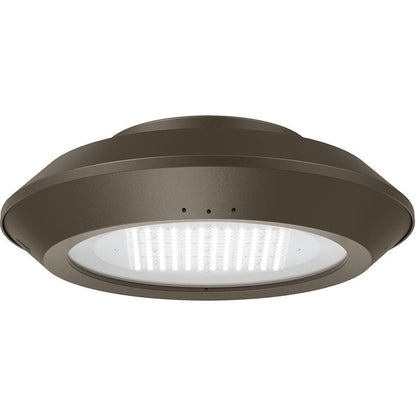

Westgate GPX-22-75W-MCTP-PM75 Multi-Power & CCT Post Disk with 3/4" Pipe Mount Hub

WestgateSKU: GPX-22-75W-MCTP-PM75

Price:
Sale price$ 333.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Voltage: 100-277V AC 50/60Hz
  • Wattage: 18W-75W
  • Power Factor: 0.95
  • Efficacy: 150LM/W
  • Aluminum Housing, Outdoor Powder Coated

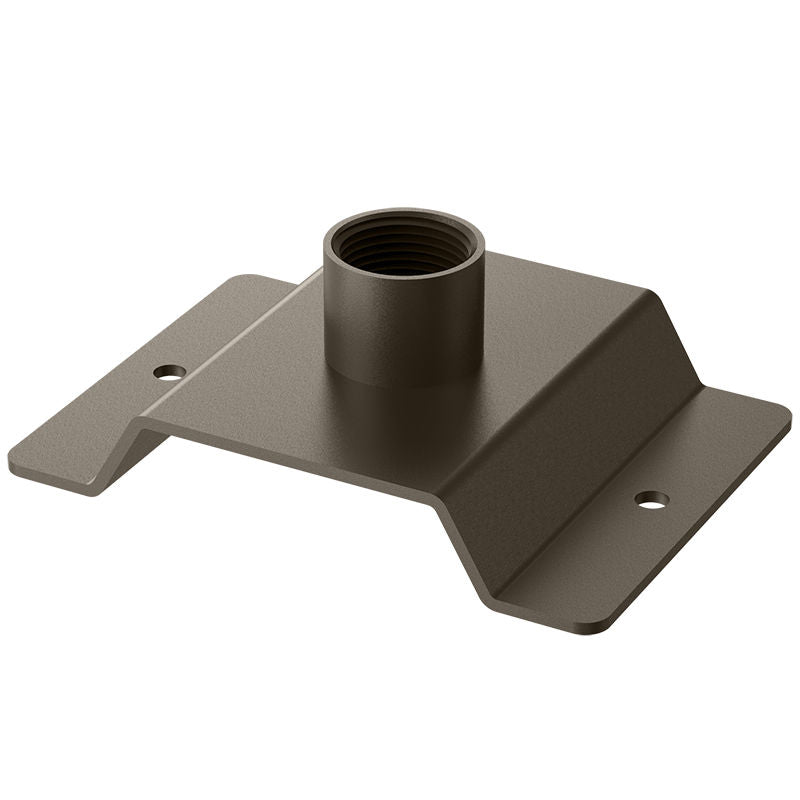

  • 3/4" NPT Threaded Hub On the Top Allows Stem Mounting
  • Programmable Bi-Level Motion Sensor & Emergency Backup Options
  • Operating Temperature: -86°F~122°F
  • IP Rating: IP66, Suitable for Wet Locations
  • 7-Year Warranty
  • Multi CCT and Power: Selectable Switch Inside of the Fixture
  • Dimmable: 0~10V Dimming
  • LED: SMD 3030
  • Total Lumens: 9000LM Max.
  • Color Temperature: 3000K/4000K/5000K
  • Color Rendering Index: >70
  • Beam Angle: Type V (150° X 150°)
  • Lifespan: 70000 Hrs.

Applications

  • Ideal for gardens, amusement parks, residential quarters, industrial parks, and pedestrian streets.

Download PDF File

Catalog Page

Specification

Installation Instructions
