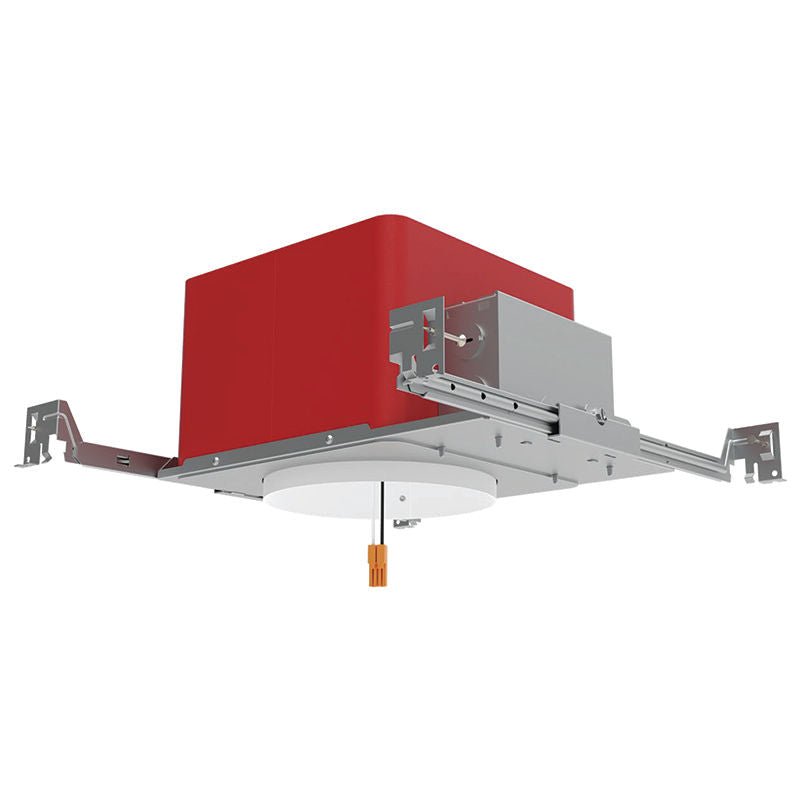

Westgate FR-HL6-AT Gen. 2 Fire-Rated Recessed Housings, 22W - Red

$46.74

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

Fast & Reliable Shipping

Orders processed in 1–2 business days.

Hassle-Free Returns

30-day returns on eligible items. Read Terms

Knowledgeable Support

Get expert help via chat, email or phone.

Top-Rated Store

Trusted by 20,000+ customers. Read Reviews

Product Details

Description

Technical Specs

  • Voltage: 120V or 277V
  • Wattage: 22W
  • Double wall IC rated for direct contact with insulation.
  • For use in IC and non-IC conditions
  • Housing adjusts in frame to accommodate up to 1 1/2� ceiling thickness
  • Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements
  • Suitable for Damp Locations
  • Pre-wired #21 gauge galvanized steel junction box with (7) 1/2� knockouts and (4) Romex® knockouts and removable plates
  • Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24� and can be repositioned 90. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Applications

  • Designed for ceiling plenums where 2x8 joists or taller are used
  • High strength hanger bars can easily be nailed to joists
  • Suitable for T-grid and drop ceiling applications
  • See installation sheet for detailed information
