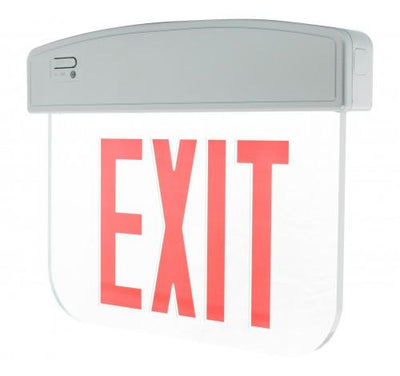

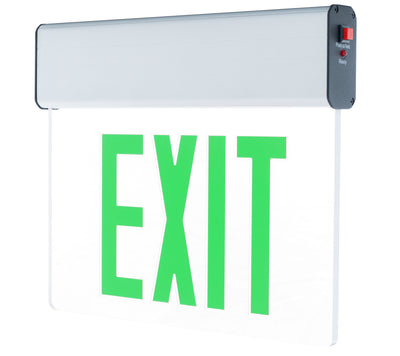

Westgate 120-277V Double Face Edgelit Mirror LED Exit Sign - White

• Voltage: Dual 120-277V
• Wattage: 4.5W(Red) 4.8W(Green)
• Extruded Aluminum canopy with clear acrylic panel
• Trim plate housing: Aluminum White
• Single or double face (Mylar insert used for double face)
• Left or right arrow
• Low profile compact design
• Universal mounting plate for back, top, or side mounting
• Mounting: wall, ceiling bar hangers
• Mounting accessories included
• Operating temperature: 68F ~ 122F
• Suitable for damp locations (32F to 122F )
• Solid state electronics and charger board
• Push-to-test switch
• Specification grade exit with emergency battery backup (90 minutes)
• Premium high-output ultra bright LEDs
• 4.8 V, Rechargeable Ni-Cad battery
• 90-minute EM-rated with push style test switch and red indicator light
• Energy efficient LED panel
• Warranty 3 years

Applications

• These lights are used for residential properties such as apartment buildings and assisted living facilities. Its purpose is to guide people to the closest exit in case of a fire or emergency. Several different styles of emergency exit signs are available for various applications including damp/ wet location units as well as a variety of styles and colors available for your emergency lighting needs.
