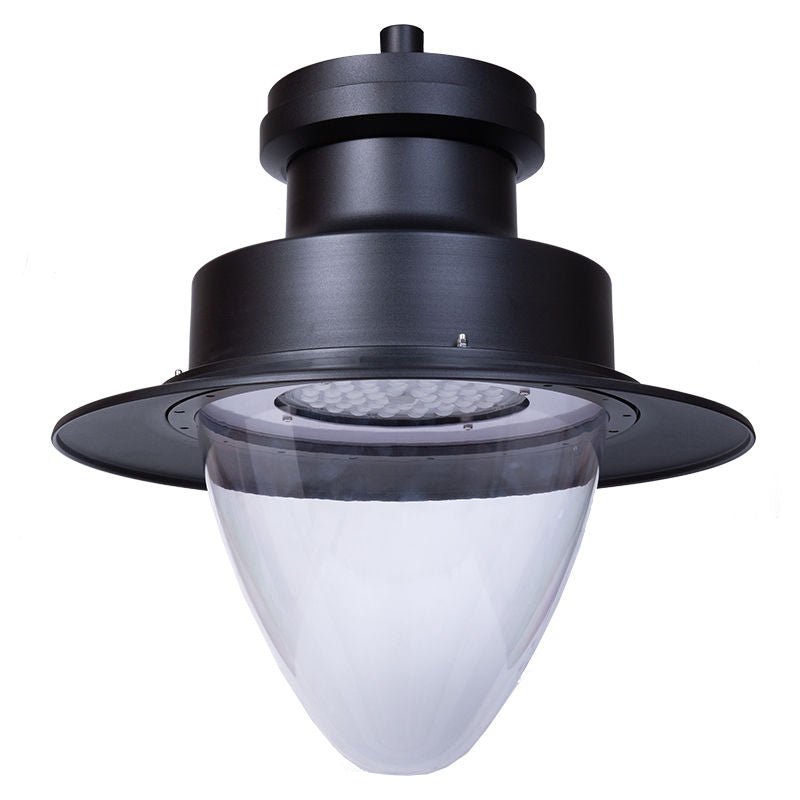

Westgate DAB - C25 - 50 - 100W - MCTP - BK 23" Designer Area Bell Light System, 50W/80W/100W, 30K/40K/50K - Black - Sonic Electric
  • Brand: Westgate
  • Part #: DAB-C25-50-100W-MCTP-BK

Westgate DAB-C25-50-100W-MCTP-BK 23" Designer Area Bell Light System, 50W/80W/100W, 30K/40K/50K - Black

$403.74

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

Fast & Reliable Shipping

Orders processed in 1–2 business days.

Hassle-Free Returns

30-day returns on eligible items. Read Terms

Knowledgeable Support

Get expert help via chat, email or phone.

Top-Rated Store

Trusted by 20,000+ customers. Read Reviews

Product Details

Description

Technical Specs

  • Voltage: 100-277V AC 50/60Hz
  • Wattage: 50W/80W/100W
  • Power Factor: 0.9
  • THD20%
  • Efficacy: 140LM/W
  • AL1060 Aluminum Housing, Outdoor Powder Coating
  • Photocell Included (with Disconnect Switch) Twist-Lock Zhaga Socket Pre-Installed. See Motion
  • Sensor Accessories.
  • 6' SJTW 18,3 AWG Power Cable
  • 6' SJTW Dimming Cable
  • Aluminum LED Board: High Conductive, Waterproof, Aging Resistance, Salt Resistance
  • Operating Temperature: -40F~104F
  • IP Rating: IP66, Suitable for Wet Locations
  • 7-Year Warranty
  • Multi CCT and Power: Selectable Switch Inside of the Fixture
  • Dimmable: 0~10V Dimming
  • Lens: High Light Transmittance PC, anti-UV, and Fire Resistant
  • LED: Lumileds 2835
  • Total Lumens: 14000LM Max.
  • Color Temperature: 3000K/4000K/5000K
  • Color Rendering index: 70
  • Beam Angle: Type V (150 X 150)
  • Lifespan: 70000 Hrs.

Applications

  • Ideal for gardens, amusement parks, residential areas, industrial parks, and pedestrian streets.

Download PDF File

Specification
