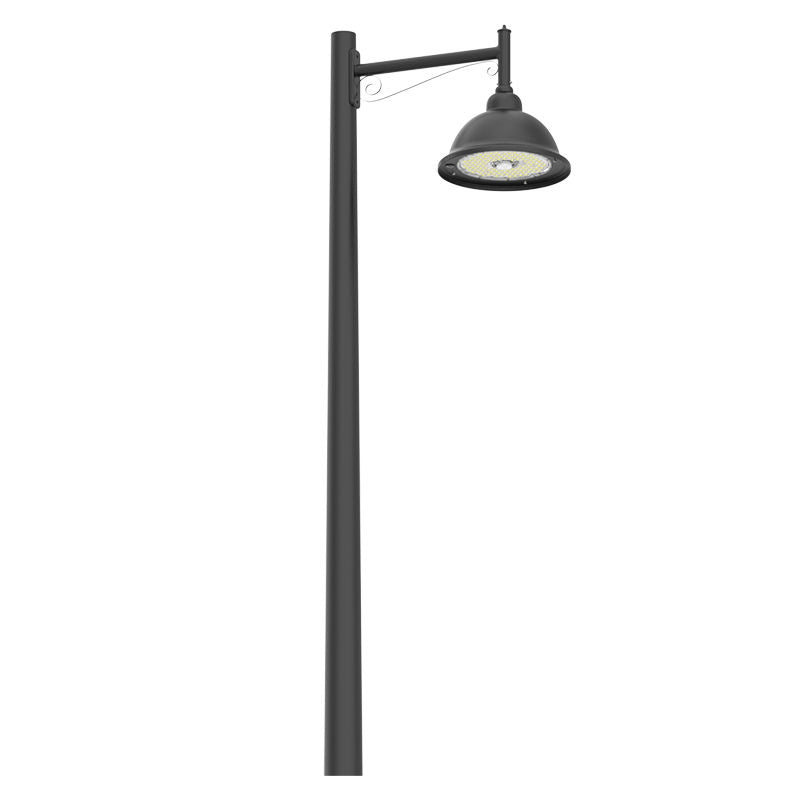

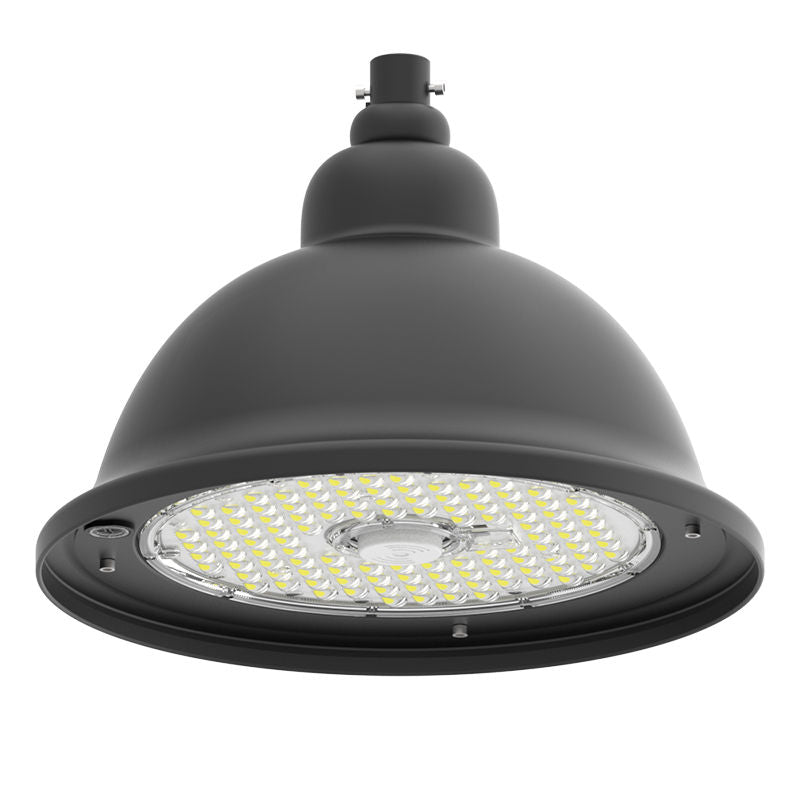

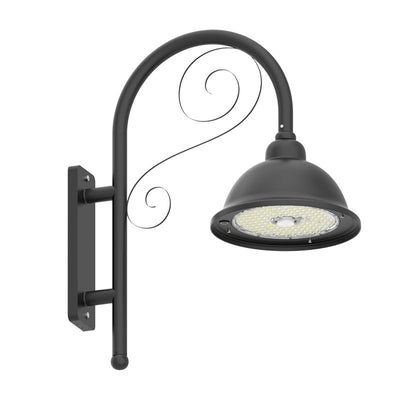

Westgate DAB-A16-50-100W-MCTP-SR Designer Area Bell Light System - Black
Pairs well with
Orders ship in 1-2 business days
30-day returns View our policy
Top rated store Read reviews
Safe & secure checkout
Product details
Description
Technical Specs
- Voltage: 100-277V AC 50/60Hz
- Wattage: 50W/80W/100W/150W
- Power Factor: 0.9
- THD20%
- Efficacy: 130LM/W
- AL1060 Aluminum Housing, Outdoor Powder Coating
- Twist-Lock Zhaga Socket Pre-Installed. See Motion
- Sensor Accessories.
- 6€šš€šž SJTW 18,3 AWG Power Cable
- 6€šš€šž SJTW Dimming Cable
- Aluminum LED board: High Conductive, Waterproof, Aging Resistance, Salt resistance
- Programmable Bi-Level Motion Sensor Emergency Backup Options
- Operating Temperature: -40F~104F
- IP Rating: IP66, Suitable for Wet Locations
- 7-Year Warranty
- Multi CCT and Power: Selectable Switch Inside Of The Fixture
- Dimmable: 0~10V Dimming
- Lens: High Light Transmittance PC, anti-UV and Fire Resistant
- LED: Lumileds 2835
- Total Lumens: 13000LM-19500LM Max.
- Color Temperature: 3000K/4000K/5000K
- Color Rendering Index: 70
- Beam Angle: Type V (150 X 150)
- Lifespan: 70000 Hrs.
Applications
- Ideal for Gardens, Amusement Parks, Residential Quarters, Industrial Parks, and Pedestrian Streets.
