Technical Specifications:

• Voltage: 120-277V

• Power Factor: >0.90

• THD: <20%

• Wattage: 12W/16W/20W

• Efficacy: 80 LPW

• Dimension: 10”(H) X 4 3/4” (W) X 4 3/4” (D)

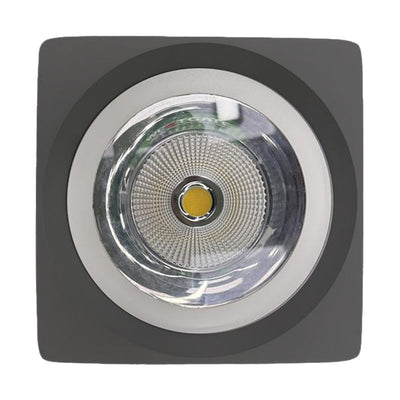

• Aluminum Housing & Glass Lens

• Suspension Cable & Canopy Set Accessories Avail.

• Universal Swivel W/ Rod Kit Accessories Avail. Ambient

• Operating Temperature: -13ºF to 113ºF

• Rated life: 70,000 hrs

• IP Rating: IP40 suitable for damp locations

• Dimming: (Dual Function) Triac Dimmable at 120V &0-10V Dimming at 120-277V

• Total Lumens: 1600LM Max.

• Color Temperatures: 3000K/4000K/5000K

• Color Rendering Index: CRI ≥ 80

• Beam Angle: 25°

Applications

4’’ Cylinder, Pendant & Ceiling Cylinder Light, AluminumCylinder, White Aluminum Housing, Clear Glass Lens
