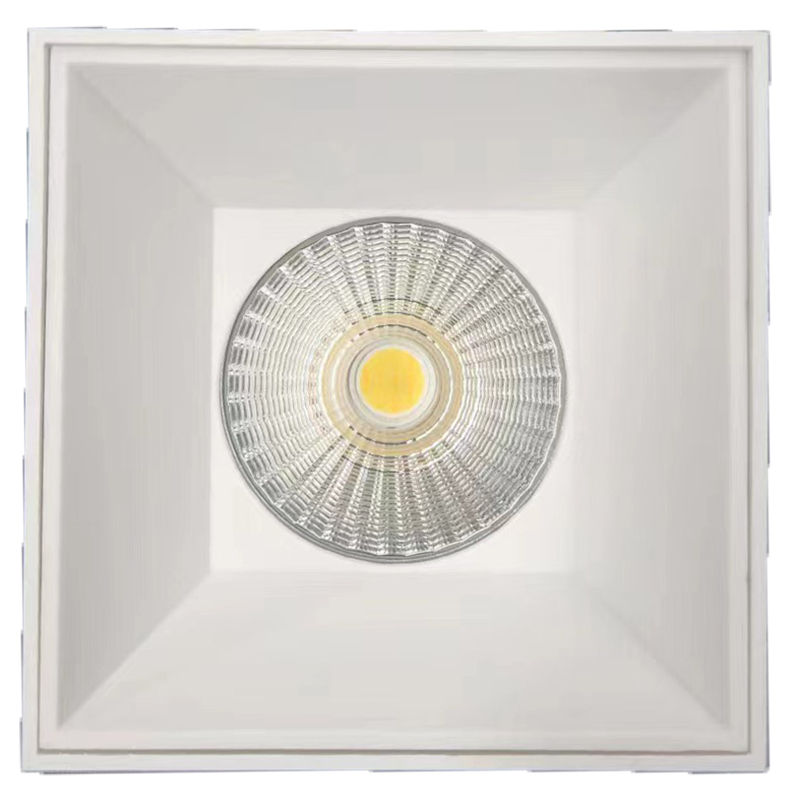

Westgate CMCS4-MCTP-DD-WH 1"-4" Square Architectural Ceiling Cylinder Light - White

WestgateSKU: CMCS4-MCTP-DD-WH

Price:
Sale price$151.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Voltage: 120-277V
  • Wattage: 6W/9W/12W/15W/20W/21W/28W/35W
  • Power Factor: >0.90
  • THD: 20%
  • Efficacy: 70-75 LPW
  • Aluminum Housing & Glass Lens
  • Suspension Cable & Canopy Set Accessories Available
  • Universal Swivel w/ Rod Kit Accessories Available. Ambient Operating Temperature: -13ºF to 113ºF
  • IP Rating: IP40 Suitable for Damp Locations
  • Multi CCT: Selectable Multi-CCT Switches on the Back of the Fixture (Dual Function)
  • Dimming: (Dual Function) TRIAC Dimmable at 120V & 0-10V Dimming at 120-277V
  • Total Lumens: 450LM/630LM/1500LM/2800LM/1125LM Max.
  • Color Temperatures: 3000K/4000K/5000K
  • Color Rendering Index: CRI ‰¥ 80
  • Beam Angle: 25
  • 7 Year Warranty
  • Rated life: 50,000 hrs

Applications

  • 2" Cylinder, Pendant & Ceiling Cylinder Light, Aluminum Cylinder, White Aluminum Housing, Clear Glass Lens
