Westgate CMC4S - MCTP - DD - BK 4" Round Architectural Ceiling & Suspended Cylinders, 9W/12W/15W, 30K/40K/50K - Black - Sonic Electric
  • Brand: Westgate
  • Part #: CMC4S-MCTP-DD-BK

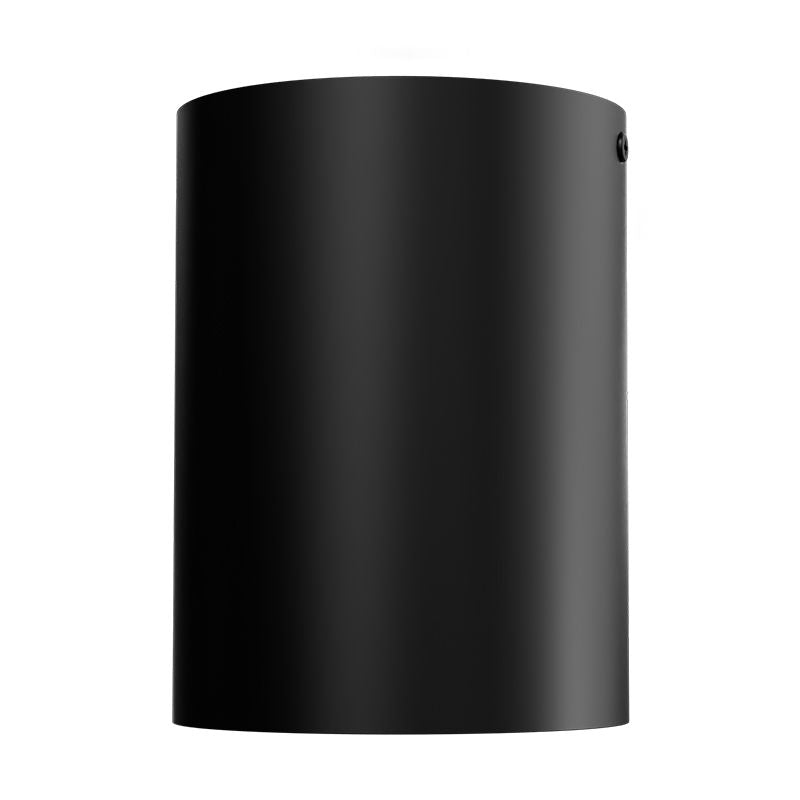

Westgate CMC4S-MCTP-DD-BK 4" Round Architectural Ceiling & Suspended Cylinders, 9W/12W/15W, 30K/40K/50K - Black

$113.74

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

Fast & Reliable Shipping

Orders processed in 1–2 business days.

Hassle-Free Returns

30-day returns on eligible items. Read Terms

Knowledgeable Support

Get expert help via chat, email or phone.

Top-Rated Store

Trusted by 20,000+ customers. Read Reviews

Product Details

Description

Technical Specs

  • Voltage: 120-277V
  • Power Factor: 0.90
  • Wattage: 9W/12W/15W
  • Efficacy: 76 LPW
  • THD: 20%
  • Aluminum Housing Glass Lens
  • Suspension Cable Canopy Set Accessories Avail.
  • Universal Swivel W/ Rod Kit Accessories Avail. Ambient Operating Temperature: -13F to 113F
  • IP Rating: IP40 suitable for damp locations
  • 7-Year Warranty
  • Multi CCT: Selectable Multi-CCT Power Switches on the back of the fixture(Dual Function)
  • Dimming: (Dual Function) Triac Dimmable at 120V 0-10V Dimming at 120-277V
  • Total Lumens: 1140 LM Max.
  • Color Temperatures: 3000K/4000K/5000K
  • Color Rendering Index: CRI %80
  • Beam Angle: 40
  • Rated life: 70,000 hrs

Applications

  • 4" Cylinder, Pendant Ceiling Cylinder Light, Aluminum Cylinder, White Aluminum Housing, Polycarbonate (PC) Lens

Download PDF File

Specification

Installation Instructions
