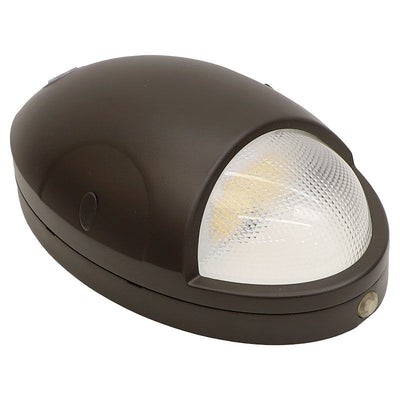

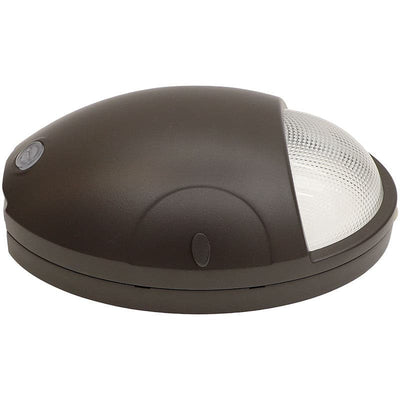

Westgate Builder Series Decorative Outdoor LED AC/Emergency Unit

WestgateSKU: DELW-15W-MCT-BK

Color: Black
Price:
Sale price$165.74

Shipping calculated at checkout

Stock:
In stock

Description

Technical Specs

  • Voltage: 120-277V AC 50/60Hz
  • Wattage: 15W
  • Power Factor: >0.90
  • Total Harmonic Distortion: ‰¤20 %
  • Efficacy: 130/137/130LPW
  • Includes Pre-wired Photo Electric Control (Dusk to Dawn)
  • Back plate: Die-cast aluminum
  • Polycarbonate Housing & Lens
  • Operating Temperature: -31ºF to +212ºF
  • 7-Year Warranty
  • IP65, Suitable for Wet Location
  • Output Power: 4W
  • Output Current: 400mA
  • Output Voltage: 60VDC
  • Li-ion 3.7V/2500mAh
  • IP67 Stainless Steel Test Button with Integrated Indicator
  • Minimum 90 Minutes of Emergency Operation
  • Multi-CCT (The switch is inside the fixture)
  • Dimming: 0-10V Dimming
  • LED Type/Brand: 2835 Lumileds
  • Front: Polycarbonate Lens and Housing
  • Total Lumens: 1950LM/2025LM/1950LM
  • Color Temperatures: 3500K/4000K/5000K
  • Color Rendering Index: CRI ‰¥ 80
  • Beam Angle: 100
  • Rated life: 70,000Hrs

Applications

  • Entrance lighting, courtyard lighting
  • Industrial lighting, outdoor landscape lighting
  • Building, the hotel
  • Wall lighting area and so on

Download PDF File

Specification
