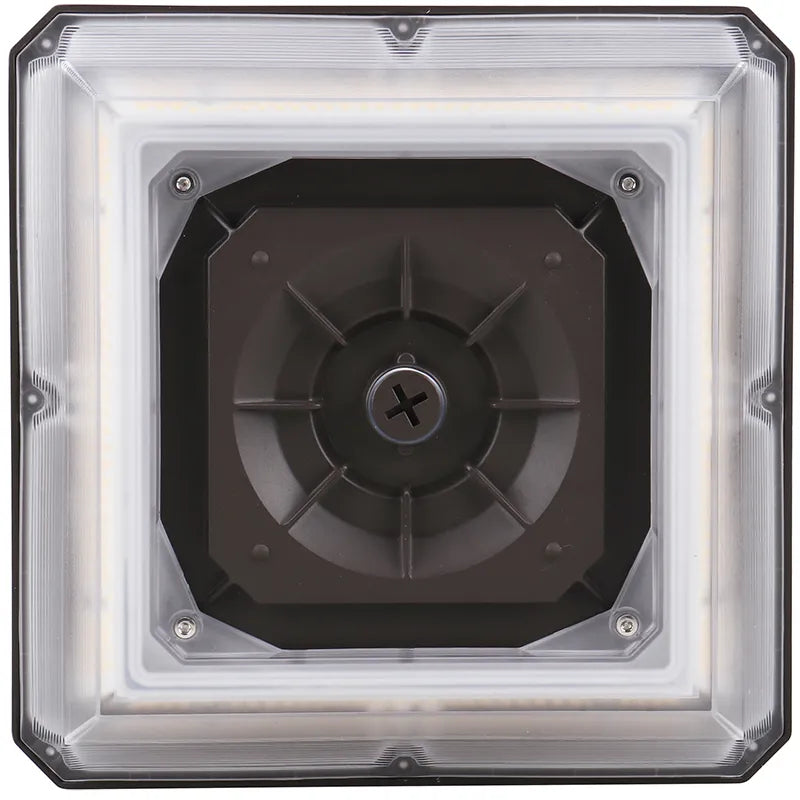

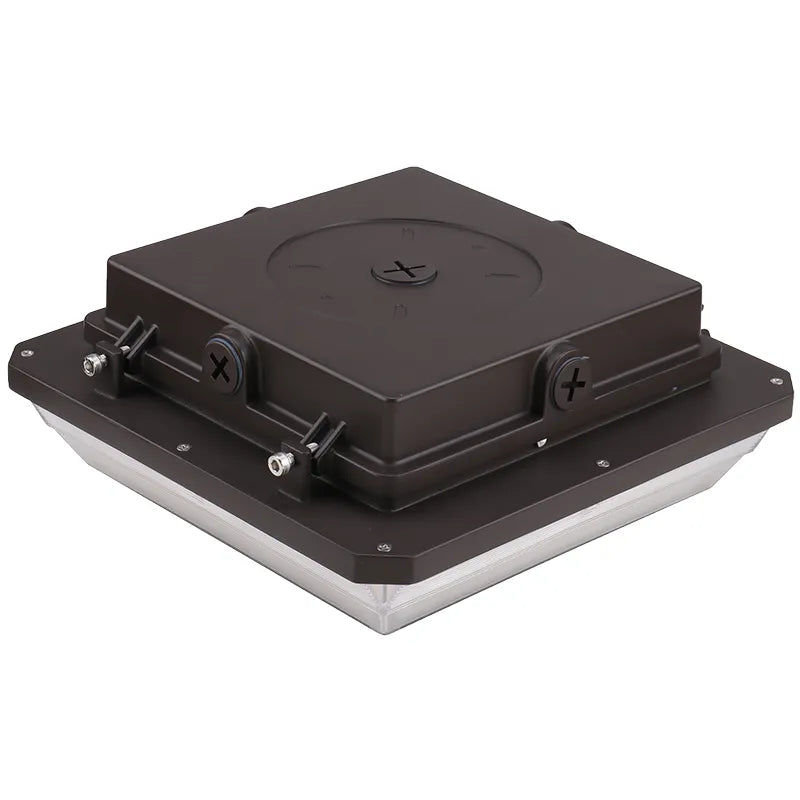

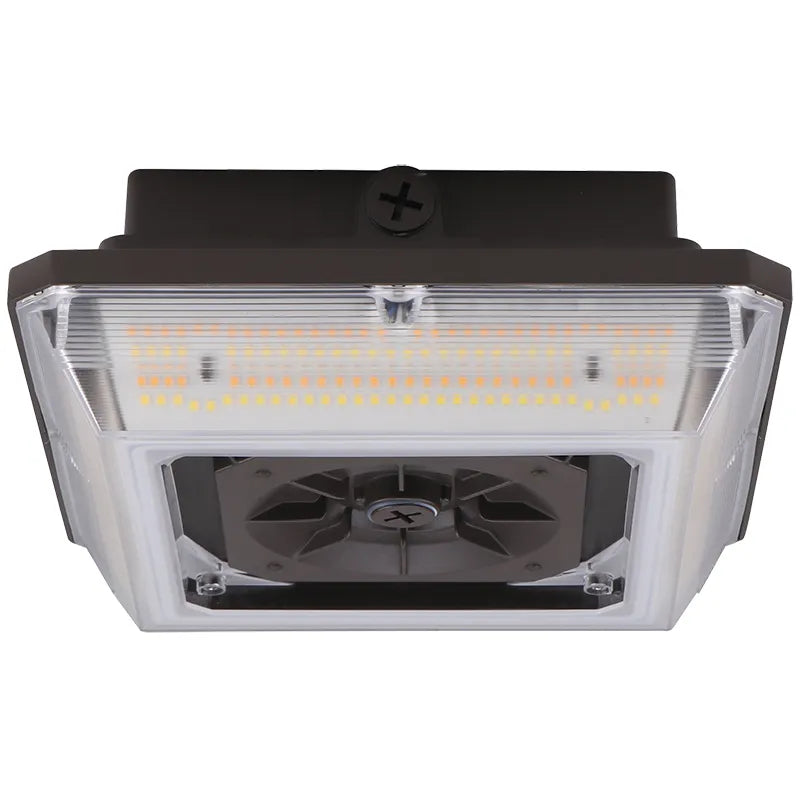

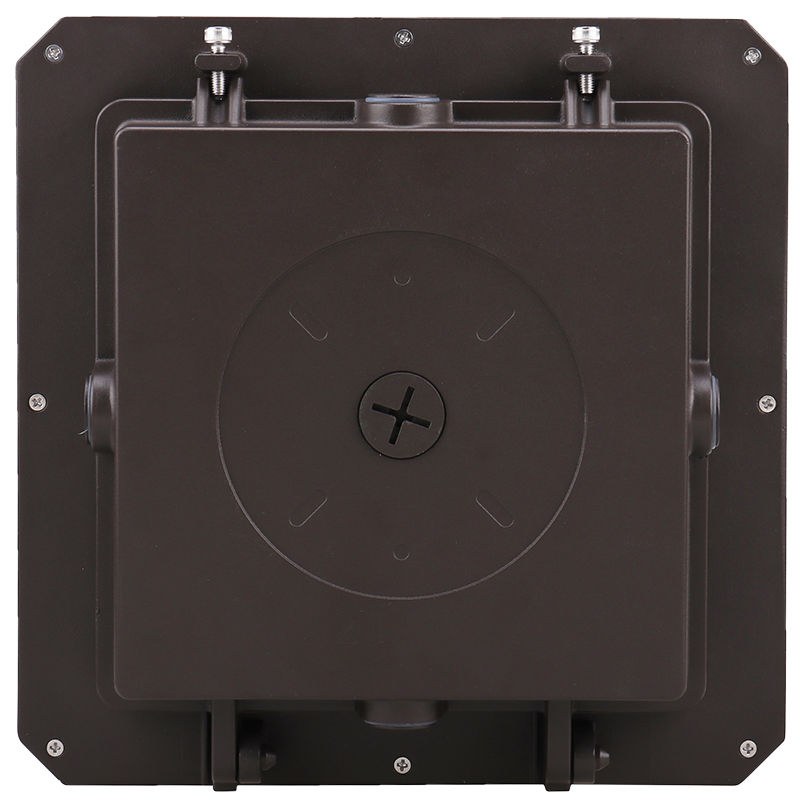

Westgate Angled-Beam Garage Canopy, CCT & Wattage Selectable

WestgateSKU: CAX-20-45W-MCTP-SR

Wattage: 45W
Price:
Sale price$120.74

Shipping calculated at checkout

Stock:
In stock

Description

Technical Specs

  • Input Wattage: 20W/30W/45W or 30W/45W/60W or 40W/60W/75W or 60W/75W/90W
  • Input Current: 0.6A Max.
  • Input Voltage: 120-277VAC 50/60Hz
  • Power Factor: >0.90
  • LPW: 140
  • Die-cast aluminum
  • Four 1/2" threaded hubs located on four sides of the housing
  • Sensor-Ready: 3-pin socket pre-installed. See motion sensor accessories
  • Prismatic Polycarbonate Lens
  • Operating Temperature: -40F ~ 131F
  • IP rating: IP65, Wet Location
  • 7-Year Warranty
  • Multi Color Temperature & Multi Power (Selectable Switch Located on the Housing)
  • Dimming: 0~10V Dimmable
  • Total lumens: 6300LM
  • Color Temperature: 3000K/4000K/5000K
  • Color Rendering Index: >80
  • Beam Angle: 150
  • Lifespan: 70000 Hrs.

  Applications

  • Indoor Parking
  • Commercial Buildings
  • School
  • Warehouses
  • Complexes
  • Apartment
  • Garage

 Features

  • https://ik.imagekit.io/i8bwuhiaq8/o/icons%2FUL_Listed.jpg?alt=media
  • https://ik.imagekit.io/i8bwuhiaq8/o/icons%2FWET_LOCATION_WEB.jpg?alt=media
  • https://ik.imagekit.io/i8bwuhiaq8/o/icons%2FIP65.png?alt=media
  • https://ik.imagekit.io/i8bwuhiaq8/o/icons%2FDimming_0-10V.png?alt=media
  • https://ik.imagekit.io/i8bwuhiaq8/o/icons%2F7_yr_warranty.jpg?alt=media
  • https://ik.imagekit.io/i8bwuhiaq8/o/icons%2FMCTP.jpg?alt=media

    Download PDF File

    Specification

    Installation Instructions
