Description
Technical Specs
- Voltage: 120V AC
- Output Voltage: 36VDC
- Power Factor: 0.90
- Wattage: 15W
- Efficacy: 90 LPW
- Total Harmonic Distortion:15 %
- 1-1/4‚š�Thick
- Smooth Trim, Baffle Trim Insert Included.
- Up to 9 AWG18 Wires
- Durable, Die-Cast Aluminum Alloy For Optimal Heat Dissipation

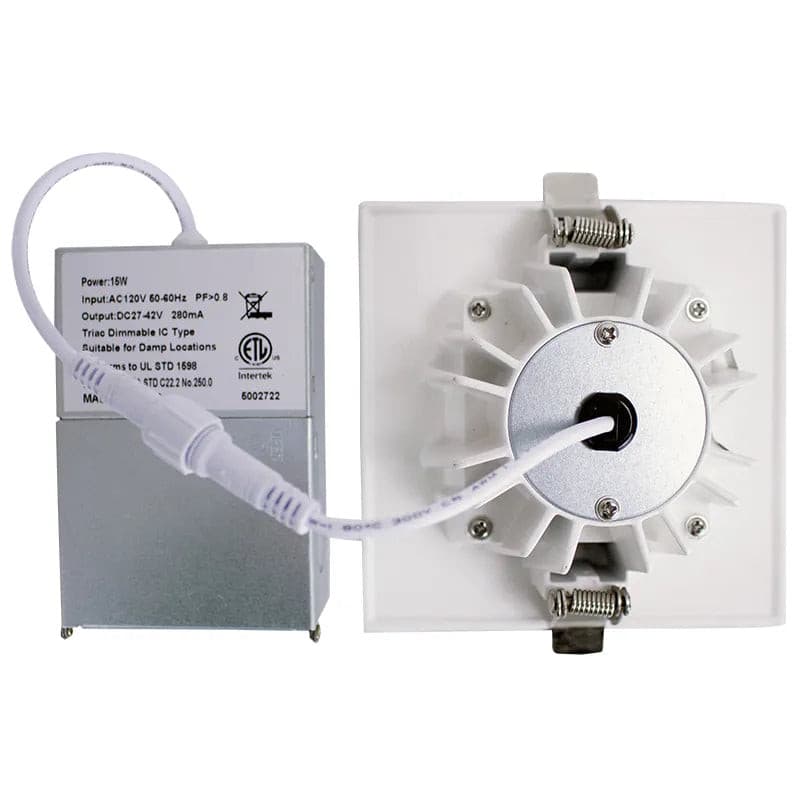

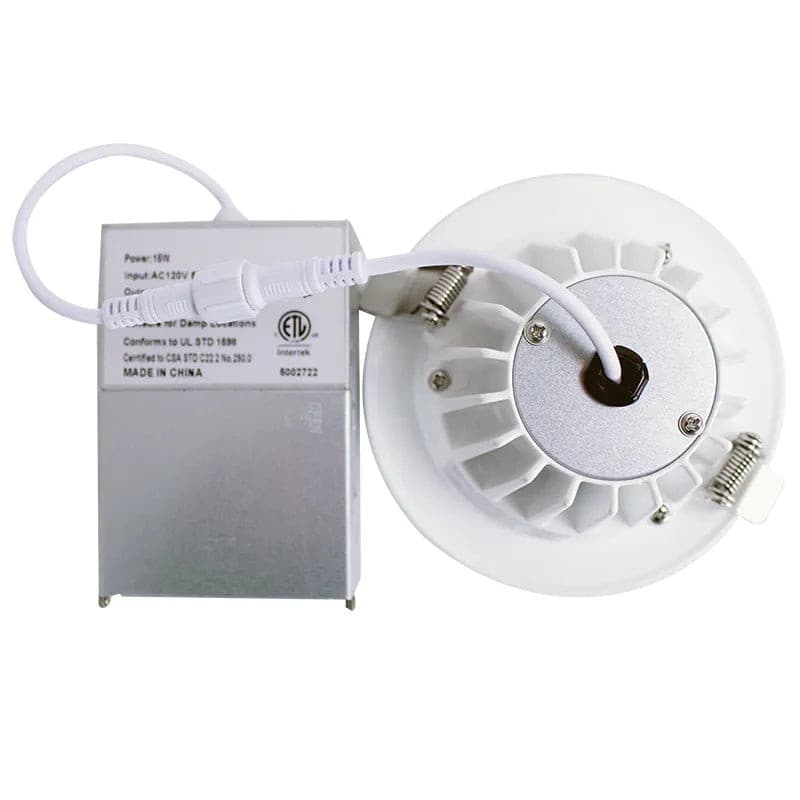

- Junction box Included, installed directly in Insulated Ceilings (IC) Without Any Thermal Housing
- Maximum Ambient Temperature: -40F to 104F
- Damp Location
- 5-Year Warranty
- Multi CCT (Selectable Switch on the Back of the driver )
- Dimming: Dimmable Down to 10% Using a Standard TRIAC LED Dimmer
- Can Rotate after Installation to Align
- LED: High Brightness COB LED
- Optics: White Translucent Acrylic
- Total Lumens: 1350LM
- Color Temperatures: 2700K/3000K/3500K/4000K/5000K
- Color Rendering Index: CRI 90
- Beam Angle: 36
- Rated Life: 50,000 hrs
Applications
- LED recessed trims have been designed to be a flexible lighting solution for new construction applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications
Download PDF File
Catalog Page
Specification
Installation Instructions
