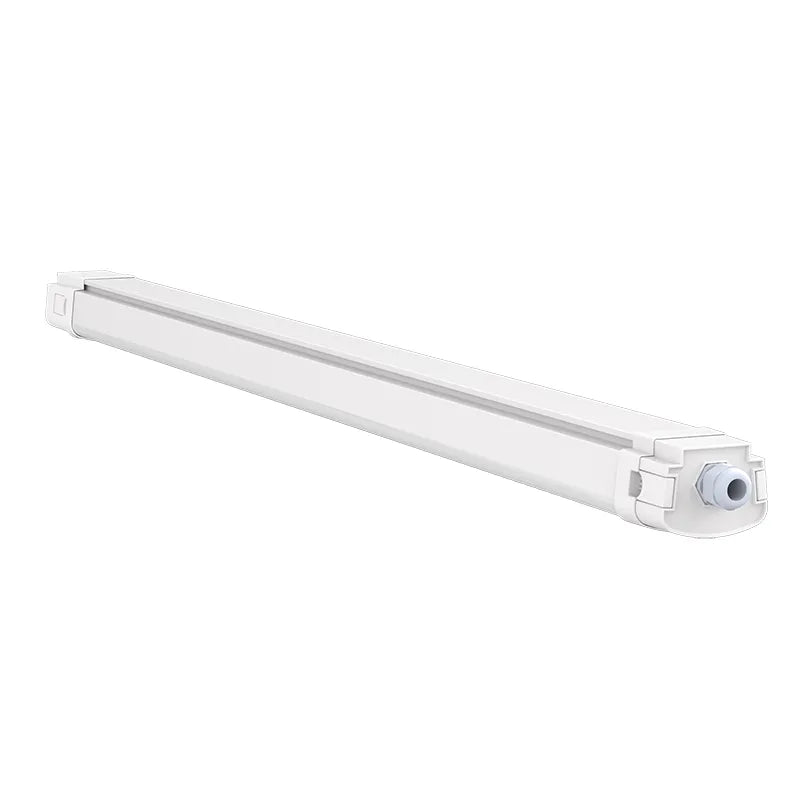

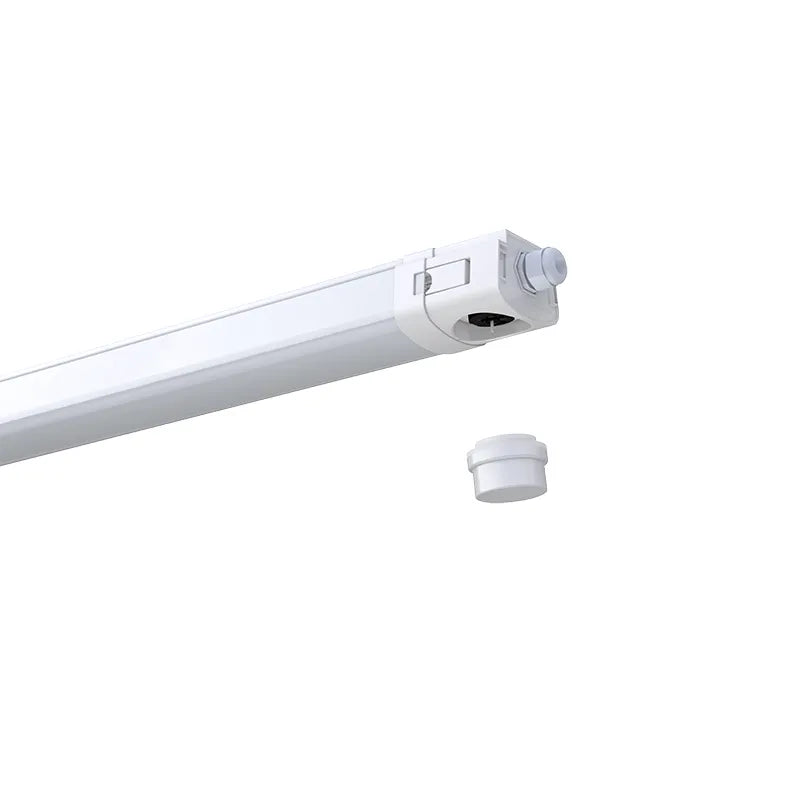

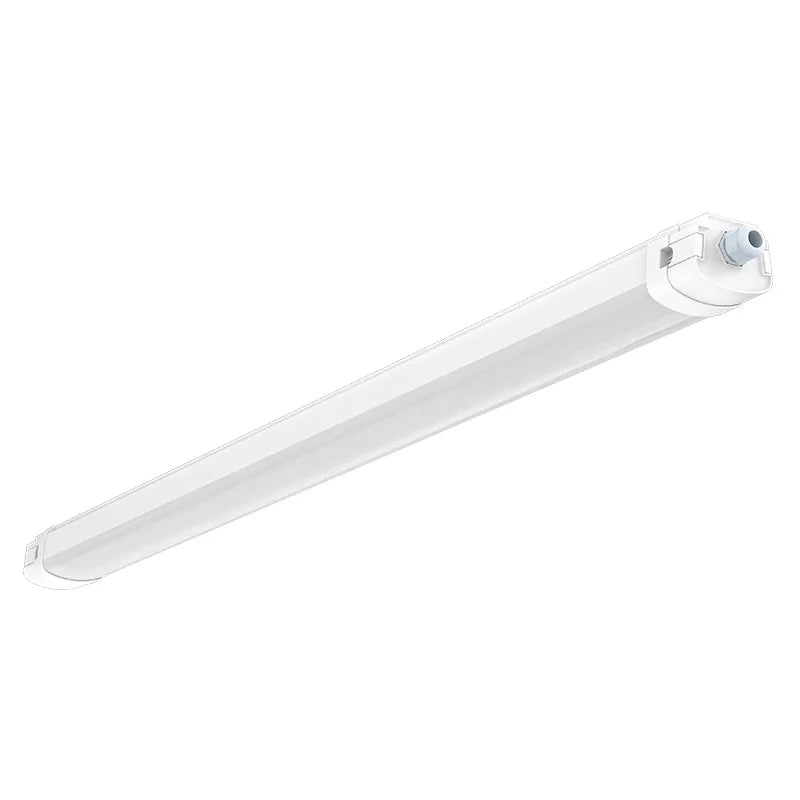

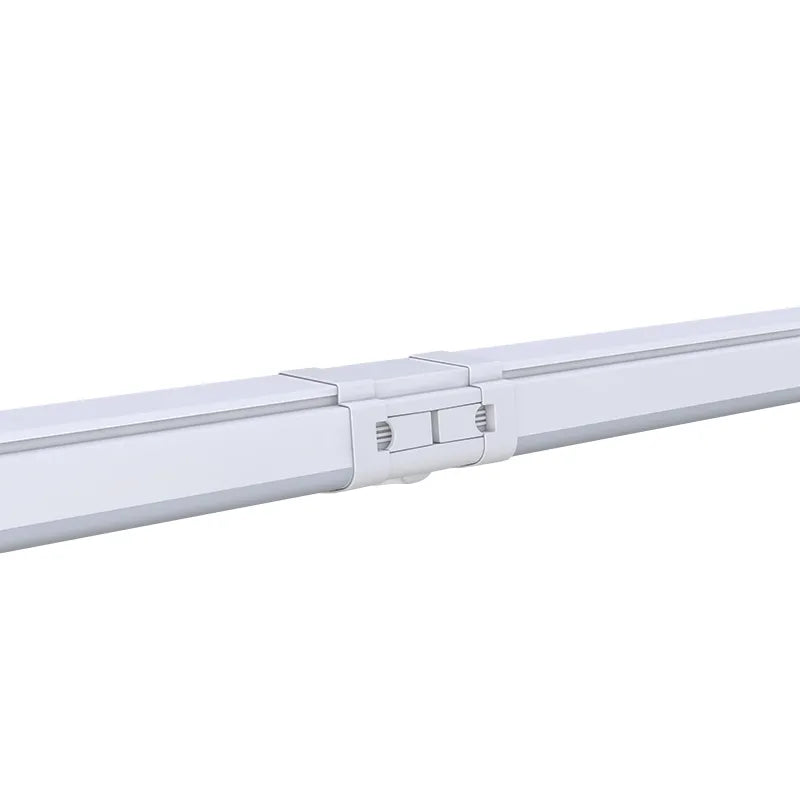

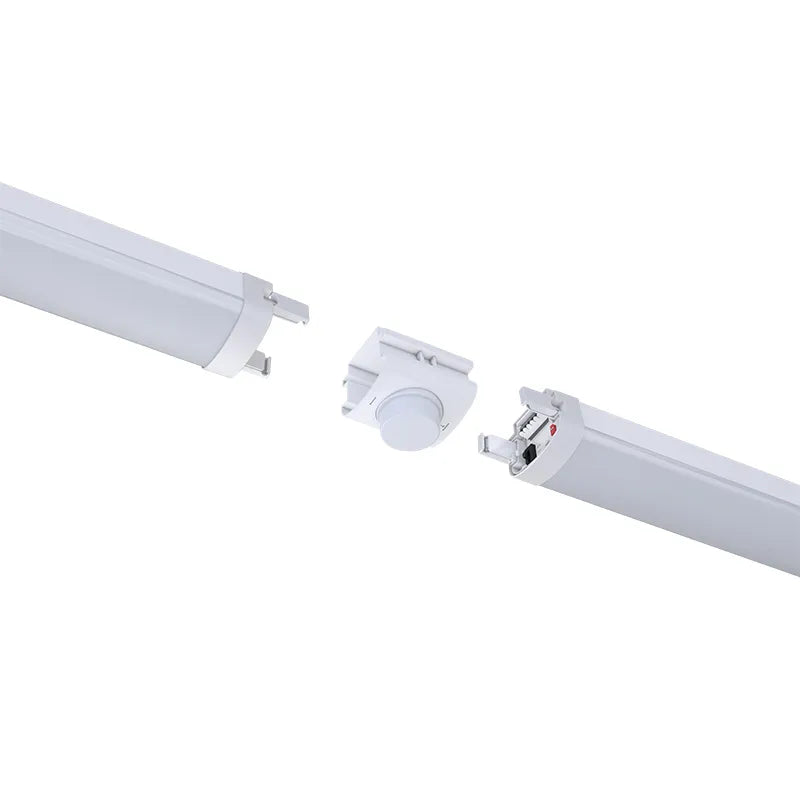

Westgate 2FT/4FT/8FT Quick Connect Modular Linear Vapor Lights

WestgateSKU: LTPV-2FT-18W-MCTP-D

Size: 2 Feet
Price:
Sale price$60.74

Shipping calculated at checkout

Stock:
In stock

Description

Technical Specs

  • Voltage: 120-277V AC 50/60Hz
  • Wattage: 10W/15W/18W (2ft)
  • 20W/28W/36W (4ft)
  • 55W/65W/70W  (8ft)
  • Power Factor: >0.98
  • Efficacy: 130 LPW
  •  Grey Finish
  •  Housing: Polycarbonate
  •  Vandal-Proof Polycarbonate Lens
  •  Polycarbonate Construction Highly Impacts Resistant
  •  UV-Stabilized Polycarbonate Diffuser Eliminates Glare
  •  Diffuser crystals enhance even light distribution
  •  Operating Temp: -22F to 104F
  • IP Rating: IP66, Suitable for Wet Locations
  •  5-Year Warranty

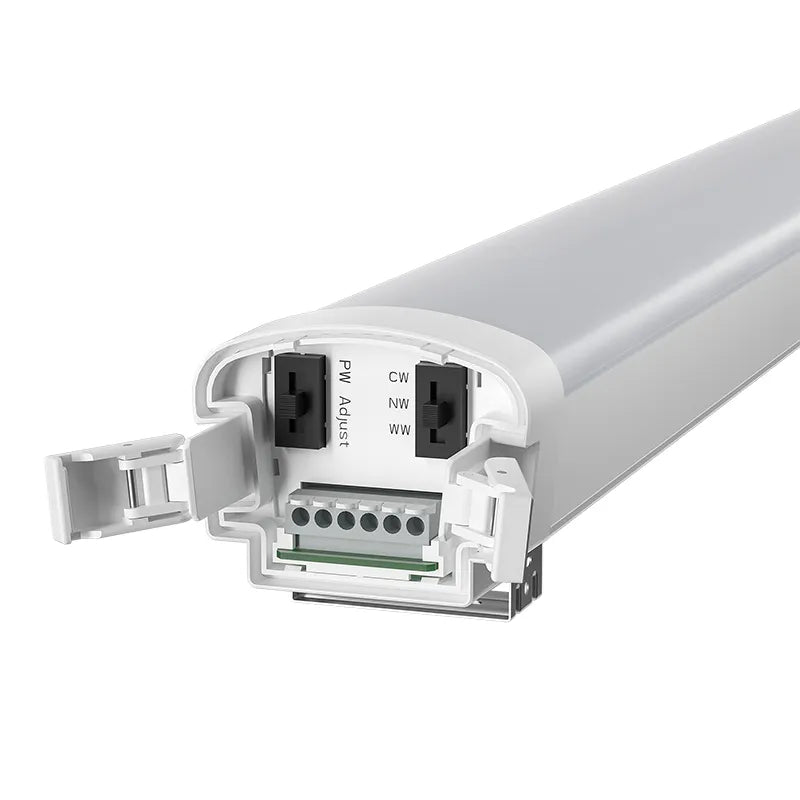

  •  MCTP: Multi Color Temperature & Multi Power/Wattage (Selectable)
  •  Dimmable: 0~10V Dimming
  •  LED SMD Type: 2835
  •  Total Lumens: 2340LM/4680LM/10500LM
  • Color Temperatures: 3000K/4000K/5000K
  •  Color Rendering Index: CRI ‰¥ 80

Applications

  •  Ideal for offices, retail stores, showrooms, and residential applications. Uniquely suited for areas where accessing the fixture is challenging
  •  Suitable for restaurants, bakeries, food facilities, gyms, pool areas, and any application where NSF certified fixtures or high-end architectural designer grade fixture are required
