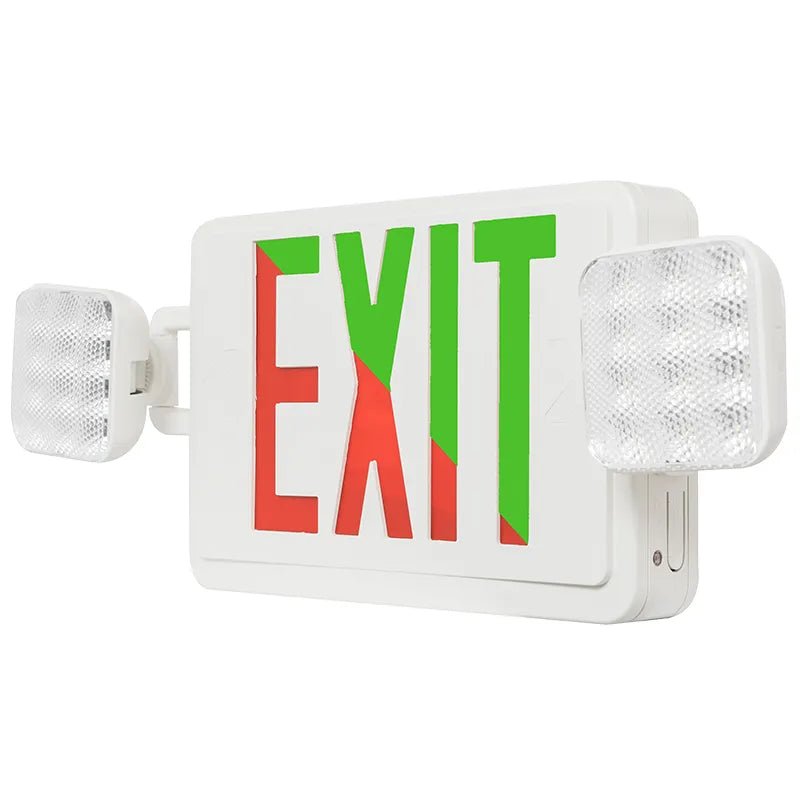

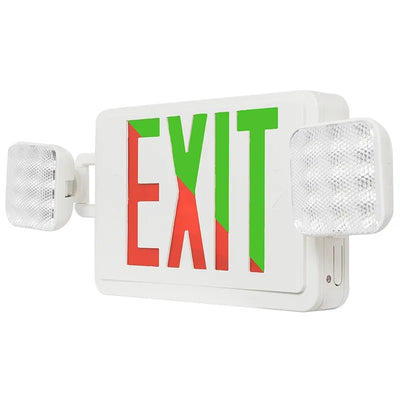

Westgate 2-in-1 Color-Selectable Universal Combo Exit Unit

WestgateSKU: XTU-CL-RG-EM

Finish: White
Price:
Sale price$50.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • 120V/277V AC Dual Voltage Operation
  • Light Head Wattage: 2.4W Per Head
  • Sign Wattage: 3.5W
  • Input Power: 2.90-3.79W
  • AC Charging Current: 32mA
  • Fully Automatic Solid-State, Two Rate Charger Initiates Battery Charging to Recharge a Discharged Battery in 24 Hours
  • Built-in 3.6V 1200mAh Ni-Mh Battery for Minimum 90 Minutes Emergency Operation
  • Injection-Molded Thermoplastic ABS Housing and Polycarbonate Cover, UL 94V-0 Flame Rating
  • Injection-Molded Thermoplastic ABS Housing and Polycarbonate Cover, UL 94V-0 Flame Rating
  • Red & Green Lenses are Included. The Default is Red
  • To Change Color of the Sign Change the Lens & Flip the Color Switch Inside
  • Single or Double Face (Universal)
  • Letters 6" Height with 3/4" Stroke
  • Operating Temperature: 32ºF~104ºF
  • Maximum 24 Hours for Full Recharge Time
  • Universal J-Box Mounting Pattern
  • Injection-Molded Thermoplastic ABS Housing and Polycarbonate Cover, UL 94V-0 Flame Rating
  • Innovative, Easy Installation in Minutes
  • IP20, Indoor Use Only
  • Color Temperature: 6132K
  • Total Lumens: 8 (AC)/ 272
  • Options at checkout: Remote Capable (designed with a high capacity battery backup system that is capable of powering one or more additional external emergency light remote heads for the 90 minute minimum emergency run time)

  Applications

  • Ideal for every exit door, at the intersection of corridors, at exit stairways or ramps and such other locations

Download PDF File

Specification
