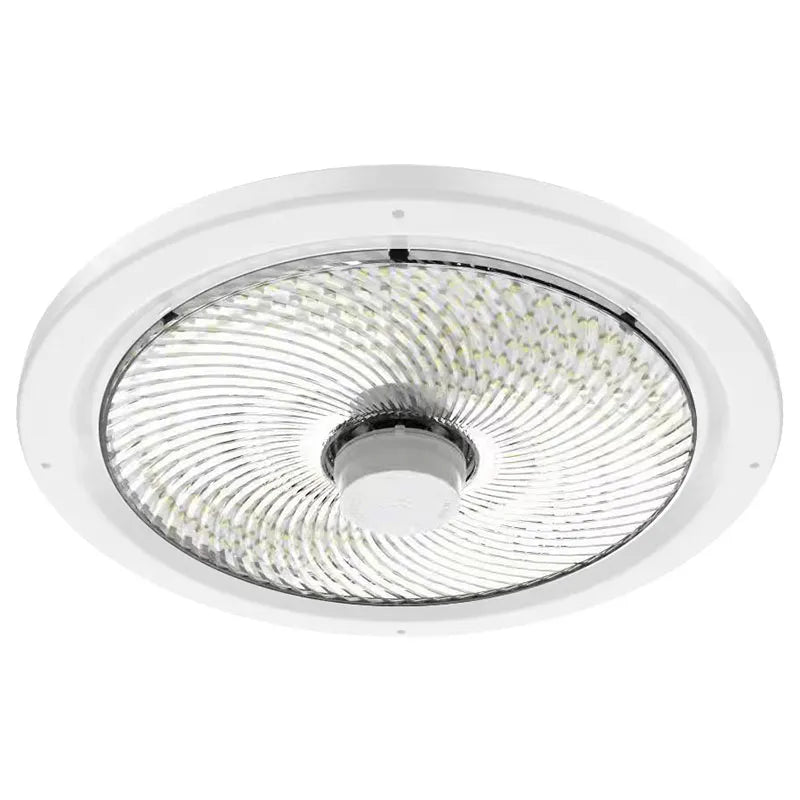

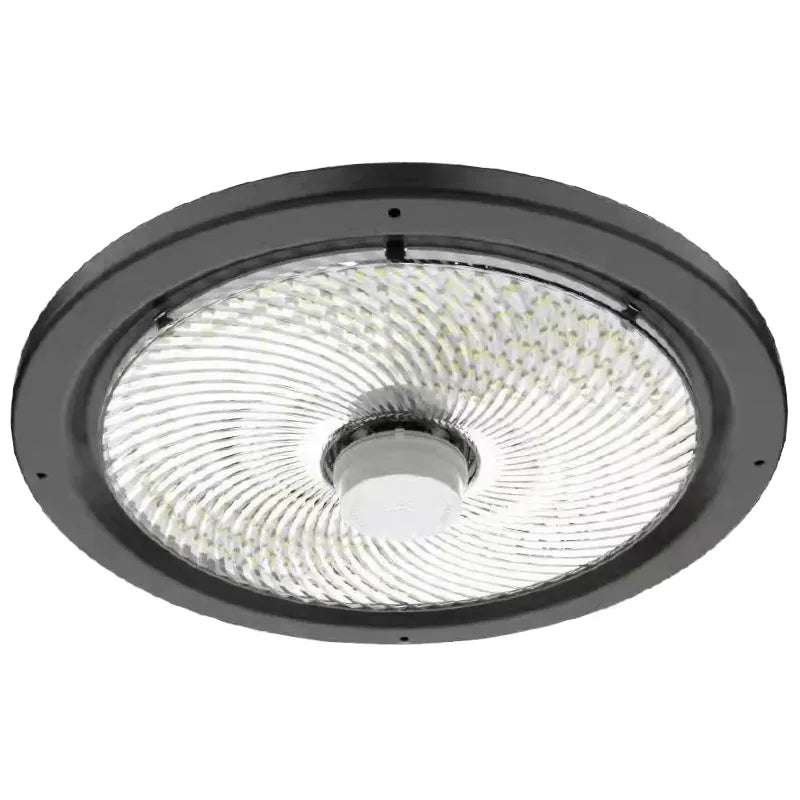

Westgate 80W-220W Builder Series Power and CCT - Adjustable UFO Highbay LED Light

Technical Specs

• Input Wattage: 80W-220W
• Input Voltage: 120-277V 50/60Hz
• Power Factor: 0.9
• THD: 20%
• Efficacy: 140 LPW
• Aluminum Heat Sink, Outdoor Powder Coating Finish
• Nano Coating Heat Dissipation Technology
• Optical Lens: PC Materials High Light Transmittance, Anti-UV, Fire-Resistant
• Twist-Lock Zhaga Socket Pre-Installed. See Motion Sensor Accessories
• 3.3' SJTW 18, 3 AWG Power Cable
• 3.3' SJTW Dimming Cable
• LED PCB Board: High Conductive, Waterproof, Aging Resistance, Salt Mist Resistance, Ensure the Safety and Long Lifespan
• Operating temperature: -40F to 122F
• IP rating: IP65, Wet Locations
• 5-Year Warranty
• Dimming: 0~10V
• Total Lumens: 21000LM-30800LM
• Multi Color Temperature Multi Power (Selectable Switch Located on the Driver Housing)
• Color Temperatures: 3000K/3500K/4000K/5000K
• Color Rendering Index: 80
• Beam Angle: 90
• Lifespan: 50,000 Hrs

Applications

• Ideal for general site lighting, alleys, loading docks, doorway, pathway, parking areas, warehouses, and storage buildings.
