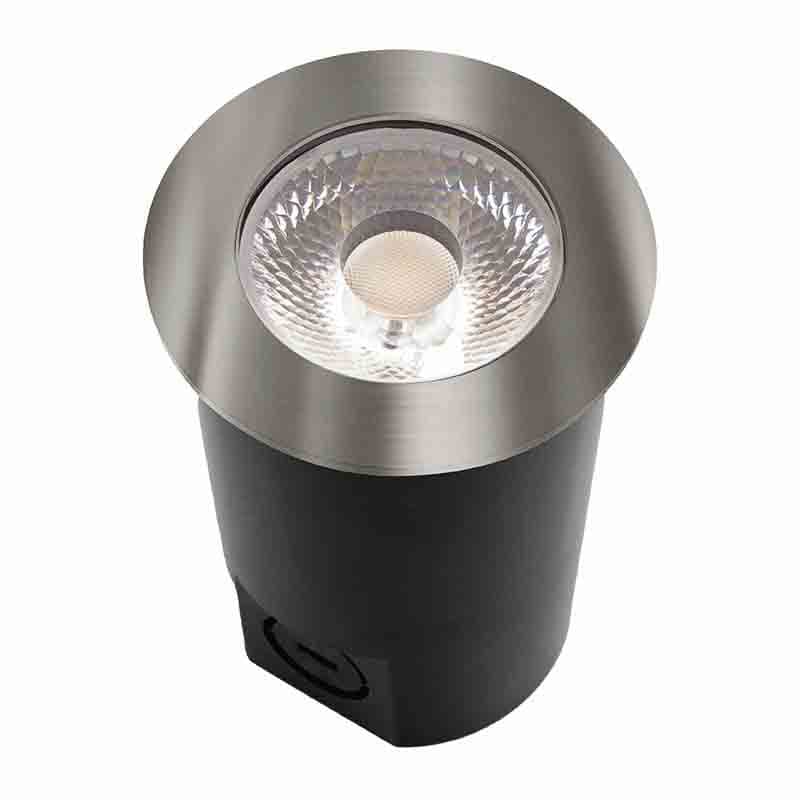

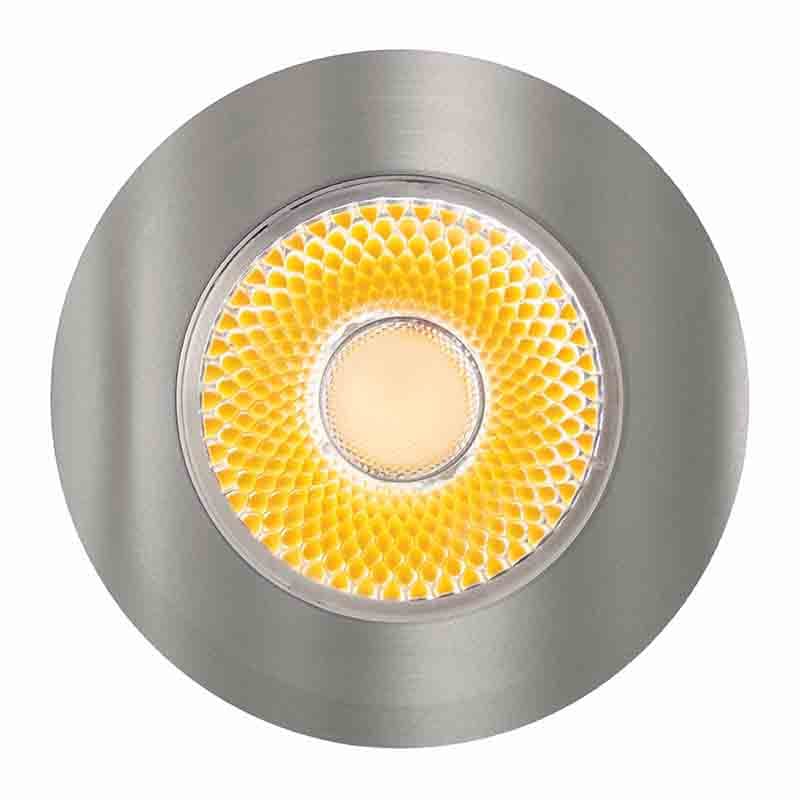

Westgate 12V Aluminum Integrated LED In Ground Lights

• Die-cast aluminum housing
• Traffic rated: not likely to get damaged from activity around the light, including lawn care, as well as foot and auto traffic
• Solid state lighting technology for long life, no maintenance needed and high-efficiency
• 4" PVC sleeve with three 1/2-inch KO. 2 on sides, 1 on bottom.
• High conductive aluminum LED board
• LED: Built in integrated LED
• Optical PC Flat Lens
• Lumens: 320LM, 720 LM
• Wattage: 3W or 7W
• Voltage: 12-24V AC/DC
• Input Current: 1A Max
• Efficacy: 106LPW
• Beam Angle: 30
• Power Factor: 0.9
• Operating Temperature: -4F ~ 104F
• Color Rendering Index: CRI 90
• Color Temp: 3000K
• Lifespan: 50,000 hours
• 1-year warranty
• IP Rating: IP67, Wet Location

Download PDF File

Specification

Installation Instructions
