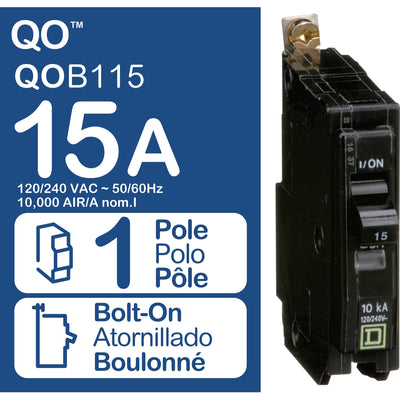

Square D QOB115 1-Pole 15-Amp Bolt-On Circuit Breaker

Square DSKU: QOB115

Price:
Sale price$15.00

Shipping calculated at checkout

Stock:
Only 5 units left

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Experience reliable overcurrent protection and seamless switching for AC systems with the QO and QOB series miniature circuit breakers. Crafted for efficiency and durability, these circuit breakers boast an over center, trip-free toggle mechanism, ensuring quick make and break actions with positive handle indication. Featuring VisiTrip technology, they offer clear visual cues upon tripping, guaranteeing interrupted circuit awareness.

Key Features:

  • Model: QO (Quick Open) / QOB (Quick Open Bolt-on)
  • Poles: 1 Pole
  • Current Rating: 15 A
  • Voltage Rating: 120/240 V AC
  • Mounting Type: Bolt-on
  • Circuit Breaker Type: Standard
  • Ratings: HACR (Heating, Air Conditioning, and Refrigeration) and Switching Duty Rated
  • Electrical Connection: Pressure Plate
  • Interrupt Rating: 10 kA @ 120/240 V AC 50/60 Hz, 10 kA @ 120 V AC 50/60 Hz
  • Wire Size: AWG 14...AWG 8 (copper or aluminum)
  • Tightening Torque: 35.40 lbf.in (4 N.m)
  • Dimensions:
    • Height: 2.99 in (76 mm)
    • Width: 0.75 in (19 mm)
    • Depth: 2.91 in (74 mm)
  • Net Weight: 0.28 lb(US) (0.127 kg)
  • Certifications: UL Listed, CSA
  • Ambient Rating: 104 °F (40 °C)
  • Country of Origin: IE

Ordering and Shipping Details:

  • Category: US10DE200015
  • Discount Schedule: 0DE2
  • GTIN: 785901416708
  • Returnability: Yes

Ensure seamless circuit protection and switching with QO and QOB miniature circuit breakers, designed to meet stringent UL and CSA standards. Made for easy bolt-on installation, these breakers are a reliable choice for various electrical applications.
