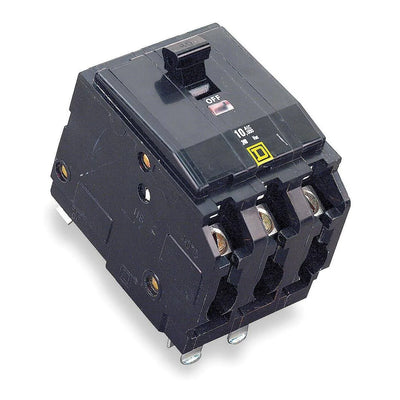

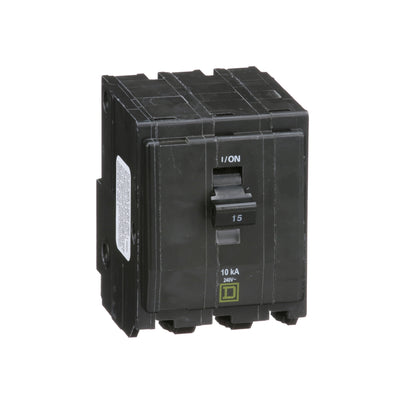

Square D QO315 3-Pole 15-Amp Circuit Breaker, Used

Square DSKU: QO315

Price:
Sale price$85.00

Shipping calculated at checkout

Stock:
Only 4 units left

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

QO and QOB series thermal magnetic circuit breakers are the ultimate solution for overcurrent protection and seamless switching in AC systems. Engineered with precision, these circuit breakers feature an over center, trip-free toggle mechanism ensuring swift make and break actions, alongside positive handle indication for added safety. Equipped with VisiTrip technology, they offer clear trip indication for enhanced circuit monitoring.

Key Features:

  • Model: QO (Quick Open) / QOB (Quick Open Bolt-on)
  • Poles: 3 Pole
  • Current Rating: 15 A
  • Voltage Rating: 120/240 V AC, 240 V AC, 120 V AC
  • Mounting Type: Plug-in
  • Circuit Breaker Type: Standard
  • Ratings: HACR (Heating, Air Conditioning, and Refrigeration) rated
  • Electrical Connection: Pressure plate
  • Interrupt Rating:
    • 10 kA @ 120/240 V AC 50/60 Hz
    • 10 kA @ 240 V AC 50/60 Hz
    • 10 kA @ 120 V AC 50/60 Hz
  • Number of Panel Spaces: 3
  • Wire Size: AWG 14...AWG 8 (copper or aluminium)
  • Tightening Torque: 35.40 lbf.in (4 N.m)
  • Dimensions:
    • Height: 2.99 in (76 mm)
    • Width: 2.24 in (57 mm)
    • Depth: 2.91 in (74 mm)
  • Net Weight: 0.80 lb(US) (0.363 kg)
  • Certifications: UL Listed, CSA
  • Ambient Rating: 104 °F (40 °C)

Ordering and Shipping Details:

  • GTIN: 785901400646
  • Returnability: Yes
  • Country of Origin: MX

Ensure reliable overcurrent protection and effortless circuit switching with QO and QOB circuit breakers, designed to meet rigorous UL and CSA standards. With plug-in mounting for easy installation and a comprehensive range of available accessories, these breakers are ideal for various applications in residential and commercial environments.
