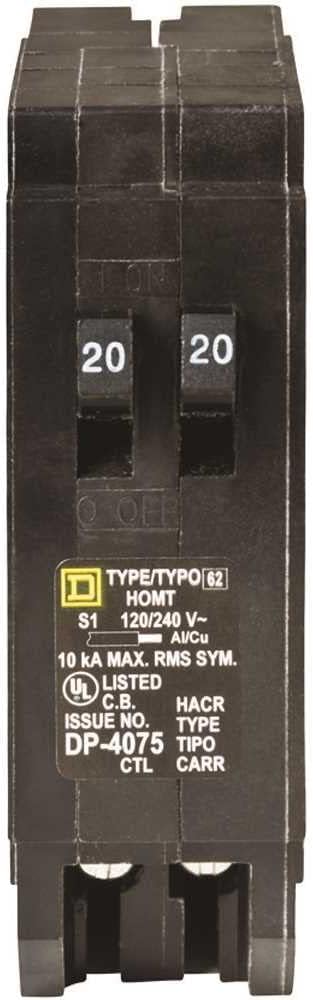

Square D HOMT2020 HomeLine 2-Pole 20/20-Amp Twin Circuit Breaker

Upgrade Your Circuit Protection with Homeline Tandem Circuit Breakers

Experience efficient installation and superior circuit protection with Homeline miniature circuit breakers. Specifically engineered for fast installation, these circuit breakers seamlessly plug into Homeline load centers, ensuring reliable circuit protection. The HOMT tandem circuit breaker, comprising two single-pole thermal magnetic circuit breakers in tandem, occupies only one HOM pole space, providing individual switching and tripping actions.

Key Features:

• Fast installation and superior circuit protection
• Designed for seamless integration with Homeline load centers
• Tandem configuration occupies only one pole space
• Individual switching and tripping actions for each single-pole breaker

Product Specifications:

• Range: Homeline
• Current Rating: 20 A
• Voltage Rating: 120/240 V AC
• Mounting Type: Plug-in
• Number of Poles: 1P
• Short Circuit Current Rating: 10 kA
• Number of Spaces: 1
• Circuit Breaker Type: Tandem
• Ratings: HACR rated
• Electrical Connection: Box lugs
• Wire Size: AWG 14 to AWG 8 (aluminum/copper)
• Tightening Torque: 35.40 lbf.in (4.0 N.m)
• Dimensions:
  • Height: 3.13 in (79.50 mm)
  • Width: 1 in (25.40 mm)
  • Depth: 2.98 in (75.69 mm)
• Environment: Ambient Air Temperature for Operation: 104 °F (40 °C)

Certifications: Homeline tandem breakers are UL Listed, ensuring compliance with rigorous safety standards.

Upgrade your circuit protection system with the efficiency and reliability of Homeline tandem circuit breakers.
