Description

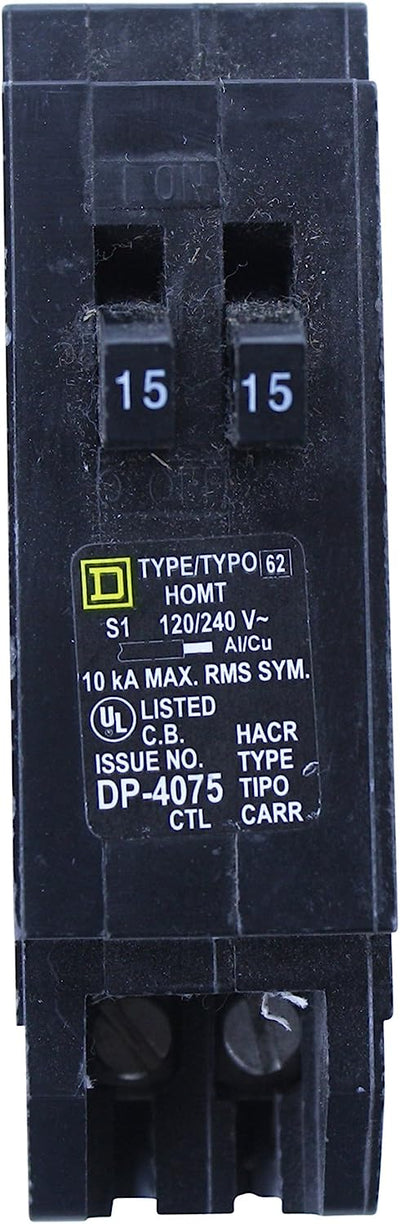

Efficient Circuit Protection with Homeline Tandem Circuit Breakers
Discover streamlined installation and top-tier circuit protection with Homeline miniature circuit breakers. Crafted for swift installation, these breakers seamlessly integrate with Homeline load centers to safeguard your circuits. The HOMT tandem circuit breaker features two single-pole thermal magnetic breakers, occupying just one pole space, ensuring individual switching and tripping actions for each.
Key Features:
- Designed for fast installation and superior circuit protection
- Compatible with Homeline load centers for seamless integration
- Tandem configuration occupies only one pole space
- Individual switching and tripping actions for each single-pole breaker
Product Specifications:
- Range: Homeline
- Current Rating: 15 A
- Voltage Rating: 120/240 V AC
- Mounting Type: Plug-in
- Number of Poles: 1P
- Short Circuit Current Rating: 10 kA
- Number of Spaces: 1
- Circuit Breaker Type: Tandem
- Ratings: HACR rated
- Electrical Connection: Box lugs
- Wire Size: 1 x AWG 14 to AWG 8 (aluminum/copper)
- Tightening Torque: 35.40 lbf.in (4.0 N.m)
-
Dimensions:
- Height: 3.13 in (79.50 mm)
- Width: 1 in (25.40 mm)
- Depth: 2.98 in (75.69 mm)
- Environment: Ambient Air Temperature for Operation: 104 °F (40 °C)
Certifications: Homeline tandem breakers are UL Listed, ensuring adherence to stringent safety standards.
Streamline your circuit protection system with the efficiency and reliability of Homeline tandem circuit breakers.
