Specifications

• Manufacturer: Square D / Schneider Electric

• Part Number: 8536SAO12V02S

• Product Type: NEMA Motor Starter

• Series: Type S / Class 8536

• Starter Type: Full-Voltage Non-Reversing (FVNR)

• NEMA Size: 00

• Rated Current: 9A

• Number of Poles: 3-Pole

• Phase: 3-Phase

• Maximum Voltage: 600VAC

• Control Coil: 120VAC at 60Hz / 110VAC at 50Hz

• Motor Rating: 1.5 HP at 200/230VAC; 2 HP at 460/575VAC

• Short-Circuit Current Rating: 5kA SCCR when properly protected

• Overload Relay: Melting Alloy

• Thermal Units: Type B

• Enclosure: Open / No Enclosure

• Control Circuit: Separate Control Circuit

• Electrical Connection: Screw-Clamp Terminals

• Dimensions: Approximately 6.77" H × 3.50" W × 4.22" D

• Certifications: UL Listed / CSA Certified

• UPC: 785901625629

• GTIN: 00785901625629

• Country of Origin: Mexico

• Condition: New

• Anticipated Product Weight: Approximately 1.81 lbs.

Product Description

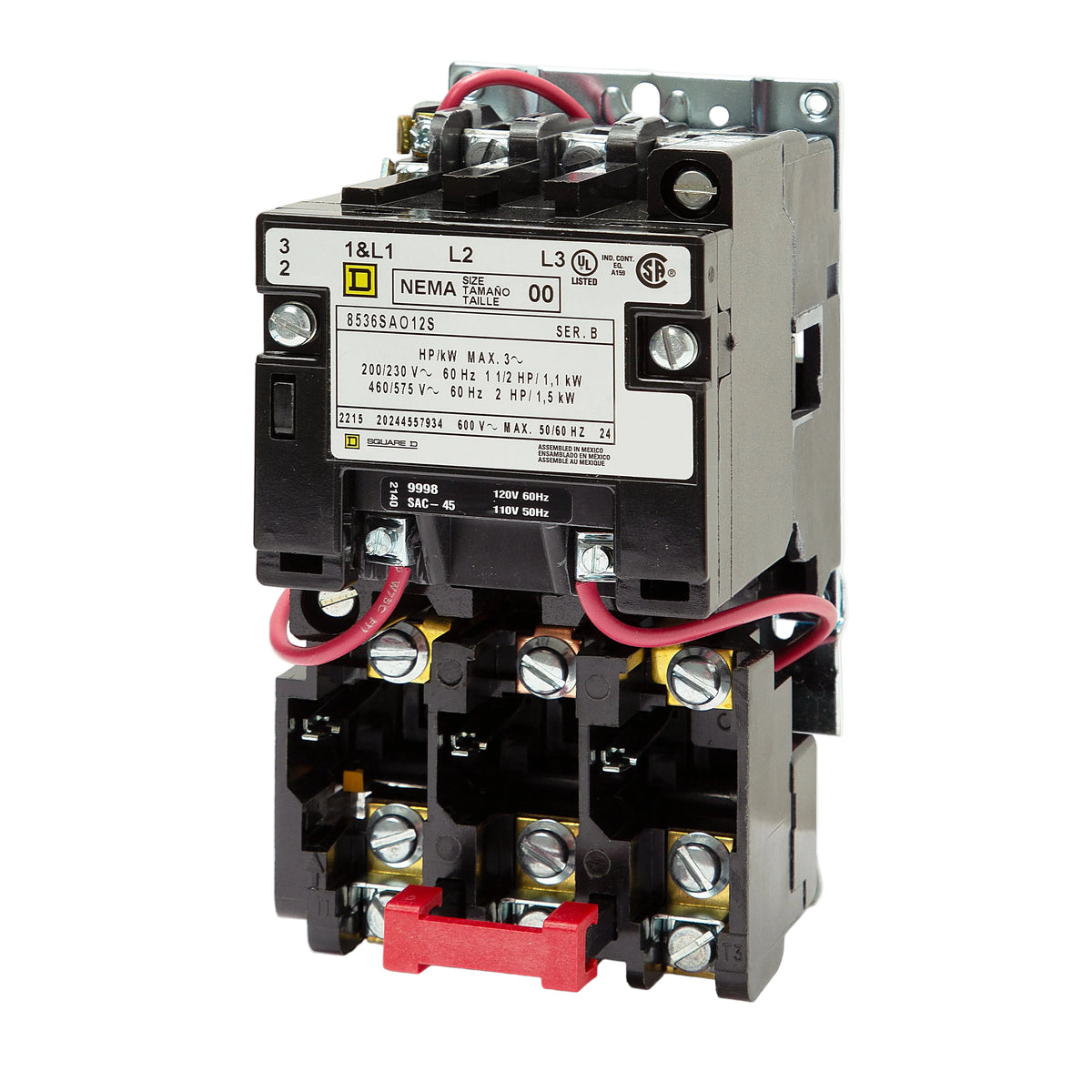

The Square D 8536SAO12V02S is a Type S NEMA Size 00 full-voltage non-reversing motor starter designed for starting and stopping three-phase AC motors.

This starter is rated 9 Amps, features a 3-pole, 3-phase configuration, and supports systems up to 600VAC. It uses a 120VAC 60Hz / 110VAC 50Hz operating coil with a separate control circuit.

The 8536SAO12V02S provides motor ratings of 1.5 HP at 200/230VAC and 2 HP at 460/575VAC. Its thermal overload protection uses a melting-alloy overload relay with Type B thermal units to provide motor overload protection.

This model is supplied as an open starter without an enclosure and uses screw-clamp terminals for electrical connections.

Key Features

• 9 Amp

• NEMA Size 00

• 3-Pole

• 3-Phase

• Up to 600VAC

• 120VAC coil at 60Hz

• 110VAC coil at 50Hz

• Full-voltage non-reversing operation

• Square D Type S / Class 8536

• 1.5 HP at 200/230VAC

• 2 HP at 460/575VAC

• Melting-alloy thermal overload relay

• Type B thermal units

• Separate control circuit

• Open / no enclosure

• Screw-clamp terminals

• UL Listed

• CSA Certified

• New condition

Important Compatibility Information

The 8536SAO12V02S is an open NEMA Size 00 motor starter with a 120VAC operating coil.

Before ordering, verify the 8536SAO12V02S catalog number, NEMA Size 00 rating, 9A current rating, 3-pole configuration, motor horsepower requirements, line voltage, 120VAC control-coil voltage, overload requirements, and open-enclosure configuration for your application.

Thermal units should be selected based on the motor's actual full-load current and application requirements.
