Specifications

• Manufacturer: Siemens
• Part Number: QN2200R
• Product Type: Main / Branch Circuit Breaker
• Breaker Type: QN / QNR
• Amperage: 200A
• Number of Poles: 2-Pole
• Voltage Rating: 120/240VAC
• Phase: Single Phase
• Interrupting Rating: 10,000 AIC (10kA)
• Trip Type: Thermal-Magnetic
• Trip Functions: Long-Time / Instantaneous
• Handle Configuration: Reverse Handle
• Mounting: Plug-On
• Panel Spaces Required: 4
• Wire Range: #4–300 kcmil Copper / Aluminum
• Terminal Type: Lugs
• Standards: UL 489 / CSA
• UPC: 783643204232
• Condition: New
• Anticipated Weight: Approximately 3 lbs.

Product Description

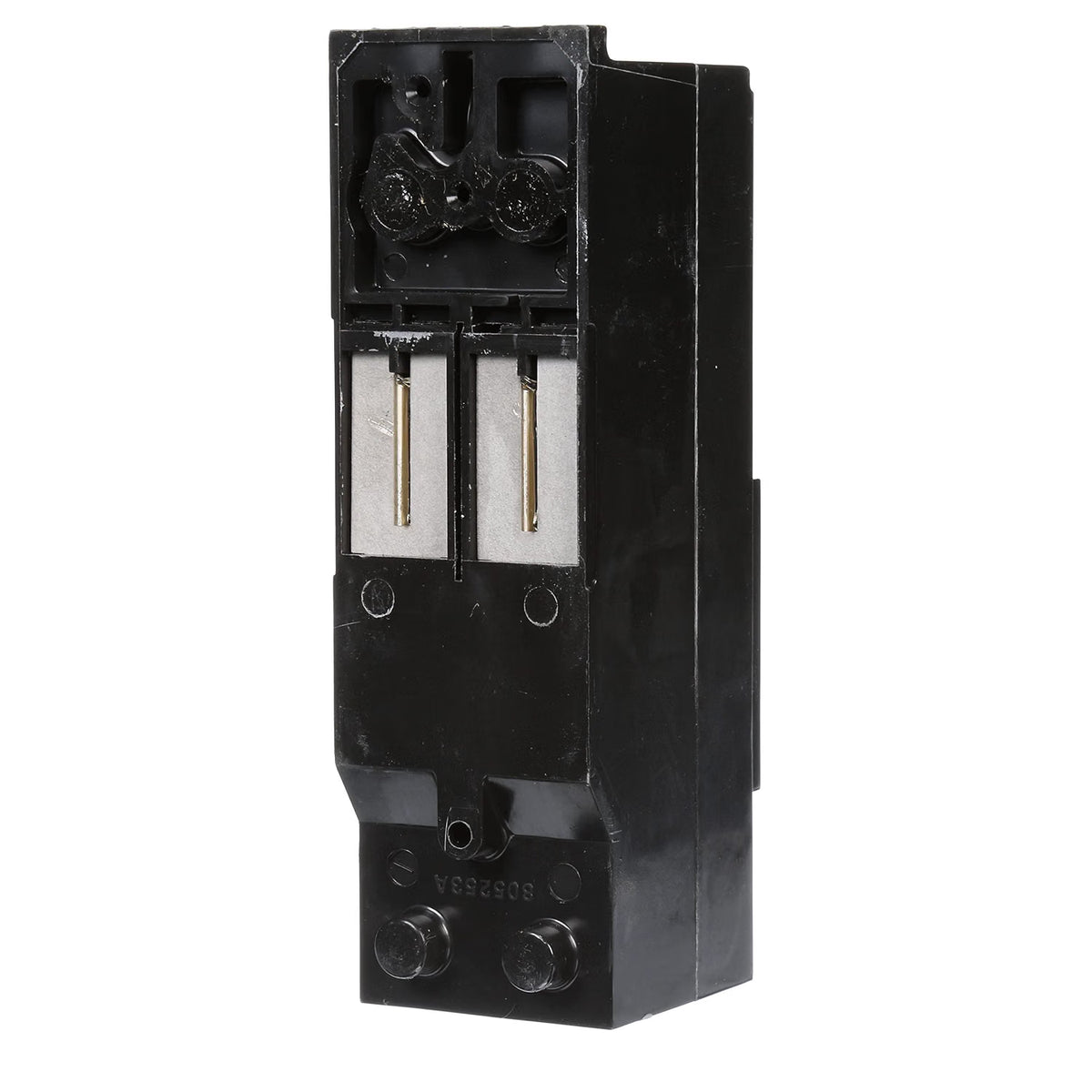

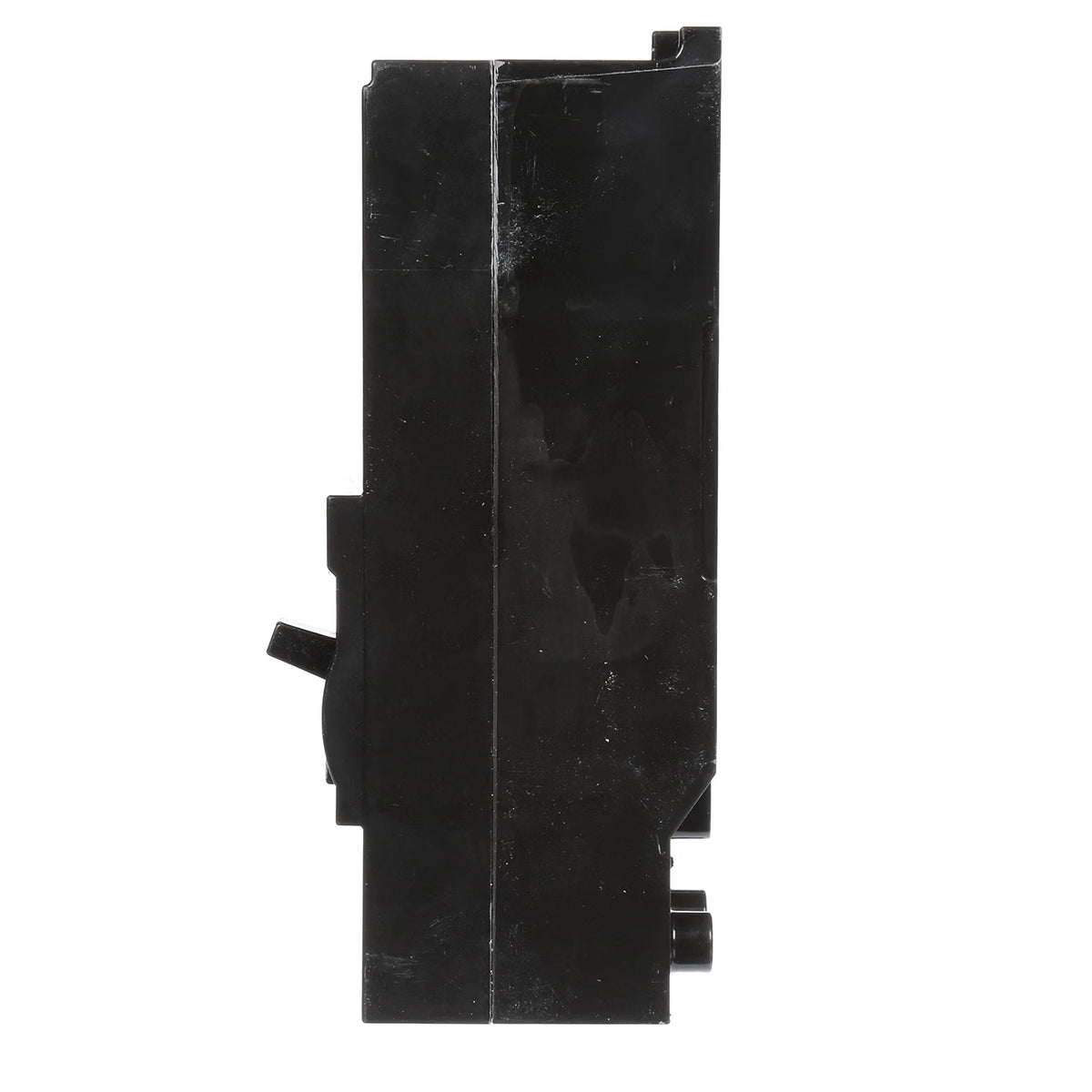

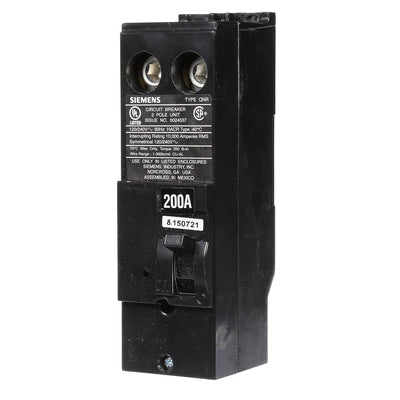

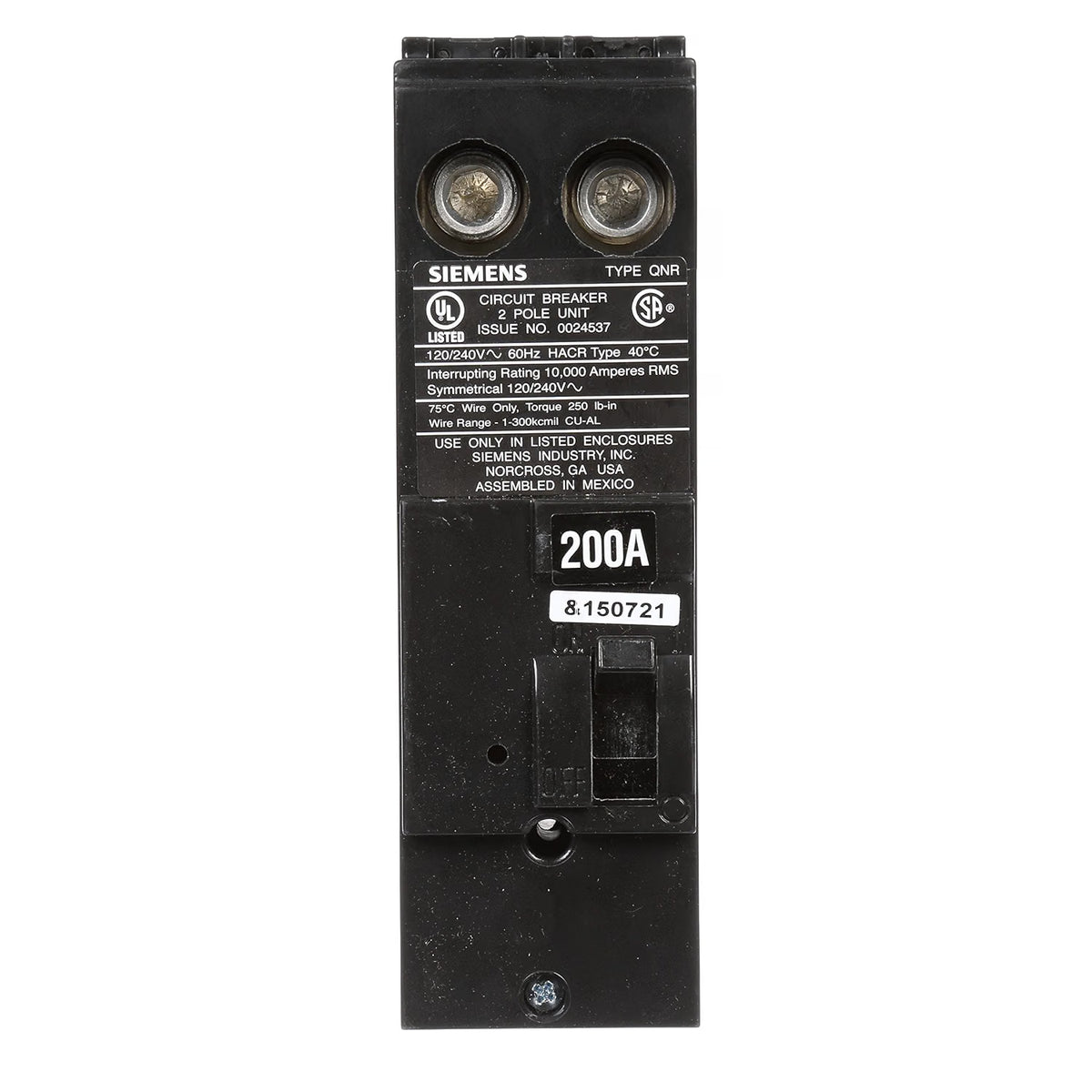

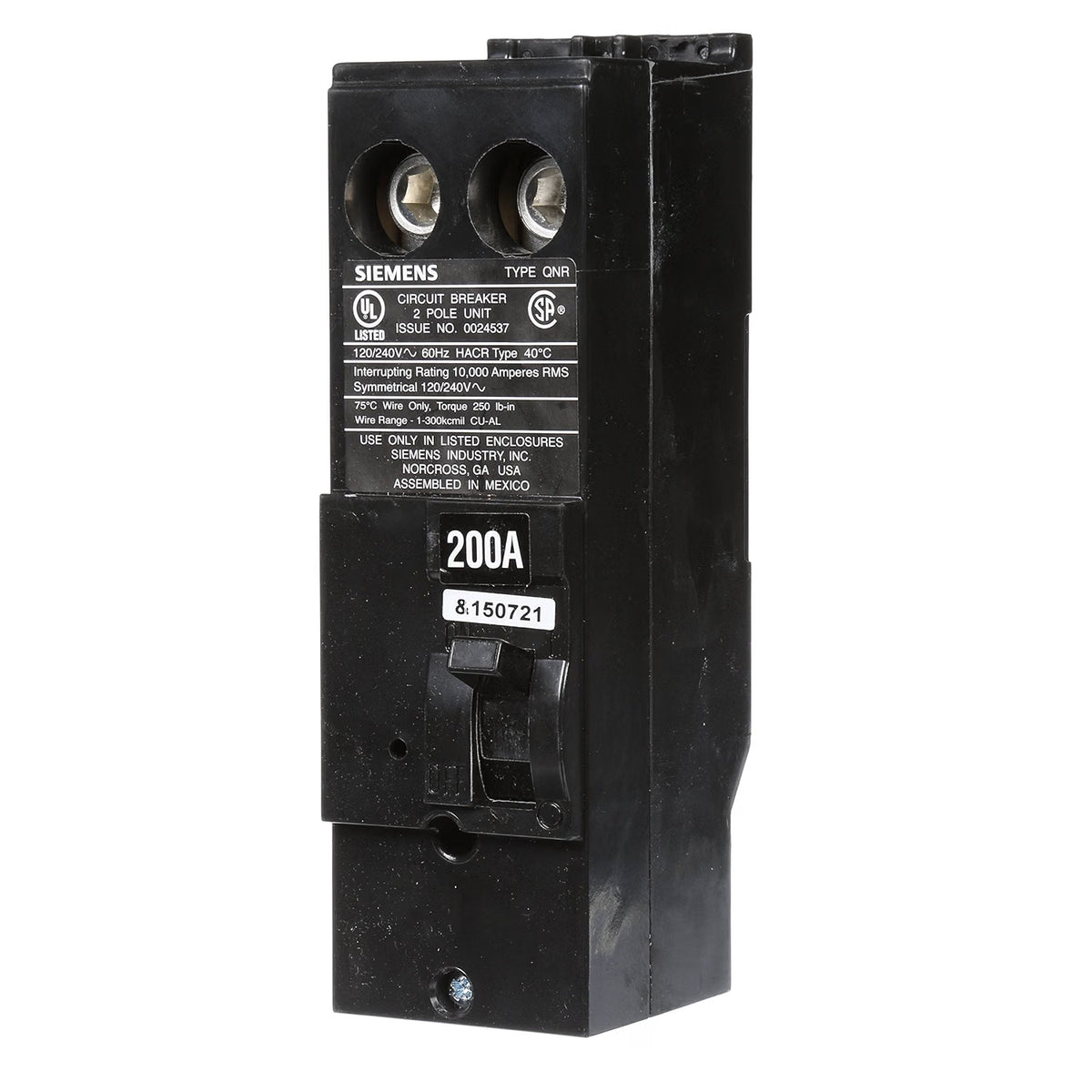

The Siemens QN2200R is a 200-Amp, 2-pole, 120/240V Type QN circuit breaker designed for compatible Siemens load centers, meter combinations, circuit breaker enclosures, and other approved residential electrical distribution equipment.

The QN2200R features a factory-installed reverse-handle configuration and provides a 10,000 AIC interrupting rating at 120/240VAC. It uses thermal-magnetic protection for overload and short-circuit protection.

This breaker accepts #4 through 300 kcmil copper or aluminum conductors and occupies four panel spaces — two adjacent spaces and two opposite spaces.

Key Features

• 200 Amp
• 2-Pole
• 120/240VAC
• 10,000 AIC
• Siemens Type QN / QNR
• Reverse-handle configuration
• Plug-on mounting
• Thermal-magnetic protection
• Long-time / instantaneous trip
• Accepts #4–300 kcmil Cu/Al conductors
• Requires four panel spaces
• UL 489 Listed
• CSA compliant
• UPC 783643204232

Important Compatibility Information

The QN2200R is the reverse-handle version of the Siemens Type QN breaker and is commonly used as a main breaker in compatible Siemens load centers and meter combinations.

Before ordering, verify the QN2200R part number, 200A rating, 2-pole configuration, 120/240V rating, reverse-handle orientation, mounting configuration, conductor requirements, and compatibility with your Siemens equipment.

Do not select a main breaker based solely on amperage and pole count.
