Description

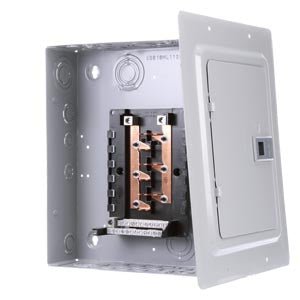

Siemens Low Voltage Residential Specialty Load Centers: Renovation Panels. EQ Series Type: Load Center, Main Lug Features: quick interior removal, one piece bus bar, Positive load side circuit breaker hook rails Bus Bar: Cu T. Rating: 60/75 D Appn: Severe Environment, Service Entrance Equipment up to six main disconnect means. Std: UL Listed V. Rating: 120/240 A. Rating: 100 Phases: 1 Material: Cu No. of Circuits: 24 No. of Spaces: 12 Wiring Conf: 3-Wire SN Enclosure: Indoor, NEMA 1 Mounting: Flush Circuit Breaker Type: QP, QPH, HQP
Specification
| TRADE NAME | EQ® Load Center |
|---|---|
| MAIN TYPE | Main Lug |
| PHASE | Single |
| WIRE | 3 |
| AMPERE RATING (A) | 100 |
| VOLTAGE RATING | 120/240VAC |
| ENCLOSURE TYPE | NEMA 1 (Indoor) |
| SHORT CIRCUIT CURRENT RATING (KA) | 100 |
| NUMBER OF SPACES | 12 |
| NUMBER OF CIRCUITS | 24 |
| MAX. 2 POLE | 6 |
| MOUNTING TYPE | Plug-In |
| COVER TYPE | Flush |
| BUS MATERIAL | CU |
| HEIGHT (IN.) | 14.75 |
| WIDTH (IN.) | 12.38 |
| DEPTH (IN.) | 3.88 |
| STANDARDS | UL Listed |
