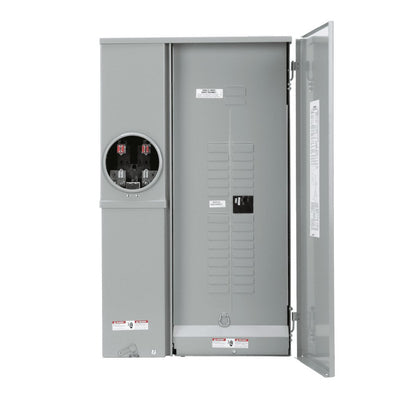

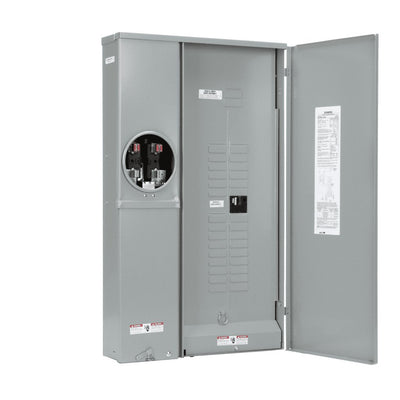

200-Amp 30-Spaces 40-Circuits Ring Type Solar Ready Surface Combination Meter Load Center

SiemensSKU: MC3040S1200SC

Price:
Sale price$949.99

Shipping calculated at checkout

Stock:
In stock

Description

Title 24 defines new guidelines for the main electrical service panel used in new residential construction in subdivisions of 10 or more homes. Under the new code, the main electrical panel must have a minimum bus bar rating of 200 Amp. Additionally, all service entry panels are required to have 2 reserved spaces on the load-side to allow for installation of a double pole circuit breaker for future solar electric installation. These reserved spaces are required to be on the opposite (load) end from the main circuit breaker on the bus bar and permanently marked as "For Future Solar Electric". To meet the new requirements that pertain to the main electrical service panel used in the construction of new residences, as well as support increasing market demands for products that support solar energy installations, Siemens offers a full portfolio of meter-load center combination devices. Siemens line of feature rich "Solar Ready" meter-load center combination devices will feature the industry's first dedicated 100 Amp max alternate energy input. These devices feature a dedicated alternative energy input so power feeds ahead of the service disconnect on the load side of the meter socket. This innovative design solution, offered only by Siemens, eliminates the need to de-rate the main breaker and take up valuable load side spaced by back feeding on to the bussing.

  • Single phase, 120/240-Volt AC, 3-wire
  • Dedicated 100 Amp max alternate energy input
  • 200 Amp main disconnect
  • EUSERC and CA title 24 compliant
  • Designed for use in overhead or underground fed applications
  • Raised neutral bar featuring Siemens patented insta-wire design for ease of install
  • Adjustable flush rails
  • Raised base pan for ease of wiring
  • Side hinged door
  • Contact local utility to confirm meter socket approval

Specifications

Dimensions

Load center depth (in.) 5.1 Load center height (in.) 35.68
Load center width (in.) 21.2

Details

Electrical Product Type Load Center Indoor/Outdoor Outdoor
Load Center Mounting Type Surface Load Center Type Combination
Maximum Amperage (amps) 200 Meter Socket Type Ringless-No Bypass
Mounting Type Bolt On NEMA Configuration NEMA 3R
NEMA Configuration Receptacle No Receptacle Number of Circuits 40
Number of Gangs 0 Number of Spaces 30
Phase Type 1 Phase Product Weight (lb.) 42.7 lb
Returnable 30-Day Voltage (volts) 120/240

Warranty / Certifications

Certifications and Listings UL Listed Manufacturer Warranty 1 Year
Siemens Description
SIEMENS LOW VOLTAGE METER LOAD CENTER COMBINATION. PHOTOVOLTAIC (SOLAR) LOAD CENTER 30 (1 INCH) SPACES INTERIOR ALLOWING MAX 40 CIRCUITS. 4-JAW METER / 1-PHASE SYSTEM RATED 200A. SPECIAL FEATURES: OH/UG FEED, RING TYPE COVER, SURFACE MOUNTING
