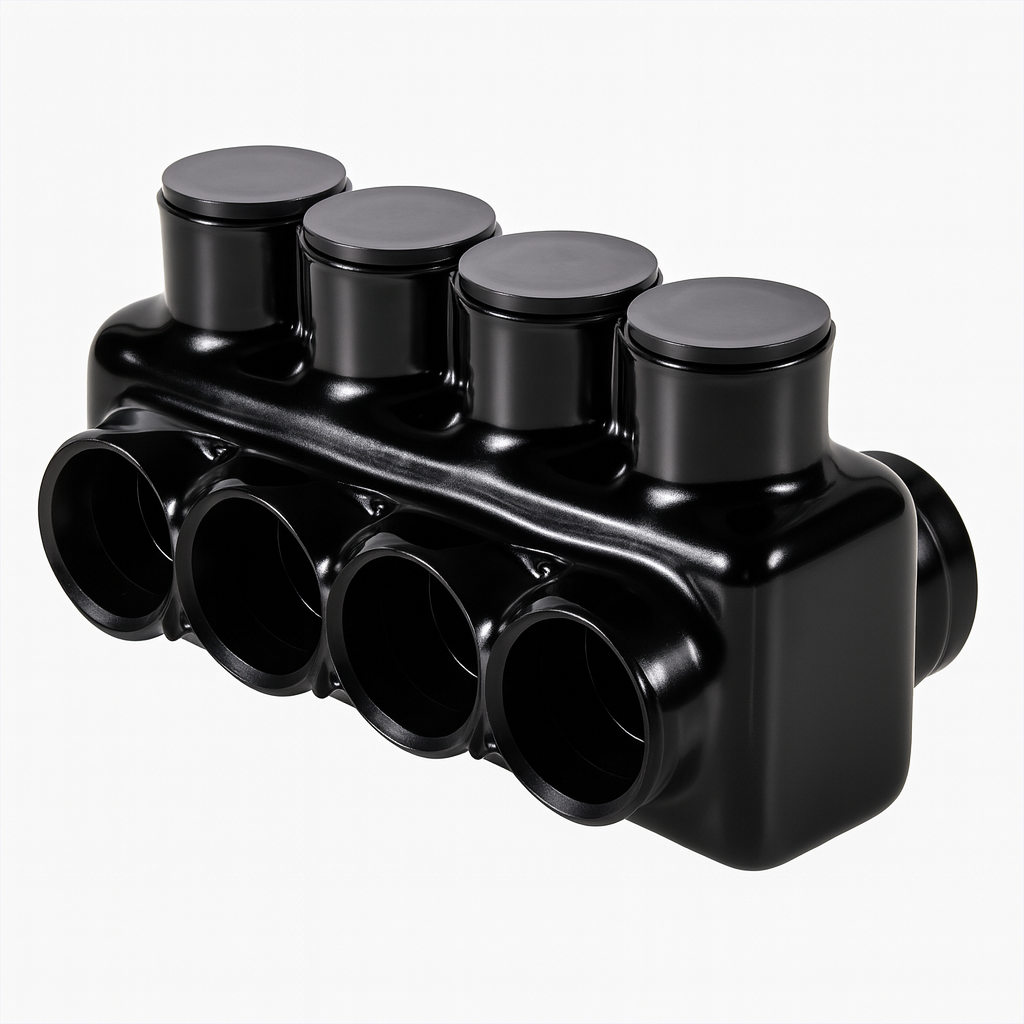

Malibu Knecht™ IC-4 Four-Port Multi-Cable Insulated Connector - Multiple Wire Ranges

Efficiently connect and splice multiple cables with the Malibu IC-4 Four-Port Multi-Cable Splice Insulated Connector. Designed for durability and reliability, this connector is ideal for electrical installations that require secure connections for a range of wire sizes. Built with 6061-T6 aluminum and a rugged plastisol coating, it ensures safe and long-lasting performance in a variety of environments.

Key Features

Premium Build & Design

• Material: Made from 6061-T6 aluminum for superior strength and conductivity.
• Insulation: Coated with high-dielectric plastisol for enhanced durability and protection.
• Pre-Filled with Oxide Inhibitor: Protects connections from corrosion and ensures optimal performance over time.

Ease of Use

• Marked Wire Sizes: Clear maximum and minimum wire size markings for quick and accurate identification.
• Easy Re-Entry: Facilitates changes, inspections, and troubleshooting without damaging the connector.
• One Wire Per Terminal: Simplifies installation and ensures secure connections.

Versatile & Certified

• CU9AL Dual Rated: Compatible with both copper and aluminum wires, offering greater flexibility.
• Wide Temperature Range: Operates efficiently from -49°F to 194°F (-45°C to 90°C).
• Voltage Rating: Supports up to 600 volts, suitable for high-demand applications.
• Cable Compatibility: Rated for use with 90°C cables, meeting rigorous electrical standards.
• Certified Safety: Compliant with ANSI C119.4 and UL certified for safety and reliability.

Wire Size Ranges

• 2/0 AWG to 14 AWG
• 3/0 AWG to 14 AWG
• 250 MCM to 6 AWG
• 350 MCM to 6 AWG
• 500 MCM to 6 AWG
• 750 MCM to 6 AWG

Applications

• Electrical Splicing: Ideal for secure and efficient cable splicing.
• Commercial & Industrial Use: Designed for demanding environments requiring reliable performance.
• Multi-Cable Connections: Perfect for use in panels, junction boxes, and other wiring applications.

Specifications

• Voltage Rating: 600 volts
• Temperature Range: -49°F to 194°F (-45°C to 90°C)
• Compliance: ANSI C119.4, UL Certified

Ensure long-lasting, secure, and efficient connections with the Malibu IC-4 Four-Port Multi-Cable Splice Insulated Connector, engineered for performance and reliability in every installation.
