Product Details

Description

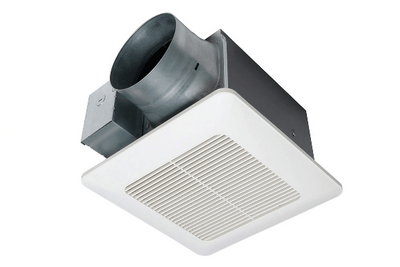

WhisperCeiling® DC™ Precision Spot Ventilation Fan with built-in Pick-A-Flow™ speed selector switch allows you to select your required airflow (110-130-150 CFM). Features an ECM Motor with SmartFlow® technology and a Flex-Z Fast installation bracket. Can be used to comply with the latest codes and standards.

KEY FEATURES

  • Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
  • Pick-A-Flow™ Speed Selector – one fan, you choose the CFM (50, 80, 110 or 110, 130, 150 CFM models)
  • Flex-Z Fast bracket provides flexible, fast & trouble-free installation, even from below the ceiling
  • Lighted models incorporate one long-life, 10W dimmable LED chip panel with <1W LED night light for warm, energy efficient illumination
  • Elegant grille design compliments the aesthetics of any bathroom

Specification Description
Advanced Features Single Speed
Air Volume (CFM) 150, 152, 130, 131, 110, 110
Blower Wheel Type Sirocco
California Title 24 Compliant Yes
Current (Amps) 0.19, 0.31, 0.16, 0.25, 0.12, 0.20
Duct Diameter 6"
Energy Efficiency (CFM/Watt) 12.9, 7.6, 14.7, 8.5, 16.4, 9.2
Grille Size (in sq.) 13"
Gross Weight (lbs) 11.2
MAX. Current (Amps) 0.31
Mfg in ISO 9001 Certified Facility Yes
Motor Type (AC/DC) DC
Mounting Opening (in sq.) 10-1/2"
Noise (Sones) <0.3, 0.7, <0.3, 0.5, <0.3, <0.3
Power Consumption (Watts) 11.8, 20.2, 9.0, 15.7, 6.8, 12.1
Power Rating (V/Hz) 120/60
Product Family Name WhisperCeiling DC
Speed (RPM) 1342 1480 1016, 1268, 867, 1185, 768, 1097
Static Pressure in inches w.g. 0.1, 0.25, 0.1, 0.25, 0.1, 0.25
Thermal Fuse Protection Yes
Type of Motor Bearing Ball
UL Listed for Tub/Shower Enclosure when GFCI Protected Yes
UL tub/Shower Enclosure Yes
Washington VIAQ Code Yes

Performance and efficiency perfected with precision spot ventilation fan/LED combo

WhisperCeiling DC comes from a line of time-tested and customer approved quiet, yet powerful and energy efficient ventilation fans. This precision spot ventilation solution improves IAQ by effectively removing moist, polluted air from your bathroom, laundry room, sun room, basement or garage.

ECM motor with SmartFlow™ technology

WhisperCeiling® DC™ is designed to perform as rated. When the fan senses static pressure, its speed is automatically increased to ensure optimal CFM output. This feature provides peace of mind, as the installer doesn’t have to worry about compromising the fan’s performance, even with a complicated duct run.

Pick-A-Flow speed technology

Built-in Pick-A-Flow speed selector provides the unique ability to select your required airflow (110-130-150 CFM) with the flip of a switch.

LED Lighting

Fan/light models feature a contemporary flush mount grille that incorporates a long-life 10W dimmable LED chip panel with <1W LED night light for warm, lasting  energy efficient illumination. Panel specifications include: 3000 Kelvin Warm White/90CRI/700 lumens/70 LPW/ENERGY STAR 2.0 certified/JA-8 compliant for CA Title 24/ 50,000 hours rated average

Long life and lower operating costs

Whether you're running a household or a business, you shouldn't have to replace little things like a vent fan. Panasonic fans use less energy, move larger volumes of air and run cooler, which means they last longer. Our motors are equipped with a thermal-cutoff fuse, greatly reducing the likelihood of overheating and motor failure

Installation flexibility

The Flex-Z Fast™ installation bracket with articulating joints is ideal for positioning the fan exactly where you want it, in old or new construction. An integrated dual 4" or 6" duct adapter gives greater flexibility in duct layout and design.

ENERGY STAR® certified for energy savings

Panasonic ventilation fans are ENERGY STAR certified, where guidelines exist. They've been engineered to comply with the ENERGY STAR® 4.0 requirement for increased efficiency (CFM/Watt), ensuring low cost, energy efficient operation. ENERGY STAR® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.

WhisperCeiling® DC™ was awarded 2021 Most Efficient. This mark recognizes WhisperCeiling® DC™ as delivering cutting edge energy efficiency along with the latest in technological innovation. It is an award that represents the best of those products that qualify for ENERGY STAR®.
