Description
WhisperCeiling 390 CFM large volume ceiling mount fan is a time-tested and customer approved powerful, yet quiet and energy efficient solution. Ideal for light commercial applications, it incorporates a 6 in. duct adapter and can be used to comply with the latest codes and standards.
KEY FEATURES
- Quiet, yet powerful – ideal for new and remodel residential applications
- Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing
- UL listed for tub/shower enclosure when GFCI protected
- 3 year warranty on parts, 3 year on CFL lamps

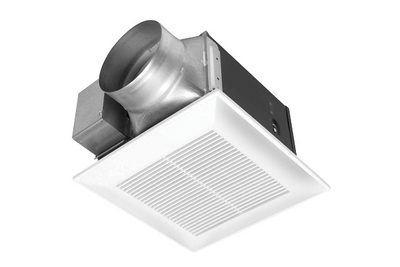

WhisperCeiling FV-30VQ3 390 CFM, Ceiling Mount Fan
WhisperCeiling™ large volume exhaust fans are ideal for light commercial applications. The workhorse of the Panasonic line, they are time-tested and customer approved for their quiet, yet powerful consistency. Rated for continuous use, WhisperCeiling vent fans are a simple way to incorporate an energy efficient ventilation strategy.
We Set the Standard for Quiet Operation
WhisperCeiling fans feature a totally enclosed condenser AC motor and a double-tapered blower wheel to quietly move air-even at twice the static pressure as the industry standard. WhisperCeiling exceeds the performance measurement for ASHRAE 62.2, ENERGY STAR® 3.0, and LEED for Homes.
Long Life Means Reduced Costs
When you have a household or business to run, you don't want to have to replace little things like a vent fan. Panasonic fans use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse.
Installation Flexibility
WhisperCeiling large volume fans feature a 6 in. duct adapter and fit in 2x8 construction. The double hanger-bar system (expandable up to 24 in.) is ideal for positioning the fan exactly where you want it. Panasonic fans are UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up.
PRODUCT SPECIFICATIONS
Advanced Features
- Single Speed
Air Volume Exhaust (CFM)
- 390 @ 0.1" SP
- 356 @ 0.25" SP
Master Carton Dimensions (HxWxD)
- 22-1/4" x 18-5/16" x 13-1/4"
CFM
- Greater than 150
Other Approved Codes and Standards
- ASHRAE 62.2
- LEED
- California Title 24
- Washington VIAQ
Construction Type
- Single Family/Manufactured Housing
- Hospitality/Assisted Living/Student Housing
- Renovation/Remodeling
Current (Amps)
- 0.99A
Ventilation Design Approach
- Continuous Ventilation
- Spot Ventilation
Duct Diameter
- 6"
Energy Efficiency (CFM/Watt)
- 3.5 CFM/W
ENERGY STAR® Certified
- No
Fan Type
- Fan Only
Grille Size (in sq.)
- 17-11/16"
Industry
- Residential
- Light Commercial
Installation
- Ceiling
Motor Type (AC/DC)
- AC
Mounting Opening (in sq.)
- 14-3/4"
Mounting Options
- Ceiling Mount
- Tub Shower (UL)
Noise (Sones)
- 390 @ 0.1" SP = 3.0
- 356 @ 0.25" SP = 3.0
Power Consumption (Watts)
- 111.4W
Power Rating (V/Hz)
- 120/60
Product Family Name
- WhisperCeiling
Radiation Damper Available
- No
UL Listed for Tub/Shower Enclosure when GFCI Protected
- Yes
Warranty
- 3 Year Parts
Master Carton Gross Weight (lbs.)
- 27.1
