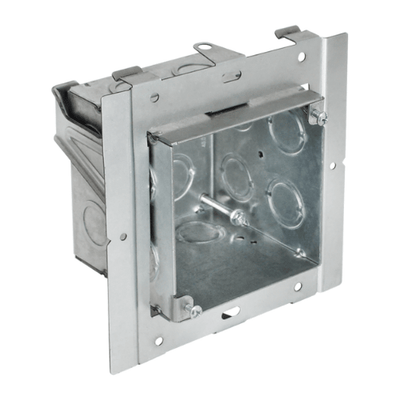

Orbit 3-1/2" Deep, 4" Welded Square Box with Built-in Adapter - Universal Mounting Internal Adjustment Boxes

$97.91
Options
Options: Internal Adjustment (10 Pack)

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

Fast & Reliable Shipping

Orders processed in 1–2 business days.

Hassle-Free Returns

30-day returns on eligible items. Read Terms

Knowledgeable Support

Get expert help via chat, email or phone.

Top-Rated Store

Trusted by 20,000+ customers. Read Reviews

Product Details

Description
Category SWITCH BOX
Page UMIAB Series Flyer

Description:

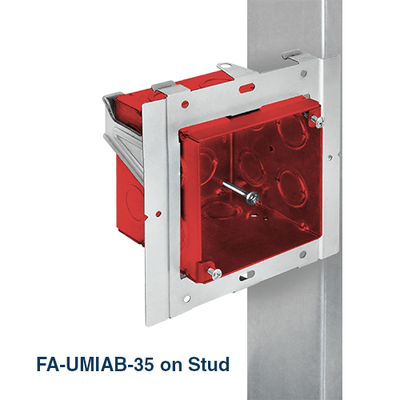

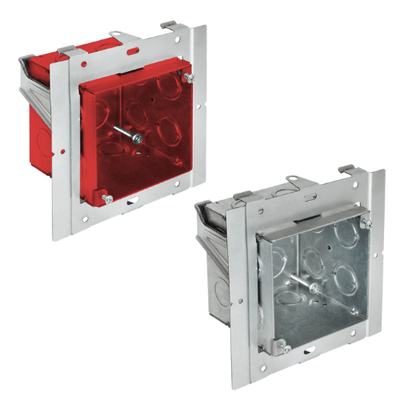

Orbit's Universal Mounting Internal Adjustment Boxes (UMIAB Series) are 4" Sq.  Boxes with a built-in adapter for mounting and adjusting the box to fit various Electrical or Fire Life Safety applications. Built-in adapter allows for adjustment of the UMIAB-35šž¢s from 1/2" to 1-1/2" and the UMIAB-25šž¢s from 1/2" to 1-1/4", ensuring devices sit flush with wall surfaces. UMIABšž¢s mount direct to stud frames. Mount UMIABšž¢s between studs or joists with Orbit's SSB-T5; or between drop ceiling grids with SSB-TBAR. Internal Adjustment allows for box adjustment both before or after dry wall installation. FA-UMIAB-35 FA-UMIAB-25 are powder coated red for quick identification of FA devices.

Features:

- The Best Way to mount Extra Deep 4" Square Boxes

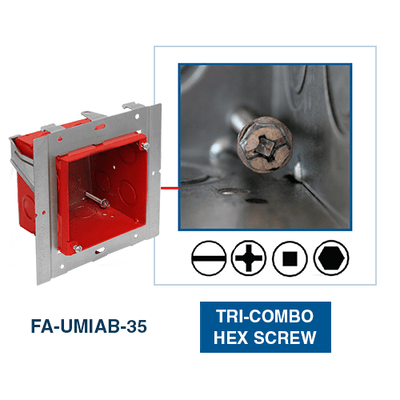

- Internal adjustment screws allow the box to be adjusted before and after dry wall installation

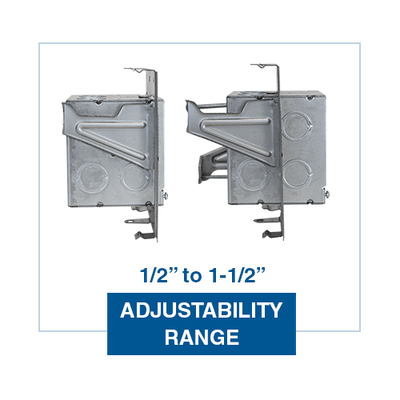

- Built-In Internal Adjustment from 1/2" to 1-1/2" for the UMIAB-35šž¢s and 1/2" to 1-1/4" for UMIAB-25šž¢s
- UMIAB-25šž¢s ideal for use with 2-1/2" Deep Wall Studs

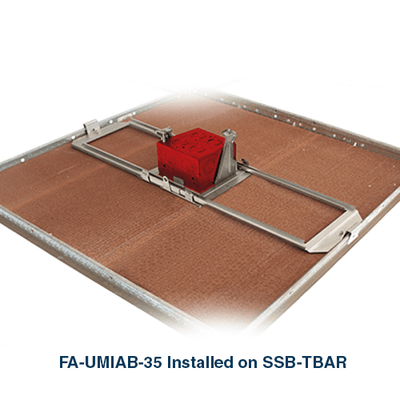

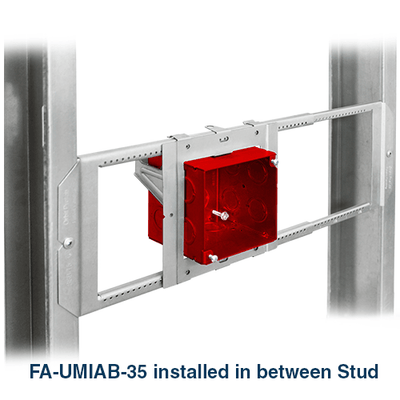

- Can be mounted directly to studs or snapped onto SSB-T5 for between stud or overhead/hard lid applications and SSB-TBAR for drop ceiling applications
- Available in a Red Finish as the FA-UMIAB-35 and FA-UMIAB-25 for Fire Alarm Installations
- Ideal for Life Safety systems rough-in

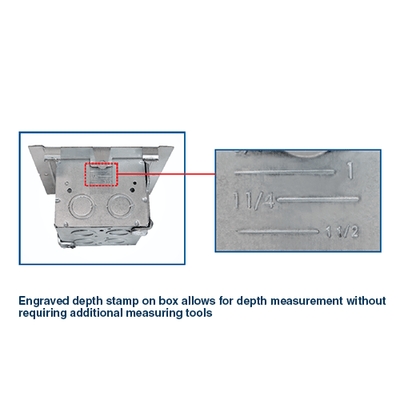

- Engraved depth stamp on box allows for depth measurement without requiring additional measuring tools

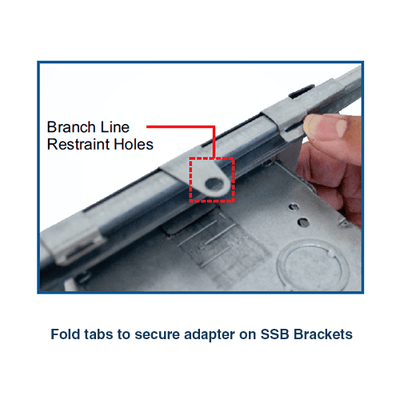

- Branch Line Restraint holes

* For a 4" octagon (4O) box version, please see UMAB-4R Series.
* For External Adj. Version, please see UMAB Series.

Dimensions:
Width 4"
Height 4"
Depth See chart below
Cu In See chart below

Specifications:
Material 16 GA Sheet Steel
Mfg. Process Welded
Color Red / Steel
KO Sides See chart below
KO Bottom See chart below

Certifications:
steel products ul certification  RoHS Logo

UL File Number:
E227970


Literature


Catalog
Number

UPC

 Description

Box Depth

Cu. In.

Adj. Range

KO Sides

KO Bottom

Std. Pkg.
UMIAB-35 8-35243-03826-4 Internal Adj. 4" Sq. Box 3-1/2" 46.0 1/2"
-
1-1/2"		 (12) CKO (4) CKO 10
FA-UMIAB-35 8-35243-03827-1 Internal Adj. 4" Sq. Box, Red Powder Coat Finish 10
