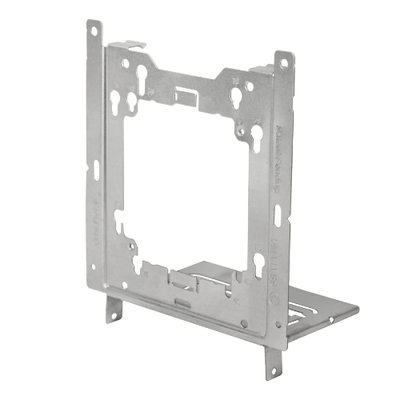

Orbit UMA-LVBS Universal Mounting Adapter with Snap-off Back Support (25 Pack)


Price:
Sale price$58.60

Shipping calculated at checkout

Stock:
In stock

Description

Category PREFAB
Page P1-P8
Description:
Orbit Industries„¢ Universal Mounting Adapter with Back Support (UMA-LVBS) supports 4", 4-11/16" or 5" square boxes on either side of a wall stud. Unique key-hole pattern allows box to be turned 90" and use 4" Rings with any size box! Top notch provides easy access to set screw fittings. Snaps onto SSB-T5 for between stud applications and SSB-TBAR for drop ceiling applications. Patented. UL Listed. Model Revised in 2023. Made in USA model: US-UMA-LVBS

Features:

- Patented
- Stud mounts 4", 4-11/16" or 5" square boxes on either side of wall stud (wood or metal)

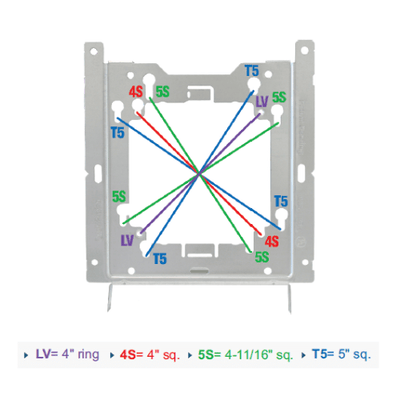

- Unique key-hole pattern allows box to be turned 90" and holds any size box in place when ring is removed

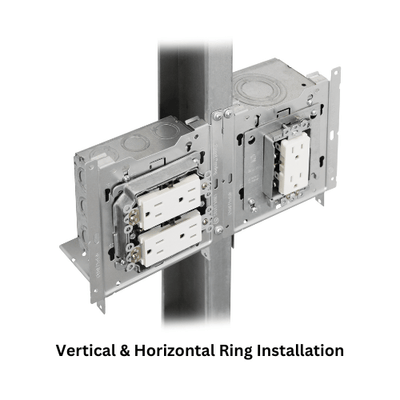

- Use 4" rings on any size box (horizontally and vertically)
- 4" rings can be mounted on their own for low voltage applications using 8/32 screws
- Tool-less, snap-off extension for up-to 6"

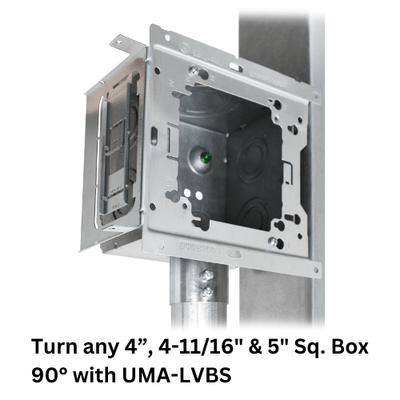

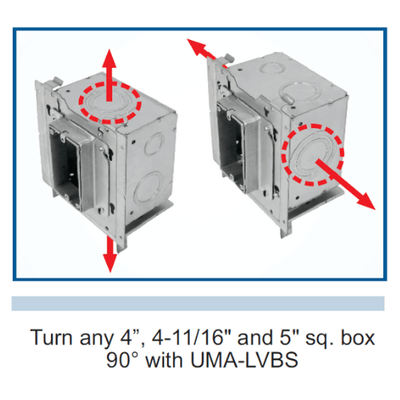

- Extended Mounting Tab enables secure mounting with 90" rotation. Box will be able to receive large conduit without removal of back support.

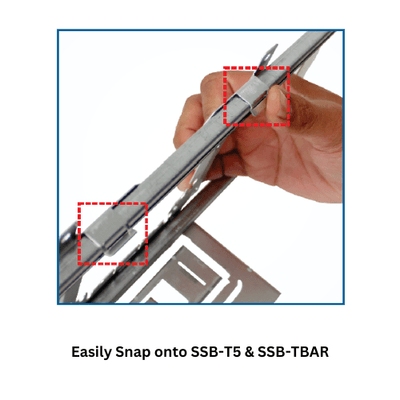

- Easily snaps onto SSB-T5 for stud-to-stud mounting or SSB-TBAR for mounting boxes in drop ceilings
- Fold tab to secure adapter on SSB Brackets.
- Top notch provides easy access to set screw fittings

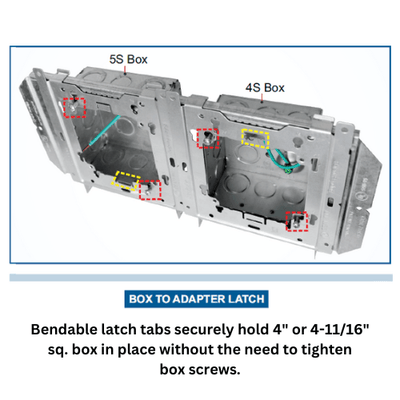

- Bendable latch tabs securely hold 4" or 4-11/16" sq. box in place without need to tighten box screws. Skip hassle of tightening box screws until the final ring installation, making installation process more efficient and convenient.
- Mounts side-by-side on the same stud without drywall bulging
- Compatible with Standard & Adjustable Rings
- UMA-LVBS available preassembled with box and/or ring: LVBS Assemblies. US-UMA-LVBS Assemblies available upon request.
- Optional BMCS Series provides built-in cable/conduit support


Specifications:
Material Sheet Steel
Color Galvanized
Mfg. Process Stamped

Packaging Info:
Carton Weight 9.02 lbs.

Certifications:
steel products ul certification  steel products rohs certification*


Cat. No.

UPC

Description

Std.
Pkg.

UMA-LVBS 8-35243-02414-4 Universal Mounting Adapter w/ Back Support (up to 6"), allows for 4", 4-11/16" & 5" Sq. Boxes to mount to SSB-T5, SSB-TBAR, USB or direct-to-stud 25

Download PDF File

Specification
