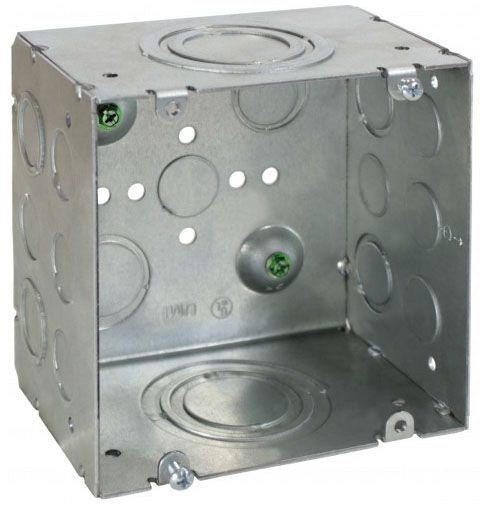

Orbit T5B-50/200 True 5" Square Box, 3-1/4" Deep,1/2" to 1" Mko, 1" to 2" Cko

Orbit Industries' selection of 5� Square Boxes and Accessories provides the capacity needed to handle modern-day hospital, commercial, government, university and other data installations. Up to 71.8 cubic inches of capacity allow for an easier installation of high-speed cable, resulting in reduced labor costs and cable stress.

Features:

• More than double the capacity of standard 4� square boxes

• Increased capacity easily meets minimum bend radius requirements for an easier
• installation
  Extra space in the box reduces the chance of short circuits and ground faults due to cramped spaces and cable stress

• Can store the BICSI-recommended slack cable loop, allowing for easy access and cable termination by a single technician

• Supports all current copper CAT and fiber optic cables in addition to predicted cable size increases

• Compatible with Orbit's Simple Support Bracket System, Fixed Mounting Brackets (FMB) and Flat Bracket Family for between stud applications

• Suitable brackets allow the T5B to use a 4" ring, reducing material costs

• Cover, Reducer and Partitions available here


Dimensions:

• Width 5"

• Height 5"

• Depth 3-1/4"

• Cu In 71.8


Specifications:

• Material 16 GA Sheet Steel

• Mfg. Process Welded

• KO Sides (2) 1" to 2" C.K.O.'s, (4) 1/2" & 3/4" C.K.O.'s,
  (8) 1/2" K.O.'s

• KO Bottom (1) 1/2" & 3/4" M.K.O.'s, (1) 3/4" & 1" M.K.O.'s
  (1) 1/2" K.O.'s, (2) Ground Screws
