Description
Category | SWITCH BOX | |
Page | P27 | |
Barcode | 8-35243-01428-2 | |
Description: | ||

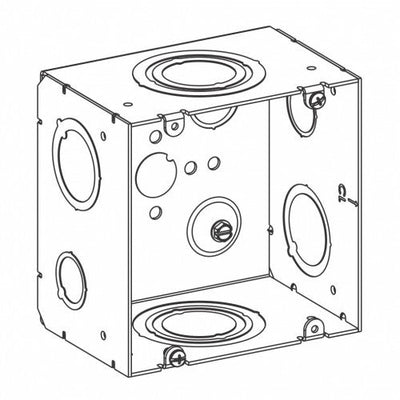

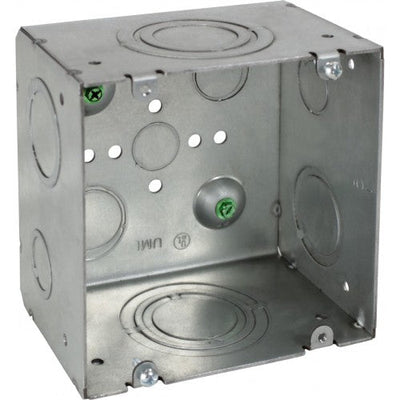

Orbit Industries' selection of 5" Square Boxes and Accessories provides the capacity needed to handle modern-day hospital, commercial, government, university and other data installations. Up to 71.8 cubic inches of capacity allow for an easier installation of high-speed cable, resulting in reduced labor costs and cable stress. | ||
Features: | ||

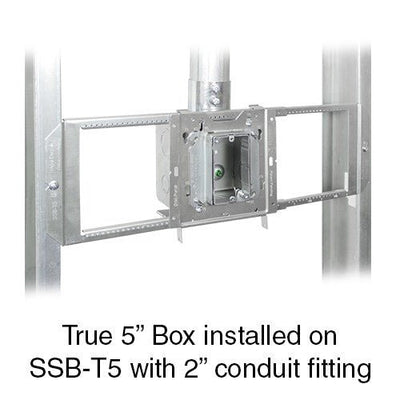

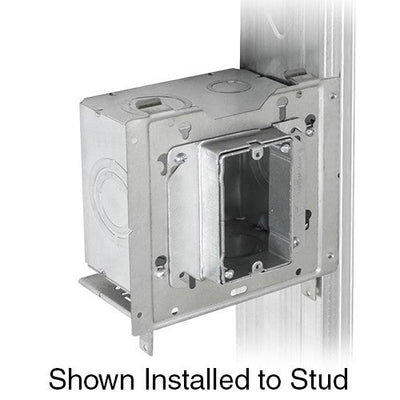

More than double the capacity of standard 4" square boxes Increased capacity easily meets minimum bend radius requirements for an easier installation Extra space in the box reduces the chance of short circuits and ground faults due to cramped spaces and cable stress Can store the BICSI-recommended slack cable loop, allowing for easy access and cable termination by a single technician Supports all current copper CAT and fiber optic cables in addition to predicted cable size increases - Compatible with Orbit's Simple Support Bracket System, Fixed Mounting Brackets (FMB) and Flat Bracket Family for between stud applications - Order preassembled with SSB-T5 bracket as SSB-T5B-200 - Suitable brackets allow the T5B to use a 4" ring, reducing material costs Cover, Reducer and Partitions available here T5B-200 Side KO Spec updated September 2023 |
||
Dimensions: | ||
Width | 5" | |
Height | 5" | |
Depth | 3 - 1/4" | |
Cu In | 71.8 | |
Specifications: | ||
Material | 16 GA Sheet Steel | |
Mfg. Process | Welded | |
KO Sides | (4) 1/2" to 1-1/4" C.K.O.'s (2) 1" to 2" C.K.O.'s |
|
KO Bottom | (1) 1/2" & 3/4" M.K.O.'s, (1) 3/4" & 1" M.K.O.'s (1) 1/2" K.O.'s, (2) Ground Screws |
|
Packaging Info: | ||
Std Pkg | 10 | |
Certifications: | ||
UL File Number: | ||
E227970 |
